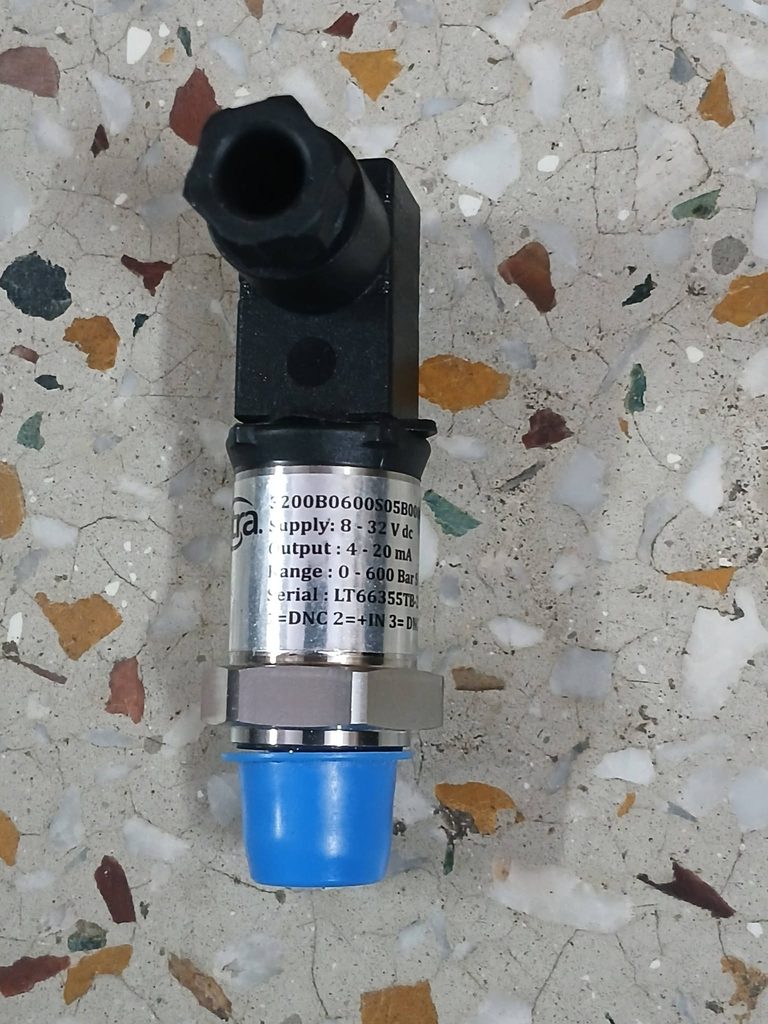

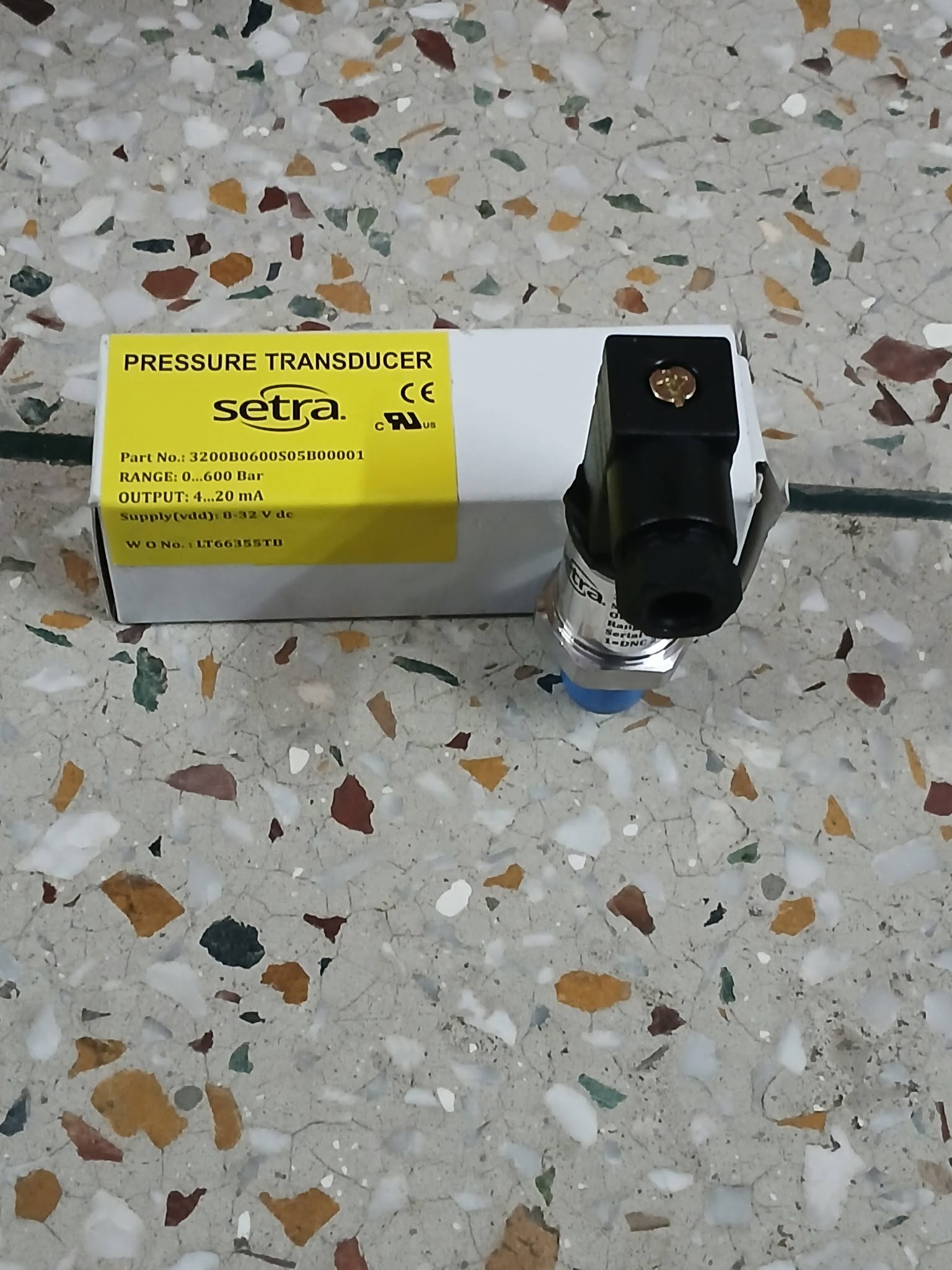

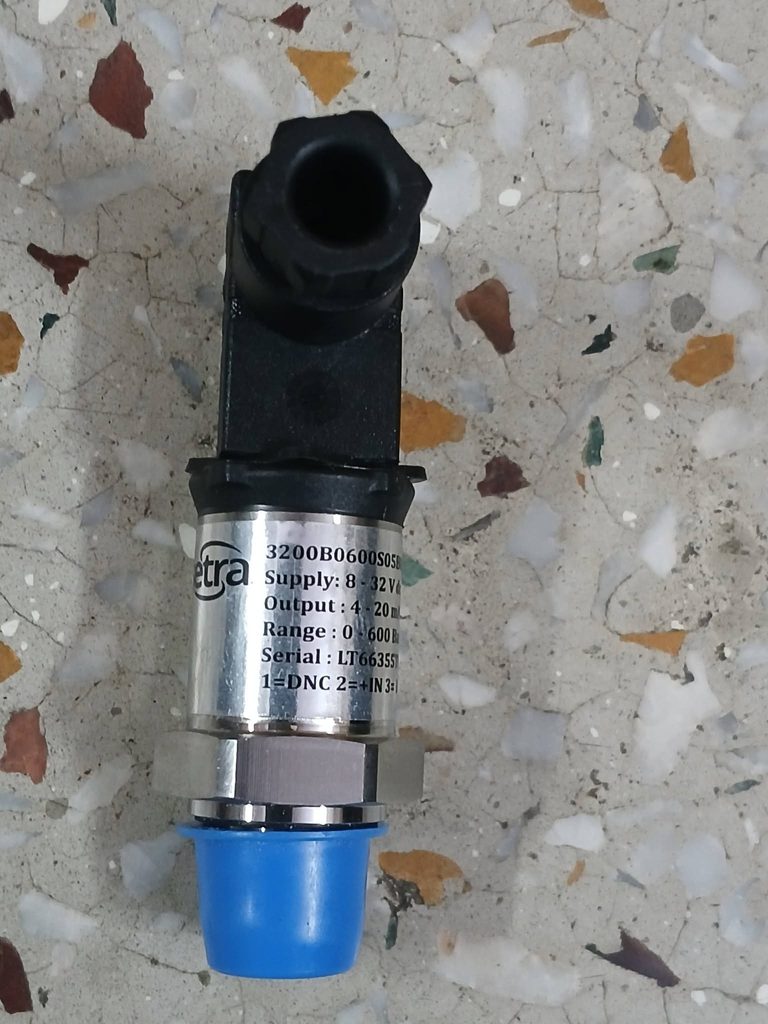

3100 and 3200 Setra Pressure Transducers
The 3100/3200 Series High-Pressure OEM Transducers Feature a Sputtered Thin-Film Sensor To Provide High Levels of Performance and Stability For Large Volume OEM Installations.A Wide Choice Of Outputs As Well as Electrical And Pressure Connections Means That The Unit is Suitable For Most Applications Without Modification.In Addition,The Compact Construction Of The 3100/3200 Series Makes It Ideal For Installations Where Space Is At a Premium.The Model 3200 Features a Thicker Diaphragm And a Restrictor Optional To Handle Environments Where Extreme Positive Or Negative Pressure Spikes Are a Concern.Proof Pressures On The Model 3200 Are 3x Full Scale On 50 PSI Up to 10,000 PSI Pressure Ranges.
Available Models
SETRA 3100 Series – Model & Technical Data
| Part Number | Pressure Range | Output | Supply Voltage | Pressure Connection |
|---|---|---|---|---|
| 3100S0010G02B | 0–10 Bar | 4–20 mA | 8–30 VDC | 1/4-18 PT Ext. DIN Connector |
| 3100S0007G02B | 0–7 Bar | 4–20 mA | 8–30 VDC | 1/4-18 PT Ext. DIN Connector |
| 3100B0007G02B | 0–7 Bar | 4–20 mA | 8–30 VDC | 1/4-18 PT Ext. DIN Connector |
| 3100B0010C02B | 0–10 Bar | 4–20 mA* | 8–30 VDC* | 1/4-18 PT Ext. Connector |
| 3100B0010G01B | 0–10 Bar | 4–20 mA | 8–30 VDC | G 1/4 Ext. Connector |
| 3100B0010G02B | 0–10 Bar | 4–20 mA | 8–30 VDC | 1/4-18 PT Ext. Connector |
| 3100B0016C02B | 0–16 Bar | 4–20 mA* | 8–30 VDC* | 1/4-18 PT Ext. Connector |
| 3100B0016G01B | 0–16 Bar | 4–20 mA | 8–30 VDC | G 1/4 Ext. Connector |
| 3100B0016G02B | 0–16 Bar | 4–20 mA | 8–30 VDC | 1/4-18 PT Ext. Connector |
| 3100B0018G1GB | Verify | Verify | Verify | Verify |
| 3100B0020G01B | 0–20 Bar | 4–20 mA | 8–30 VDC | G 1/4 Ext. Connector |
| 3100B0030G01B | 0–30 Bar | 4–20 mA* | 8–30 VDC* | G 1/4 Ext. Connector |
| 3100B0035C02B | 0–35 Bar | 4–20 mA* | 8–30 VDC* | 1/4-18 PT Ext. Connector |
| 3100B0035G02E | 0–35 Bar | 4–20 mA* | 8–30 VDC* | 1/4-18 PT Ext. Connector |
| 3100B0040G01B | 0–40 Bar | 4–20 mA | 8–30 VDC | G 1/4 Ext. Connector |
| 3100B0050G01B | 0–50 Bar | 4–20 mA* | 8–30 VDC* | G 1/4 Ext. Connector |
| 3100B0060G01B | 0–60 Bar | 4–20 mA* | 8–30 VDC* | G 1/4 Ext. Connector |
| 3100B0070G02B | 0–70 Bar | 4–20 mA | 8–30 VDC | 1/4-18 PT Ext. Connector |
| 3100B0160S01B | 0–160 Bar | 4–20 mA | 8–30 VDC | G 1/4 Ext. Connector |
| 3100B0200S01B | 0–200 Bar | 4–20 mA | 8–30 VDC | G 1/4 Ext. Connector |
| 3100B0250S02B | 0–250 Bar | 4–20 mA* | 8–30 VDC* | 1/4-18 PT Ext. Connector |
| 3100B0300S01B | 0–300 Bar | 4–20 mA | 8–30 VDC | G 1/4 Ext. Connector |
| 3100B0350S01B | 0–350 Bar | Verify | Verify | G 1/4 Ext. Connector |
| 3100B0400S01B | 0–400 Bar | 4–20 mA* | 8–30 VDC* | G 1/4 Ext. Connector |
| 3100B0600S01B | 0–600 Bar | Verify | Verify | G 1/4 Ext. Connector |
| 3100B0700S01B | 0–700 Bar | 4–20 mA* | 8–30 VDC* | G 1/4 Ext. Connector |
| 3100B1800S2TB | 0–1800 Bar | Verify | Verify | Verify |
| 3100R0060G08B | 0–60 Bar* | Verify | Verify | Verify |
| 3100T200PG1G9 | 0–200 PSI | 4–20 mA* | 8–30 VDC* | Pressure Fitting and Electrical Connector |
| 3100T500PG1G9 | 0–500 PSI | 4–20 mA* | 8–30 VDC* | Pressure Fitting and Electrical Connector |
