Category: Galaxy Differential Pressure Gauge Wholesale India

Galaxy Differential Pressure Gauge Wholesale India

GALAXY D5 Mini Digital Differential Pressure Gauge



MaterialABS
Display Type5 bits
BrandGalaxy
Weight220 g
Medium Temperature0-60degC
Protection Type65
Process Connection5 mm
Output0-10 V

Applications and features:
  • Apply high accuracy MEMS sensor and digital technologies, can measure positive, negative or differential pressure. It can completely replace the traditional pointer mechanical gauges
  • It can measure fan and blower pressures, filter resistance,air
  • velocity,pressure drop across orifice plates, differential pressure of medical pharmaceutical machine, biological safety cabinets, clean bench,etc.
  • It could be flush, surface or wall mount.
  • Accuracy is up to +-1% FS,with large LCD display.
  • Function keys zero reset, units select, display update time, automatic sleep time, alarm,etc.

Specifications:

  • Medium: Non-combustible, non-corrosive air, insensitive to moisture, dust, condensation and oil
  • Working Temp. D5-10~50 DegreeCD5P/G/T-20~70 DegreeC Medium Temp. 0~60 DegreeC
  • Temp. Compensation0~50 DegreeC
  • Working Pressure overload 10xFS, burst 15xFS
  • Display 5 bits LCD, with engineering unit, with backlight
  • (except D5)
  • Output 0-10V / 4-20mA(3 wires)
  • Output load 500(current), 2K(voltage)
  • Digital Output RS485/Modbus(9600-n-8-1)
  • Relay Output 2xSPST, 1A/30VDC, 0.5A/125VAC
  • Accuracy up to +-1.0%FS, see accuracy table
  • Long term stability +-0.5%FS /Year
  • Thermal effect <0.05%FS/ DegreeC(zero), <0.08%FS/ DegreeC(FS)
  • Battery type (D5)
  • Power AA battery x 4, recommend LR6 alkaline
  • Display update time selectable for 0.5/1/5/10s (default 1s)
  • Automatic sleep time selectable for normal open (NO), or 1/5/10min (default 1min)
  • Battery service life when display update time=1s and automatic sleep time=NO,2 year. When displaytime>1s or automatic sleep time1min, will be longer. It also depends on the quality of the batteries.
  • Power type (D5P/D5G/D5T) 15~28VDC/AC
  • Process Connection 5mm ID tubing, two pairs (left/back)
  • Keys 3 touch buttons
  • Protection IP65
  • Weight 220g (battery type incl. batteries), 180g(power type)
  • Materials ABS
  • Approval CE
  • Accessory A-S0 is standard. It can be used for surface or panel mount. See details in Accessories.


Galaxy D5 Mini Digital Differential Pressure Gauge



MaterialABS
BrandGalaxy
Weight220 g
ProtectionIP 65
Process Connection5 mm
Power BatteryAA batteryx4
Output0-10 V


Applications and features:

  • Apply high accuracy MEMS sensor and digital technologies, can measure positive, negative or differential pressure. It can completely replace the traditional pointer mechanical gauges
  • It can measure fan and blower pressures, filter resistance,air velocity,pressure drop across orifice plates, differential pressure of medical pharmaceutical machine, biological safety cabinets, clean bench,etc.
  • It could be flush, surface or wall mount.
  • Accuracy is up to +-1% FS,with large LCD display.
  • Function keys zero reset, units select, display update time, automatic sleep time, alarm,etc.


Specifications:

  • MediumNon-combustible, non-corrosive air, insensitive to moisture, dust, condensation and oil Working Temp. D5-10~50 DegreeCD5P/G/T-20~70 DegreeC Medium Temp. 0~60 DegreeC
  • Temp. Compensation0~50 DegreeC
  • Working Pressure overload 10xFS, burst 15xFS
  • Display 5 bits LCD, with engineering unit, with backlight
  • (except D5)
  • Output 0-10V / 4-20mA(3 wires)
  • Output load 500(current), 2K(voltage)
  • Digital Output RS485/Modbus(9600-n-8-1)
  • Relay Output 2xSPST, 1A/30VDC, 0.5A/125VAC
  • Accuracy up to +-1.0%FS, see accuracy table
  • Long term stability +-0.5%FS /Year
  • Thermal effect <0.05%FS/ DegreeC(zero), <0.08%FS/ DegreeC(FS)
  • Battery type (D5)
  • Power AA battery x 4, recommend LR6 alkaline
  • Display update time selectable for 0.5/1/5/10s (default 1s)
  • Automatic sleep time selectable for normal open (NO), or
  • 1/5/10min (default 1min)
  • Battery service life when display update time=1s and automatic sleep time=NO,2 year. When displaytime>1s or automatic sleep time1min, will be longer. It also depends on the quality of the batteries.
  • Power type (D5P/D5G/D5T) 15~28VDC/AC
  • Process Connection 5mm ID tubing, two pairs (left/back)
  • Keys 3 touch buttons
  • Protection IP65
  • Weight 220g (battery type incl. batteries), 180g(power type)
  • Materials ABS
  • Approval CE
  • Accessory A-S0 is standard. It can be used for surface or panel mount. See details in Accessories

Galaxy Make Magnehelic Gauge



Minimum Order Quantity12 Number
Dial Size4 inch / 100 mm
BrandGalaxy
UseHVAC Systems
Display TypeAnalog
Pressure TypeDifferential Pressure
Connection TypeNPT
Connection Size1/8 inch
Warranty2 years
Pressure Limit-20 hg


Our specialization lies in offering a commendable range of Galaxy Make Magnehelic Gauge Series 2000. Manufactured with utmost care and precision at our vendors’ end using superb quality components, our offered product is highly acclaimed in the market. After being manufactured, the offered product is properly tested on defined parameters. Clients can avail the entire range from us in various Technical Specifications at industry leading prices.

Features:

  • Compact size
  • Accuracy
  • Easy installation

Galaxy DPGT Digital Differential Pressure Transmitter


Minimum Order Quantity12 Number
Product Weight340 g
Protection TypeIP65
Response Time0.5-30 ms
BrandGalaxy
Display4 bit 0.8″ red Led
Analog Output0-10 V
Power15-28 V

Specifications:

  • MediumNon -combusti ble, non-corr osiv e air, not
  • sensitiv e to moisture, du st, condens ation and o il
  • Medium Temp.:0-60°C
  • Materialsc ast alumi num housi ng a nd PC plate
  • W ork En vi ronment: -20~+ 85°C
  • Compensate d Temp.: 0-50°C
  • W ork pressu re: 1, 2 or 5 Kpa for differ ent rang e
  • Dimensionsee di agram
  • Connection:  1/8”  ID  tubi ng,  t wo  pa ir s  (on  left  si de and b ack)
  • Displa y: 4 bi ts 0.8” red LED
  • An alog output: 0-10V & 4-20mA (3 wires)
  • Output Load: ≤500??? (curr ent), ≥2K??? (voltage)
  • Digital output: RS485-M odb us RT U (960 0-n-8- 1) Relay output: 2×SPST ,1A/30VDC,0.5A/125VAC Accuracy: ±1.0%FS*, opt ional ±0.5%FS
  • Long term stability: ±0.5%FS /Year
  • Thermal effect: < 0.05%F S/°C
  • Response time: 0.5-3 0s
  • Pow er: 15-28V AC/DC
  • Ke y: 3 touc h buttons
  • ProtectionIP65
  • Weight340 g

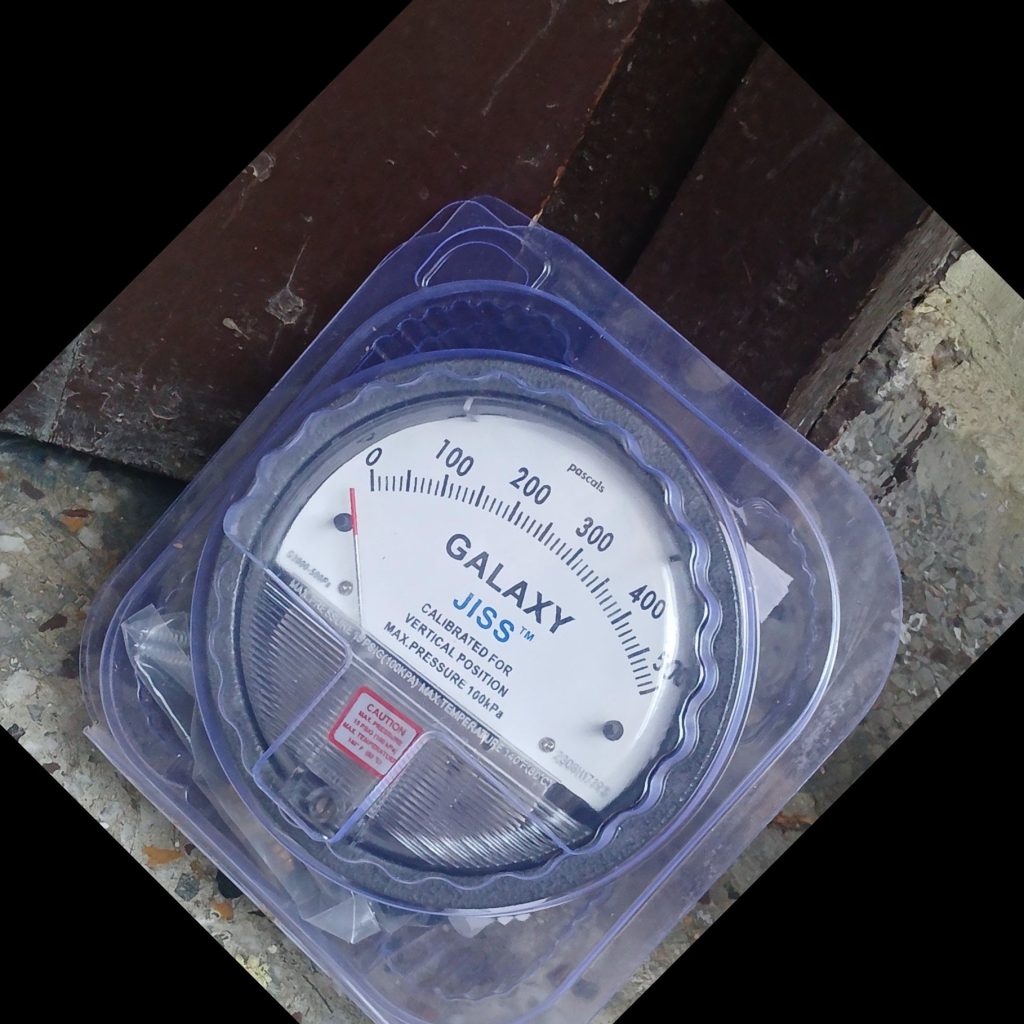

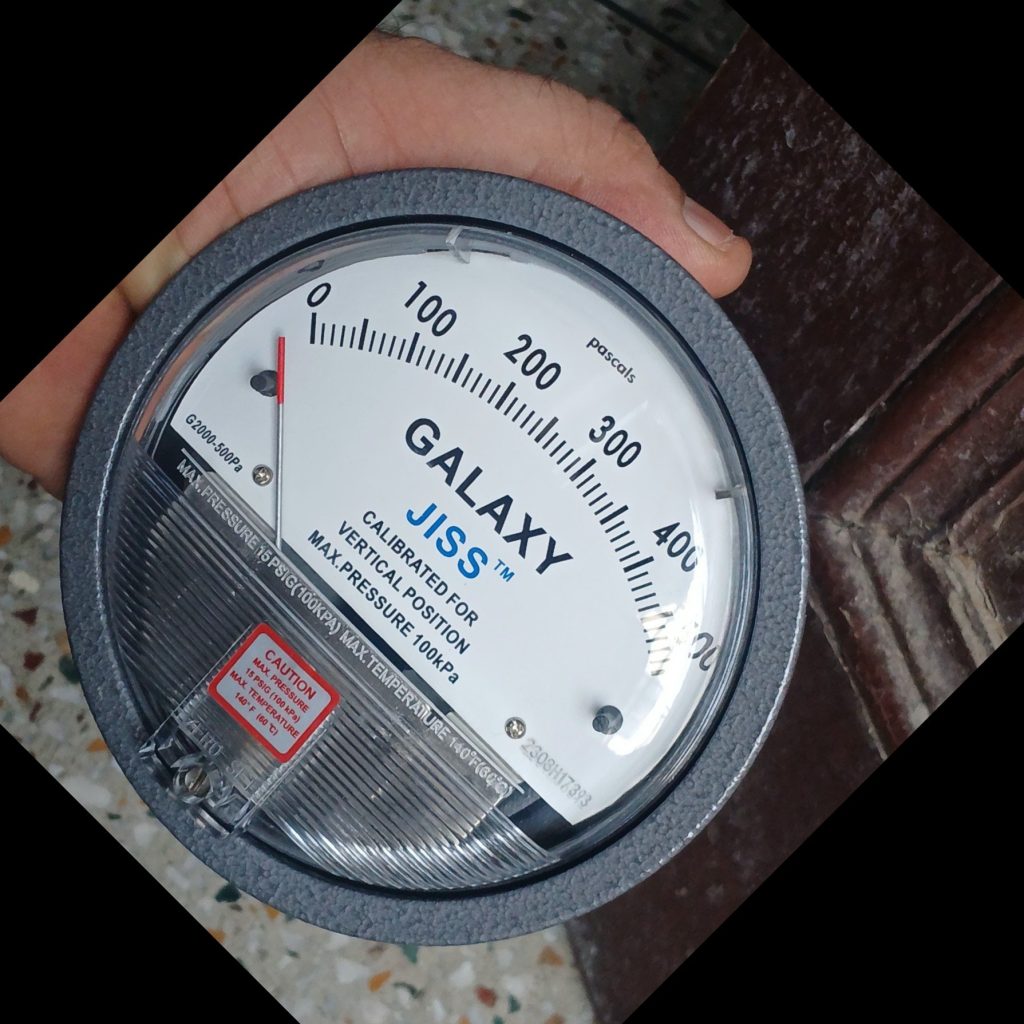

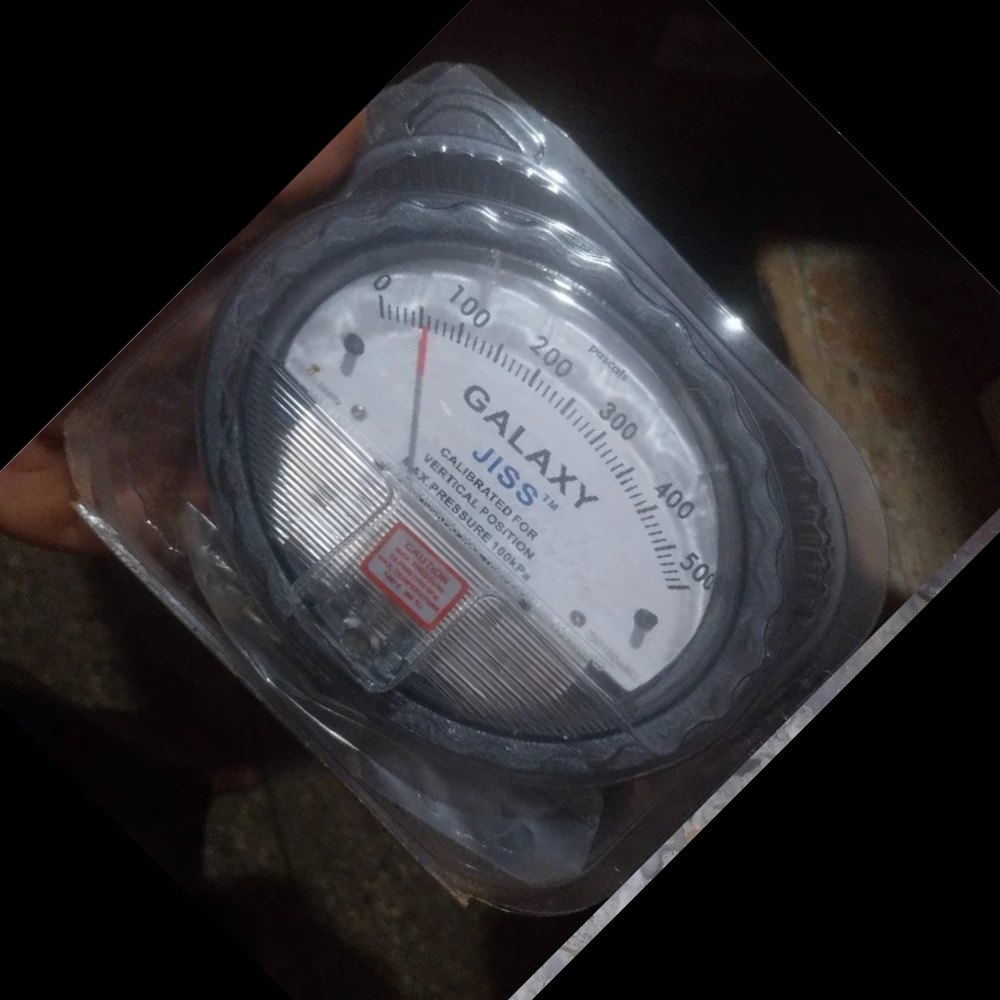

Galaxy Differential Pressure Gauge



Minimum Order Quantity12 Number
Accuracy+/-2%
Weight510 g
Housing MaterialDie cast Aluminium case
Warranty2 years
Pressure Limit-20″ hg
Process Connection1/8″

We are leading supplier and trader of Low Cost Galaxy Differential Pressure Gauge. Kindly find below product details of Low Cost Galaxy Differential Pressure Gauge.

Pressure Range Model Number Pressure Range:
  • 0 – 0.25” S2000-60PA 0 – 60
  • 0 – 0.5” S2000-125PA 0 – 125
  • 0 – 1” S2000-250PA 0 – 250
  • 0 – 2” S2000-500PA 0 – 500
  • 0 – 3” S2000-750PA 0 – 750
  • 0 – 4” S2000-1KPA 0 – 1
  • 0 – 5” S2000-1.5KPA 0 – 1.5
  • 0 – 6” S2000-2KPA 0 – 2

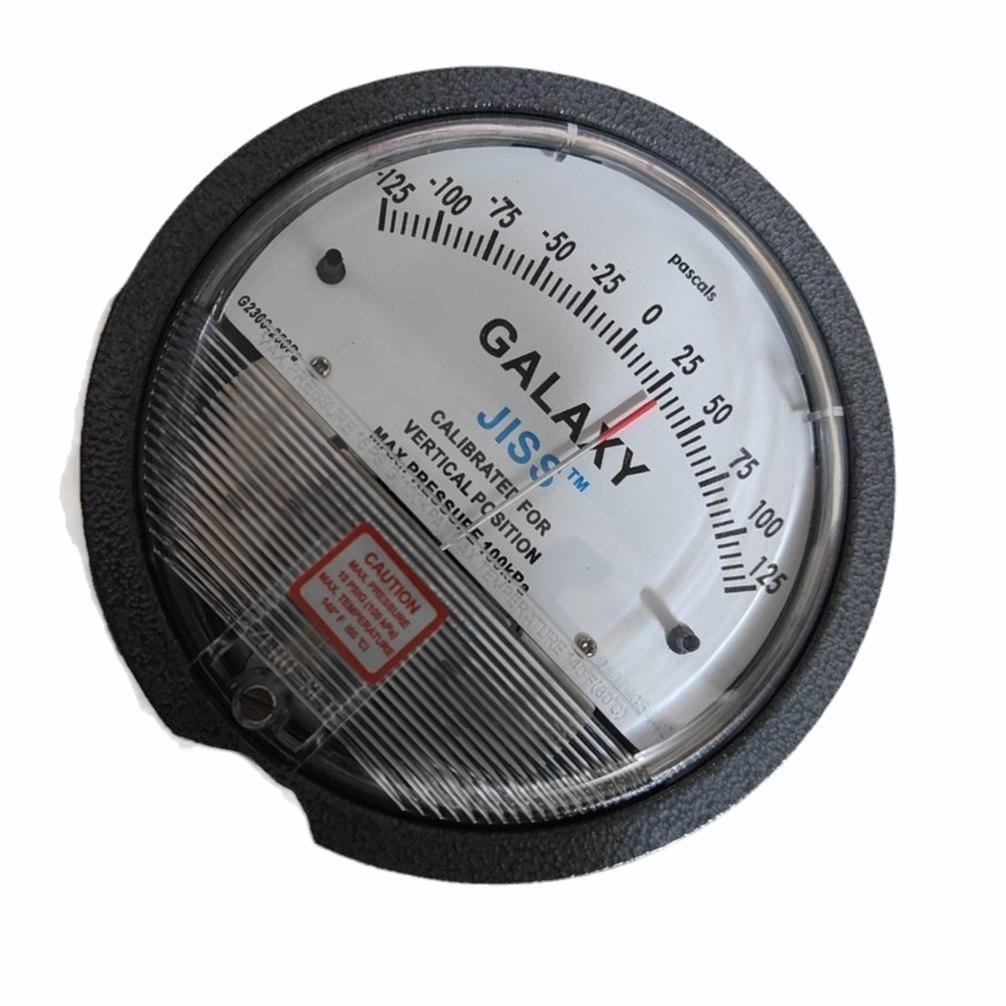

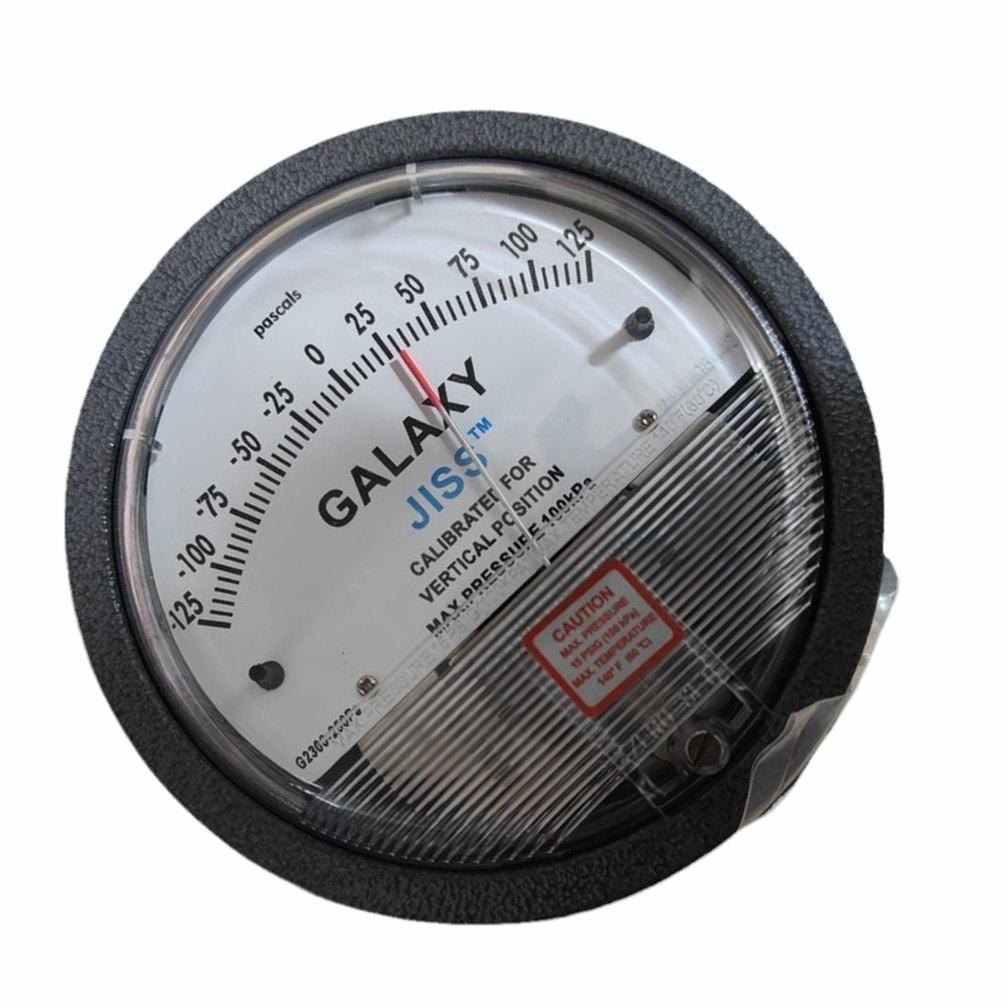

  • 0 – 8” Zero Center
  • 0 – 10” S2300-60PA 30 – 0 – 30
  • 0 – 15” S2300-120PA 60 – 0 – 60
  • 0 – 20” S2300-250PA 125 – 0 – 125
  • 0 – 25” mm w.c.
  • 0 – 30” S2000-6MM 0 – 6
  • 0 – 50” S2000-10MM 0 – 10
  • 0 – 100” S2000-25MM 0 – 25


Galaxy Model G2000-6MM Magnehelic Gauge Range 0-6 MM



ShapeRound
Size100 MM
Accuracy+/-2%
FeaturesMonitoring Blood
Weight510 g
Usage/ApplicationFilter Resistance
BrandGalaxy
Housing MaterialDie cast Aluminium
Pressure Limit-20″ hg
Temperature Range20deg to 140degF
Process Connection1/8″

The Series G2000 differential pressure gauges are low-cost, diaphragm operated, mechanical pressure gauges,

Series G2000 are for measuring fan and blower pressures, filter resistance, furnace draft, pressure drop across orifice plates, monitoring blood and respiratory pressures in medical care equipment With simple, frictionless movement parts,It can quickly indicate low air or non-corrosive gas pressures, either positive, negative or differential It can resist shock, vibration and over-pressures.

Techinical specifaction:
  • Pressure Limits: –20″ Fig to 15 PSI (-0.677 bar to 1.034 bar)
  • Media Compatibility: Air and compatible gasses
  • Accuracy: +1- 2% full scale (+/- 3% an -0 and +/-4% on -00) throughout range at 70°F (21 °C)
  • Temperature Ranges: 20° to 140°F (-7° to 60°C)
  • Housing Material: Die cast aluminum case and bezel (ABS for P2000), with acrylic cover
  • Process Connection: 1/8″ female NPT duplicate high and low pressure taps – one pair side and one pair back.
  • Weight: 1 lb 2 oz (510 g)
  • Accessories: Two 1/8′ NPT barbed frftings,two 1/8″ NPT plugs, and three mounting tabs and screws
  • Warranty: 2 years Approvals: Roi-IS, CE


Galaxy Magnehelic Gauge Model G2000-25MM Range 0-25 MM WC



Model NumberG2000-25MM
Usage/ApplicationAir and compatible gasses
Accuracy1- 2% full scale (+/- 3% an -0 and +/-4% on -00) throughout range at 70 DegreeF (21 DegreeC)
Weight510 g
BrandGalaxy
Thread SizeTwo 1/8′ NPT
Pressure Limits-20″ Fig to 15 PSI (-0.677 bar to 1.034 bar)
Temperature Ranges20 Degree to 140 DegreeF (-7 Degree to 60 DegreeC)


The Series G2000 differential pressure gauges are low-cost, diaphragm operated, mechanical pressure gauges,

Series G2000 are for measuring fan and blower pressures, filter resistance, furnace draft, pressure drop across orifice plates, monitoring blood and respiratory pressures in medical care equipment With simple, frictionless movement parts,It can quickly indicate low air or non-corrosive gas pressures, either positive, negative or differential It can resist shock, vibration and over-pressures.

Techinical specifaction:

  • Pressure Limits: –20″ Fig to 15 PSI (-0.677 bar to 1.034 bar)
  • Media Compatibility: Air and compatible gasses
  • Accuracy: +1- 2% full scale (+/- 3% an -0 and +/-4% on -00) throughout range at 70°F (21 °C)
  • Temperature Ranges: 20° to 140°F (-7° to 60°C)
  • Housing Material: Die cast aluminum case and bezel (ABS for P2000), with acrylic cover
  • Process Connection: 1/8″ female NPT duplicate high and low pressure taps – one pair side and one pair back.
  • Weight: 1 lb 2 oz (510 g)
  • Accessories: Two 1/8′ NPT barbed frftings,two 1/8″ NPT plugs, and three mounting tabs and screws
  • Warranty: 2 years Approvals: Roi-IS, CE

Highly Precise Digital Manometer Keller Lex1



Model Name/NumberKeller Lex1
Size23.5 x 7.0 x 3.0 cm
Precision0,05 %FS
Battery Life2000 hours continuous operation
Pressure ConnectionG1/4″
Power Battery2 X AA Batteries
Product Weight300 g
ProtectionIP65

LEX 1 is a micro-processor controlled, accurate and versatile digital pressure measuring instrument with integrated Max.-/Min.-function for calibration and testing purposes. The pressure is measured twice per second and displayed. The top display indicates the actual pressure, the bottom display shows the Max.- or Min.-pressure since the last RESET LEX 1 has two operating keys. The left key is to turn the instrument on, to select the functions and the pressure units. The right key executes the selected function resp. unit or serves to display the Max.- and Min.-value


Galaxy Model G2000-60PA Magnehelic Gauge Range 0-60 PA



Model NumberG2000-60PA
Usage/ApplicationBlower pressures
Accuracy+1- 2% full scale (+/- 3% an -0 and +/-4% on -00) throughout range at 70 DegreeF (21 DegreeC)
Weight1 lb 2 oz (510 g)
BrandGalaxy
Housing MaterialDie cast aluminum case and bezel (ABS for P2000), with acrylic cover
Pressure Limits-20″ Fig to 15 PSI (-0.677 bar to 1.034 bar)
Temperature Ranges20 Degree to 140 DegreeF (-7 Degree to 60 DegreeC)
Process Connection1/8″

The Series G2000 differential pressure gauges are low-cost, diaphragm operated, mechanical pressure gauges,
Series G2000 are for measuring fan and blower pressures, filter resistance, furnace draft, pressure drop across orifice plates, monitoring blood and respiratory pressures in medical care equipment With simple, frictionless movement parts,It can quickly indicate low air or non-corrosive gas pressures, either positive, negative or differential It can resist shock, vibration and over-pressures.

Techinical specifaction:
  • Pressure Limits: –20″ Fig to 15 PSI (-0.677 bar to 1.034 bar)
  • Media Compatibility: Air and compatible gasses
  • Accuracy: +1- 2% full scale (+/- 3% an -0 and +/-4% on -00) throughout range at 70°F (21 °C)
  • Temperature Ranges: 20° to 140°F (-7° to 60°C)
  • Housing Material: Die cast aluminum case and bezel (ABS for P2000), with acrylic cover
  • Process Connection: 1/8″ female NPT duplicate high and low pressure taps – one pair side and one pair back.
  • Weight: 1 lb 2 oz (510 g)
  • Accessories: Two 1/8′ NPT barbed frftings,two 1/8″ NPT plugs, and three mounting tabs and screws
  • Warranty: 2 years Approvals: Roi-IS, CE


Galaxy Magnehelic Gauge Model G2000-50MM Range 0-50 MM WC



Model NumberG2000-50MM
Usage/ApplicationAir and Compatible Gasses
Measuring Range0-50 MM WC
ColorBlack
Weight510 g
Dial Size100 MM
MaterialAluminium
BrandGalaxy


The Series G2000 differential pressure gauges are low-cost, diaphragm operated, mechanical pressure gauges,

Series G2000 are for measuring fan and blower pressures, filter resistance, furnace draft, pressure drop across orifice plates, monitoring blood and respiratory pressures in medical care equipment With simple, frictionless movement parts,It can quickly indicate low air or non-corrosive gas pressures, either positive, negative or differential It can resist shock, vibration and over-pressures.

Techinical specifaction:

  • Pressure Limits: –20″ Fig to 15 PSI (-0.677 bar to 1.034 bar)
  • Media Compatibility: Air and compatible gasses
  • Accuracy: +1- 2% full scale (+/- 3% an -0 and +/-4% on -00) throughout range at 70°F (21 °C)
  • Temperature Ranges: 20° to 140°F (-7° to 60°C)
  • Housing Material: Die cast aluminum case and bezel (ABS for P2000), with acrylic cover
  • Process Connection: 1/8″ female NPT duplicate high and low pressure taps – one pair side and one pair back.
  • Weight: 1 lb 2 oz (510 g)
  • Accessories: Two 1/8′ NPT barbed frftings,two 1/8″ NPT plugs, and three mounting tabs and screws
  • Warranty: 2 years Approvals: Roi-IS, CE

Galaxy Magnehelic Gauge Model G2000-10MM Range 0-10 MM



Usage/ApplicationPressure Drop Across Orifice Plates
Accuracy+1- 2% full scale (+/- 3% an -0 and +/-4% on -00) throughout range at 70 DegreeF (21 DegreeC)
Diameter100 mm
Weight510 g
BrandGalaxy
Pressure Limits-20″ Fig to 15 PSI (-0.677 bar to 1.034 bar)
Temperature Ranges20 Degree to 140 DegreeF (-7 Degree to 60 DegreeC)
Process Connection1/8″ female NPT duplicate high and low pressure taps – one pair side and one pair back.

The Series G2000 differential pressure gauges are low-cost, diaphragm operated, mechanical pressure gauges,

Series G2000 are for measuring fan and blower pressures, filter resistance, furnace draft, pressure drop across orifice plates, monitoring blood and respiratory pressures in medical care equipment With simple, frictionless movement parts,It can quickly indicate low air or non-corrosive gas pressures, either positive, negative or differential It can resist shock, vibration and over-pressures.

Techinical specifaction:
  • Pressure Limits: –20″ Fig to 15 PSI (-0.677 bar to 1.034 bar)
  • Media Compatibility: Air and compatible gasses
  • Accuracy: +1- 2% full scale (+/- 3% an -0 and +/-4% on -00) throughout range at 70°F (21 °C)
  • Temperature Ranges: 20° to 140°F (-7° to 60°C)
  • Housing Material: Die cast aluminum case and bezel (ABS for P2000), with acrylic cover
  • Process Connection: 1/8″ female NPT duplicate high and low pressure taps – one pair side and one pair back.
  • Weight: 1 lb 2 oz (510 g)
  • Accessories: Two 1/8′ NPT barbed frftings,two 1/8″ NPT plugs, and three mounting tabs and screws
  • Warranty: 2 years Approvals: Roi-IS, CE


Digital Manometer Keller Leo2



Measuring Range0-700 BAR
ConnectionG 1/4 inch
Accuracy0.05% of FS
Resolution1 mBar
Model Name/NumberLeo2
BrandKeller
Weight125 g

LEO 2 is a compact, micro-processor (ìP) controlled, highly accurate and versatile pressure measuring instrument with digital indication. The piezoresistive pressure transducer as the heart of the instrument has gone through extensive pressure- and temperature tests. Its characteristics are stored in the instruments internal EEPROM. The ìP of the LEO 2 reads the characteristic values and calculates therefrom the pressure to an accuracy of < 0,1 %FS at room temperature.

The pressure is measured twice per second and displayed. The top display indicates the actual pressure, the bottom display shows the Max.- or Min.- pressure since the last RESET.

LEO 2 has two operating keys. The left key is to turn the instrument on, to select the functions and the pressure units. The right key executes the selected function or unit. The right key is also used to switch between the Max.- and Min.-value.


Galaxy Magnehelic Gauge Model G2000-100MM Range 0-100 MM WC



Usage/ApplicationAir and Compatible Gasses
BrandGalaxy
Accuracy+1- 2% full scale (+/- 3% an -0 and +/-4% on -00) throughout range at 70 DegreeF (21 DegreeC)
Weight510 g
Housing MaterialDie cast aluminum case and bezel (ABS for P2000), with acrylic cover
Pressure Limits-20″ Fig to 15 PSI (-0.677 bar to 1.034 bar)
Temperature Ranges20 Degree to 140 DegreeF (-7 Degree to 60 DegreeC)
Process Connection1/8″ female NPT duplicate high and low pressure taps – one pair side and one pair back.

The Series G2000 Differential Pressure Gauges are low-cost, diaphragm operated, mechanical pressure gauges,

Series G2000 are for measuring fan and blower pressures, filter resistance, furnace draft, pressure drop across orifice plates, monitoring blood and respiratory pressures in medical care equipment With simple, frictionless movement parts,It can quickly indicate low air or non-corrosive gas pressures, either positive, negative or differential It can resist shock, vibration and over-pressures.

Technical specification:
  • Pressure Limits: –20″ Fig to 15 PSI (-0.677 bar to 1.034 bar)
  • Media Compatibility: Air and compatible gasses
  • Accuracy: +1- 2% full scale (+/- 3% an -0 and +/-4% on -00) throughout range at 70°F (21 °C)
  • Temperature Ranges: 20° to 140°F (-7° to 60°C)
  • Housing Material: Die cast aluminum case and bezel (ABS for P2000), with acrylic cover
  • Process Connection: 1/8″ female NPT duplicate high and low pressure taps – one pair side and one pair back.
  • Weight: 1 lb 2 oz (510 g)
  • Accessories: Two 1/8′ NPT barbed frftings,two 1/8″ NPT plugs, and three mounting tabs and screws
  • Warranty: 2 years Approvals: Roi-IS, CE


Galaxy Magnehelic Gauge Model G2000-250MM Range 0-250 MM WC



Measuring RangeAir and compatible gasses
BrandGalaxy
Accuracy+1- 2% full scale (+/- 3% an -0 and +/-4% on -00) throughout range at 70 DegreeF (21 DegreeC)
Weight510 g
Housing MaterialDie cast aluminum case and bezel (ABS for P2000), with acrylic cover
Process Connection1/8″ female NPT duplicate high and low pressure taps – one pair side and one pair back.
Temperature Ranges20 Degree to 140 DegreeF (-7 Degree to 60 DegreeC)


The Series G2000 differential pressure gauges are low-cost, diaphragm operated, mechanical pressure gauges,

Series G2000 are for measuring fan and blower pressures, filter resistance, furnace draft, pressure drop across orifice plates, monitoring blood and respiratory pressures in medical care equipment With simple, frictionless movement parts,It can quickly indicate low air or non-corrosive gas pressures, either positive, negative or differential It can resist shock, vibration and over-pressures.

Techinical specifaction:

  • Pressure Limits: –20″ Fig to 15 PSI (-0.677 bar to 1.034 bar)
  • Media Compatibility: Air and compatible gasses
  • Accuracy: +1- 2% full scale (+/- 3% an -0 and +/-4% on -00) throughout range at 70°F (21 °C)
  • Temperature Ranges: 20° to 140°F (-7° to 60°C)
  • Housing Material: Die cast aluminum case and bezel (ABS for P2000), with acrylic cover
  • Process Connection: 1/8″ female NPT duplicate high and low pressure taps – one pair side and one pair back.
  • Weight: 1 lb 2 oz (510 g)
  • Accessories: Two 1/8′ NPT barbed frftings,two 1/8″ NPT plugs, and three mounting tabs and screws
  • Warranty: 2 years Approvals: Roi-IS, CE

Low Cost Galaxy Differential Pressure Gauge



Usage/ApplicationAir and Compatible Gasses
BrandGalaxy
Accuracy+1- 2% full scale (+/- 3% an -0 and +/-4% on -00) throughout range at 70 DegreeF (21 DegreeC)
Weight1 lb 2 oz (510 g)
Housing MaterialDie cast aluminum case and bezel (ABS for P2000), with acrylic cover
Pressure Limits-20″ Fig to 15 PSI (-0.677 bar to 1.034 bar)
Temperature Ranges20 Degree to 140 DegreeF (-7 Degree to 60 DegreeC)

The Series G2000 differential pressure gauges are low-cost, diaphragm operated, mechanical pressure gauges,

Series G2000 are for measuring fan and blower pressures, filter resistance, furnace draft, pressure drop across orifice plates, monitoring blood and respiratory pressures in medical care equipment With simple, frictionless movement parts,It can quickly indicate low air or non-corrosive gas pressures, either positive, negative or differential It can resist shock, vibration and over-pressures.

Techinical specifaction:
  • Pressure Limits: –20″ Fig to 15 PSI (-0.677 bar to 1.034 bar)
  • Media Compatibility: Air and compatible gasses
  • Accuracy: +1- 2% full scale (+/- 3% an -0 and +/-4% on -00) throughout range at 70°F (21 °C)
  • Temperature Ranges: 20° to 140°F (-7° to 60°C)
  • Housing Material: Die cast aluminum case and bezel (ABS for P2000), with acrylic cover
  • Process Connection: 1/8″ female NPT duplicate high and low pressure taps – one pair side and one pair back.
  • Weight: 1 lb 2 oz (510 g)
  • Accessories: Two 1/8′ NPT barbed frftings,two 1/8″ NPT plugs, and three mounting tabs and screws


Galaxy Mack Digital Pressure Gauge



BrandGalaxy
Accuracy0.5%FS
Sampling Frequency5/sec
Overpressure150%FS
Supply Battery2 Triple A batteries
Compensated Temp.0~60degC
Operating Temp.-10~70degC


PCM580 is a high-precision intelligent digital pressure gauge. It has a high-precision sensor and displays pressure accurately in real time. It has advantages of high precision and good long term stability. PCM580 is equipped with a large size LCD, featuring with functions of zero clearing, backlight, on/off button, units switching and low pressure alarm. It is convenient to install and easy to operate. The housing and connector of PCM580 are made of stainless steel 304 with excellent vibration resistance. It can be used to measure gas, liquid, oil and other non-corrosive medium of stainless steel.

PCM580 is applicable to portable pressure measurement and equipment supporting and calibration fields.

Galaxy Digital Display Pressure Transmitter 0-10 bar



Model NumberPCM300(WTR01)
Accuracy0.5%F.S
Product Weight180g approx.
Protection TypeIP65
Output Type4 to 20mA
BrandGalaxy
Pressure Range100 kPa
Storage Temp.-40degC -125degC

PCM300(WTR01) industrial pressure transmitter is a standard andpopular transmitter applied in air and liquid pressure measuring. A highsensitivity silicon pressure chip is employed in the sensor. Themost important specification for industry application is long termstability. The PCM300(WTR01) pressure transmitter is designed forIndustry Applicationwith perfect long term stability.

Specifications:
  • Pressure Range – -100kpa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa,10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa
  • Pressure Reference – Gauge pressure | Absolute pressure | Sealed gauge pressure
  • Overpressure – 300%F.S.(≤70kPa) | 200%F.S.(???25MPa) | 150%F.S.(≥25MPa)
  • Output – 4 to 20mA | 0.5 to 4.5V | 1 to 5V | 0 to 5V
  • Accuracy (linearity,repeatability and hysteresis) – ±0.5%F.S. (Typical)
  • Supply – 24VDC | 12VDC | 5VDC
  • Compensated Temp. – -10ºC -70ºC | -20ºC -85ºC
  • Operating Temp. – -40ºC -125???
  • Storage Temp. – -40ºC -125???
  • Zero Temp. Coefficient – ±1.5%F.S.max. (@-20ºC -85ºC)
  • Span Temp. Coefficient – ±1.5%F.S.max. (@-20ºC -85ºC)
  • Pressure Connection – See ”how to order”
  • Protection – IP65
  • Housing Material – Stainless steel 304 (316L for sensor inside)
  • Housing Diameter – φ26.5 mm
  • Long-Term Stability – ≤0.2%F.S./year
  • Weight – 180g(approx.)


Galaxy Magnehelic Gauge



Minimum Order Quantity12 Number
BrandGalaxy
Accuracy+/-2%
Weight510 g
Housing MaterialDie Cast Aluminium
Warranty2 years
Pressure Limit-20″ hg
Temperature Range20deg to 140degF

Having vast experience in the relevant industry, we are engaged in providing a broad assortment of Galaxy Magnehelic Gauge that is assemble in order to meet specific demands of customers. Moreover, a series of quality tests is performed on offered gauge to ensure a defect free delivery at client’s end. Clients can avail the offered range from us at market leading prices within stipulated time frame.

Features:
  • Accuracy
  • High functionality
  • Long service life

Specifications:
  • We provide Galaxy magnehelic gauge of series which is low in cost, diaphragm operated and differential pressure gauge
  • Owing to these features these are used in applications for measuring positive, negative, or differential pressure with an accuracy of 2%
  • Besides, these are also applied for monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors, cabinet purging and many others
  • We offer Galaxy magnehelic differential pressure gauges which run on air and non-combustible compatible gases and are offered with the option of natural gas
  • In addition to this, these housing are fabricated by using die cast aluminum case and bezel, with acrylic cover
  • These have exterior finish with grey color to withstand 168 hour salt spray corrosion test

Technical Specifications:
  • Accuracy: ±2% of full scale (±3% on – 0, -100 Pa, -125 Pa, 10MM and ±4% on – 00, -60 Pa, -6MM ranges), throughout range at 70°F (21.1°C)
  • Pressure Limits: -20 Hg. to 15 psig.† (-0.677 bar to 1.034 bar); MP option
  • HP option: 35 psig (2.41 bar), 80 psig (5.52 bar)
  • Over pressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only
  • Temperature Limits: 20 to 140°F.* (-6.67 to 60°C)
  • Size: 4 (101.6 mm) Diameter dial face
  • Mounting Orientation: Diaphragm in vertical position, Consult factory for
  • Process Connections: 1/8 female NPT duplicate high and low pressure taps one pair side and one pair back
  • Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g)
  • Other position orientations

Applications:
  • Filter Status
  • Duct Static Pressure
  • Clean Room Pressure
  • Building Pressure
  • Fan and Blower Pressure
  • Paint Booths
  • Dust Collectors
  • Glove Box Pressure
  • Bubbler Systems
  • Cabinet Purging


Rh And Temp Logger



Dimensions89mm x 36mmx 16mm
Accuracy+-3%RH
Resolution0.1%RH typically 0.1 DegreeC
Measurement RangeHumidity 0%~100%RH, Temp -30 DegreeC ~ 60 DegreeC
Memory Capacity32,000
Record Interval10 seconds to 18 hours adjustable [Default:10 mins]

The Device is Mainly Used to Monitor the Temperature and Humidity Data of Food, Medicine, Chemical Products and Other Products During Storage and Transportation. It is Widely Used in All Links of Warehousing and logistics Cold-Chain, such as Reefer Containers, refrigerated trucks, Refrigerated Distribution Boxes, Cold Storage Laboratory,…

Galaxy Multi-Use PDF TEMP & RH Data Logger is the perfect Tool for Cold-Chain Monitoring Anddocumentation of Temperature and Relative Humidity Conditions That are Critical in Laboratories, Pharmaceutical,Medical, Storage, Freezers, Coolers, Shipping Containers, Warehouses, Environmental Monitoring and Food Storage Applications..

Features:
  • Designed to be Multi-Use
  • Temperature & Humidity Measurement and Recording
  • Statistics available on LCD Screen
  • No Software Needed to Export Data
  • Automatically Generates PDF Report and CSV File
  • Reprogrammable Software For Logging Parameters, Alarms, And Start Delay

Specifications:
  • Temperature Scale – °C or °F
  • Accuracy – ±3%RH; ±0.5°C (-20°C ~ +40°C), ±1.0°C(Other Range)
  • Measurement Range – Humidity 0%~100%RH, Temp -30°C ~ 60 °C
  • Resolution – 0.1%RH Typically 0.1°CM
  • Memory Capacity – 32,000
  • Recording Options Delayed or Push-To-Start Logging
  • Record Interval – 10 seconds to 18 hours adjustable [Default:10 Mins]
  • Start Delay – Start Delay Programmable (0 ~ 254 mins) [Default: 30 Mins]
  • Alarm Delay – Programmable (0 ~ 960 mins) [Default: 10 mins]
  • Alarm Range – Programmable High or Low Alarm Limit For Each Channel
  • [Default: <2°C or >8°C, <40%RH or >80%RH]
  • Shelf Life / Battery – Typically 1 Year; CR2032 3.0V Lithium Battery (Depending on Sampling Rate and Environment)
  • Report Generation – Simultaneously Generate PDF Report and CSV File
  • Communication Interface – USB2.0
  • Time Zone – UTC +0:00 (Default)
  • Dimensions – 89 MM X 36 MM X 16 MM
  • N.W. – 25g


Multiuse PDF Temp And Rh Data Logger



Dimensions89mm x 36mmx 16mm
Weight25g
Start DelayStart Delay Programmable (0 ~ 254 mins) [Default: 30 mins]
Communication InterfaceUSB2.0
Alarm DelayProgrammable (0 ~ 960 mins) [Default: 10 mins]
Record Interval10 seconds to 18 hours adjustable [Default:10 mins]
Memory Capacity32,000


The Device is Mainly Used to Monitor the Temperature and Humidity Data of Food, Medicine, Chemical Products and Other Products During Storage and Transportation. It is Widely Used in All Links of Warehousing and logistics Cold-Chain, such as Reefer Containers, refrigerated trucks, Refrigerated Distribution Boxes, Cold Storage Laboratory,…

Galaxy Multi-Use PDF TEMP & RH Data Logger is the perfect Tool for Cold-Chain Monitoring Anddocumentation of Temperature and Relative Humidity Conditions That are Critical in Laboratories, Pharmaceutical,Medical, Storage, Freezers, Coolers, Shipping Containers, Warehouses, Environmental Monitoring and Food Storage Applications..

Features:

  • Designed to be Multi-Use
  • Temperature & Humidity Measurement and Recording
  • Statistics available on LCD Screen
  • No Software Needed to Export Data
  • Automatically Generates PDF Report and CSV File
  • Reprogrammable Software For Logging Parameters, Alarms, And Start Delay


Specifications:

  • Temperature Scale – °C or °F
  • Accuracy – ±3%RH; ±0.5°C (-20°C ~ +40°C), ±1.0°C(Other Range)
  • Measurement Range – Humidity 0%~100%RH, Temp -30°C ~ 60 °C
  • Resolution – 0.1%RH Typically 0.1°CM
  • Memory Capacity – 32,000
  • Recording Options Delayed or Push-To-Start Logging
  • Record Interval – 10 seconds to 18 hours adjustable [Default:10 Mins]
  • Start Delay – Start Delay Programmable (0 ~ 254 mins) [Default: 30 Mins]
  • Alarm Delay – Programmable (0 ~ 960 mins) [Default: 10 mins]
  • Alarm Range – Programmable High or Low Alarm Limit For Each Channel
  • [Default: <2°C or >8°C, <40%RH or >80%RH]
  • Shelf Life / Battery – Typically 1 Year; CR2032 3.0V Lithium Battery (Depending on Sampling Rate and Environment)
  • Report Generation – Simultaneously Generate PDF Report and CSV File
  • Communication Interface – USB2.0
  • Time Zone – UTC +0:00 (Default)
  • Dimensions – 89 MM X 36 MM X 16 MM
  • N.W. – 25g

Head Mounted Temperature Transmitters



Minimum Order Quantity12 Number
Model NumberPCT380
BrandGalaxy
Power Supply12-40 VDC
Response TimeLess than 1 s
Operating Temp-40degC-85degC
Ingress Protection4g-2, 50 Hz
Digital CommunicationHart protocol
Signal Output4-20mA | 1-5V(customized)

Function:
  • Can Convert all inputs to 4-20 mA
  •  Input: Thermocouples, RTD, Resistance Or Voltage
  •  Configuration Directly Via PDA or PC
  •  Build-in Cold Junction Compensation
  •  Available With Screw-in Temperature Probe
PCT380 is a Head Mount Temperature Transmitter With a Single Input. The Single Input Accepts Thermocouples, RTD, Resistance Or Voltage Source. All Inputs Are linearized And Converted in to an Industrial Standard 4 to 20 mA output for Transmission to Your System.
