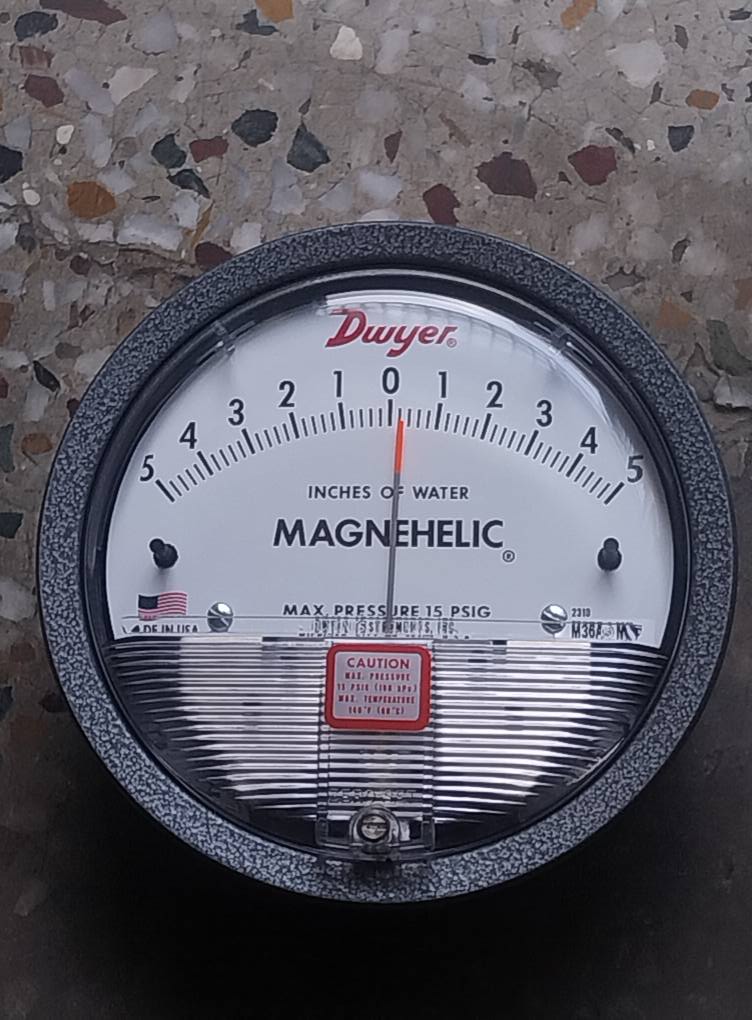

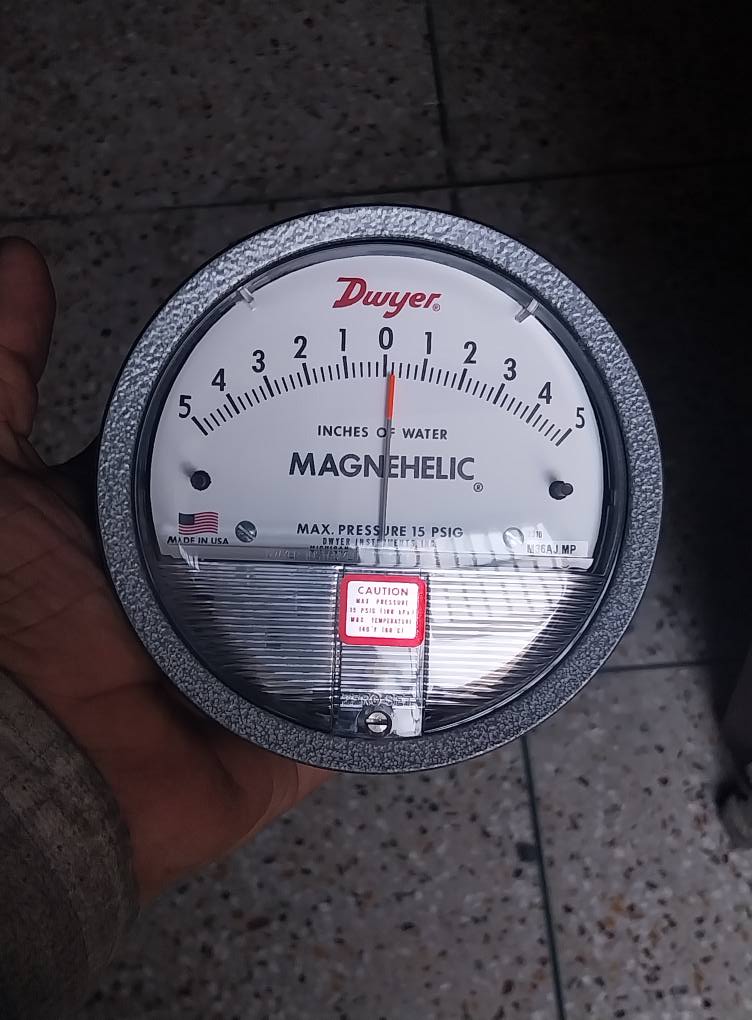

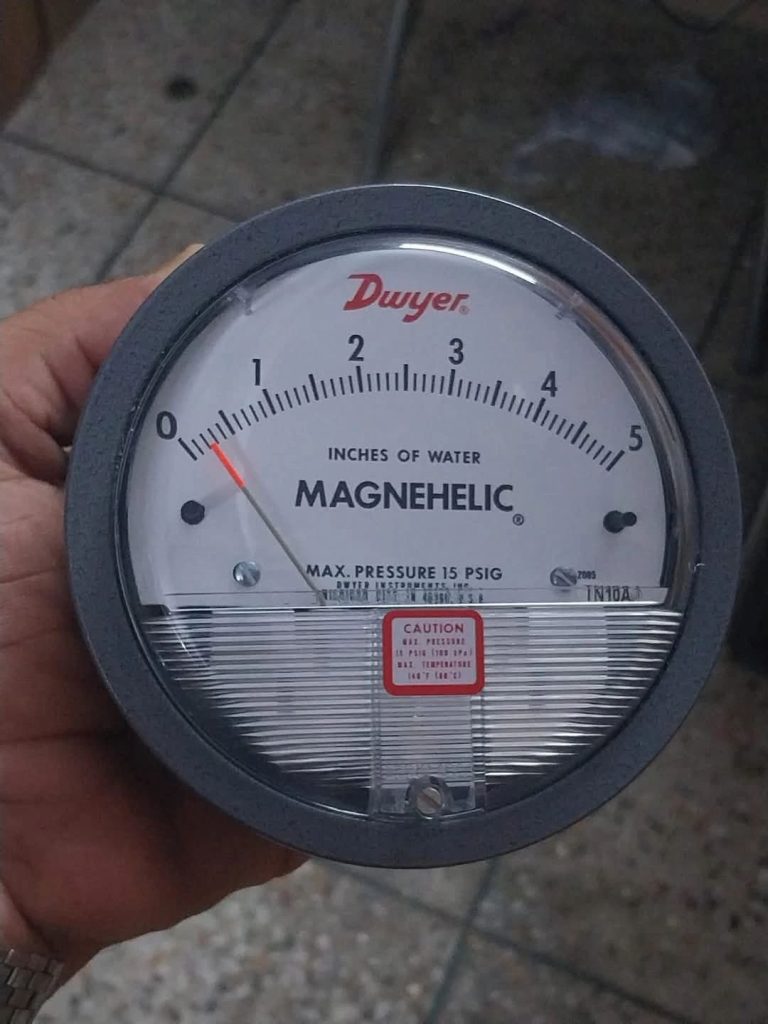

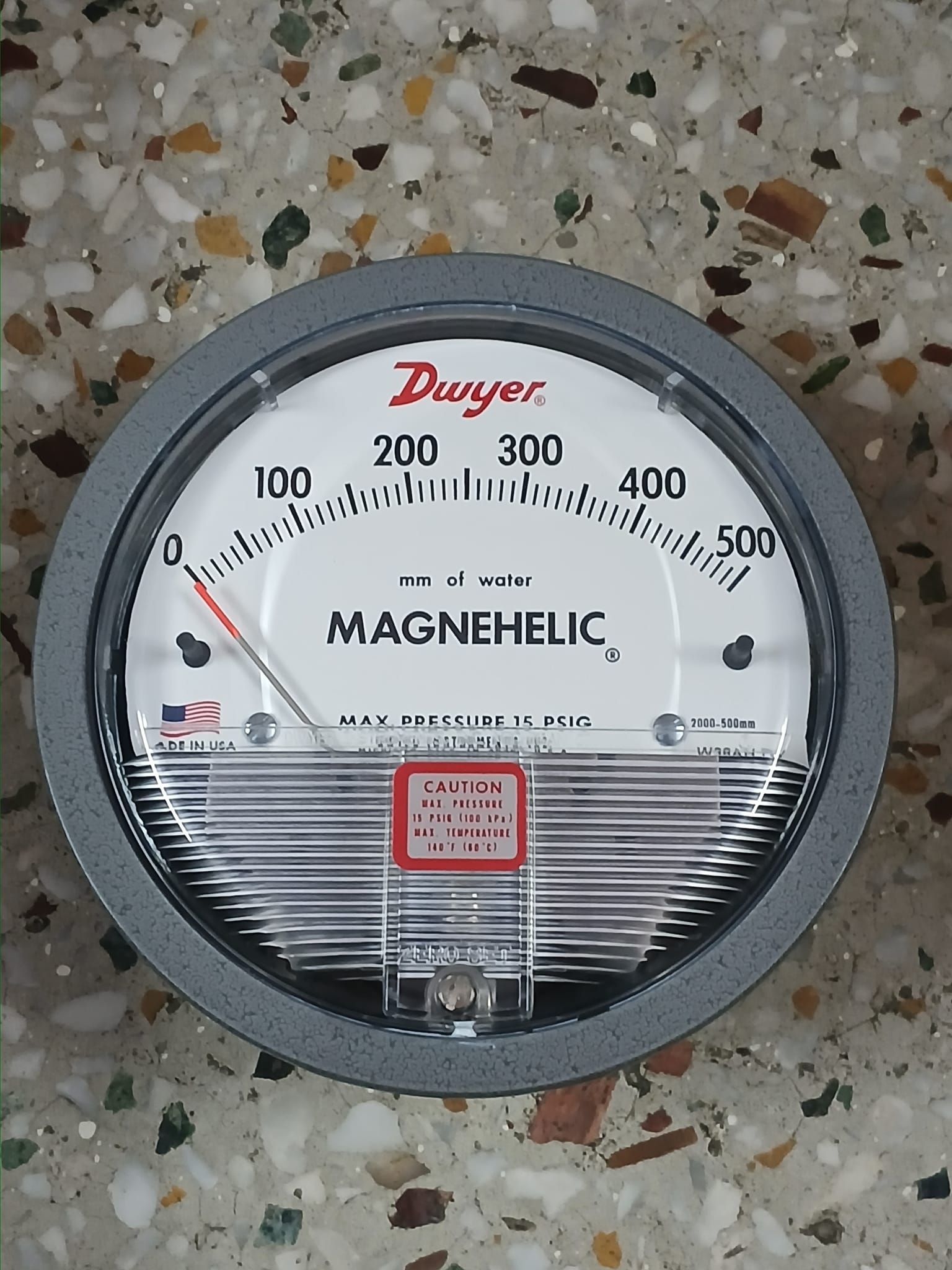

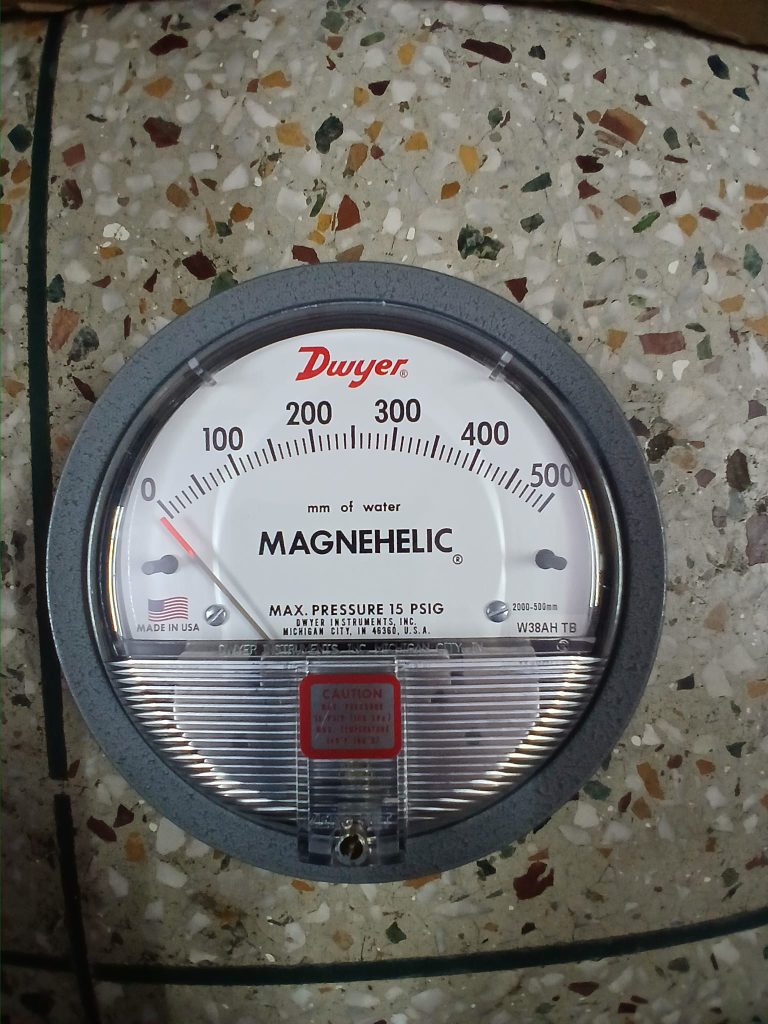

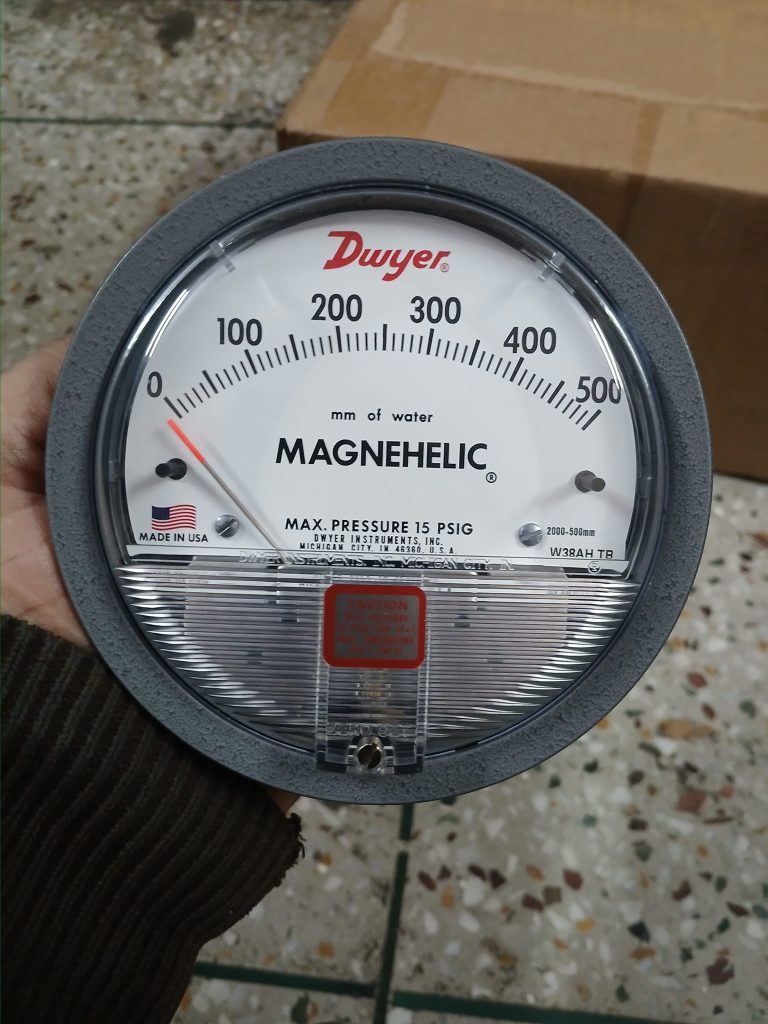

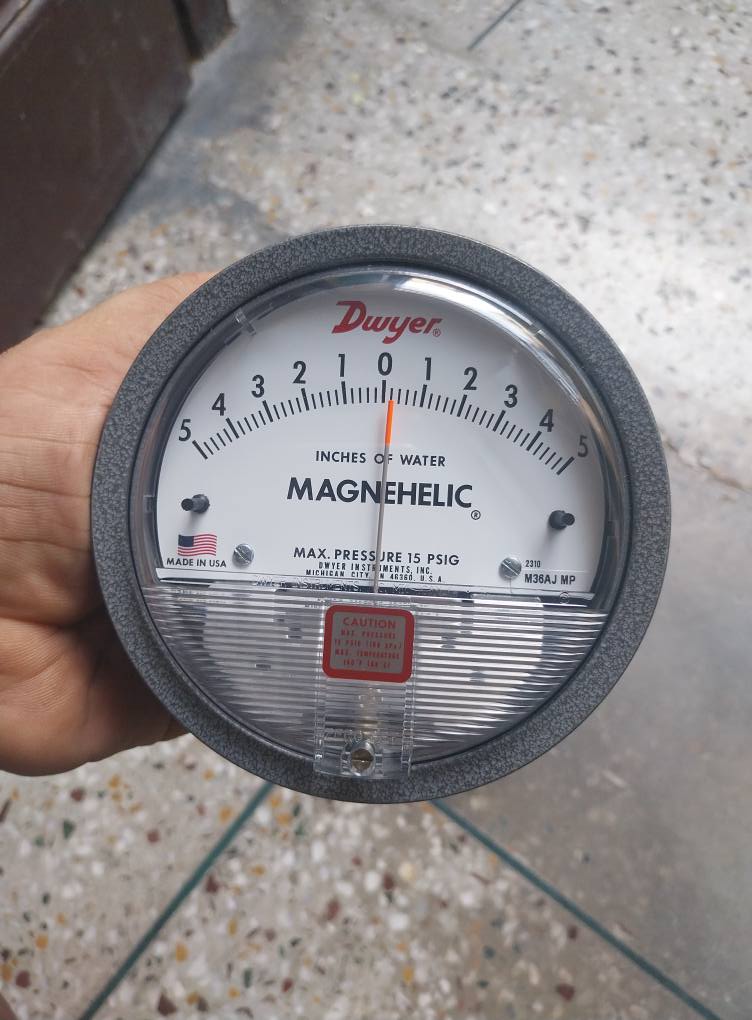

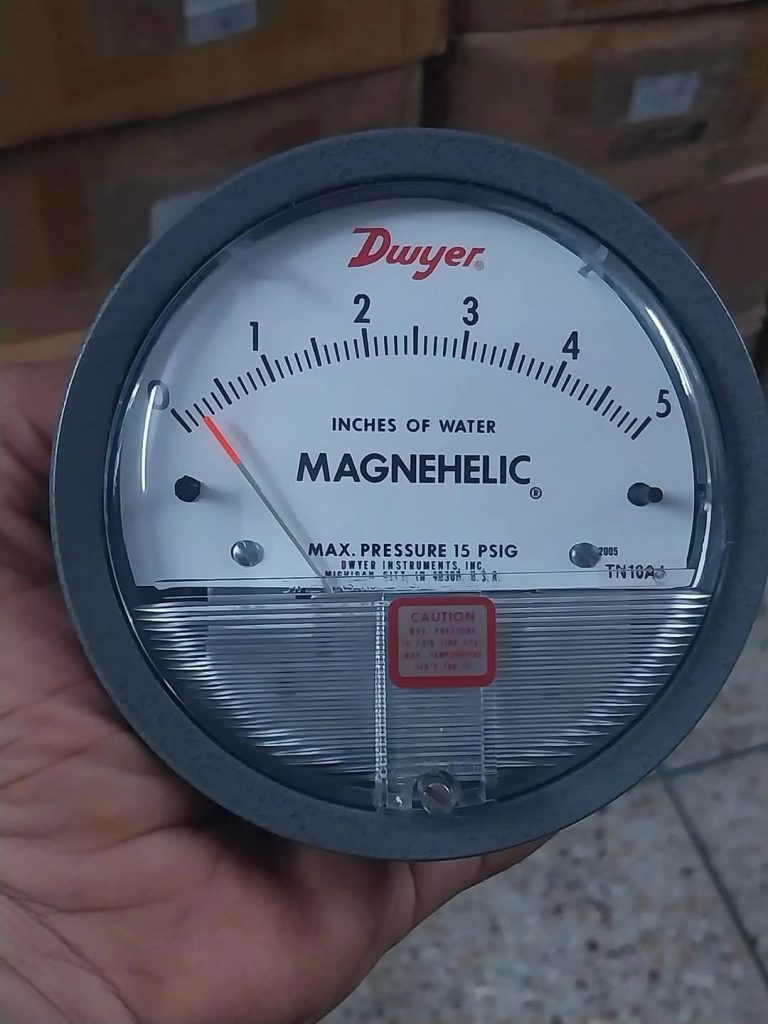

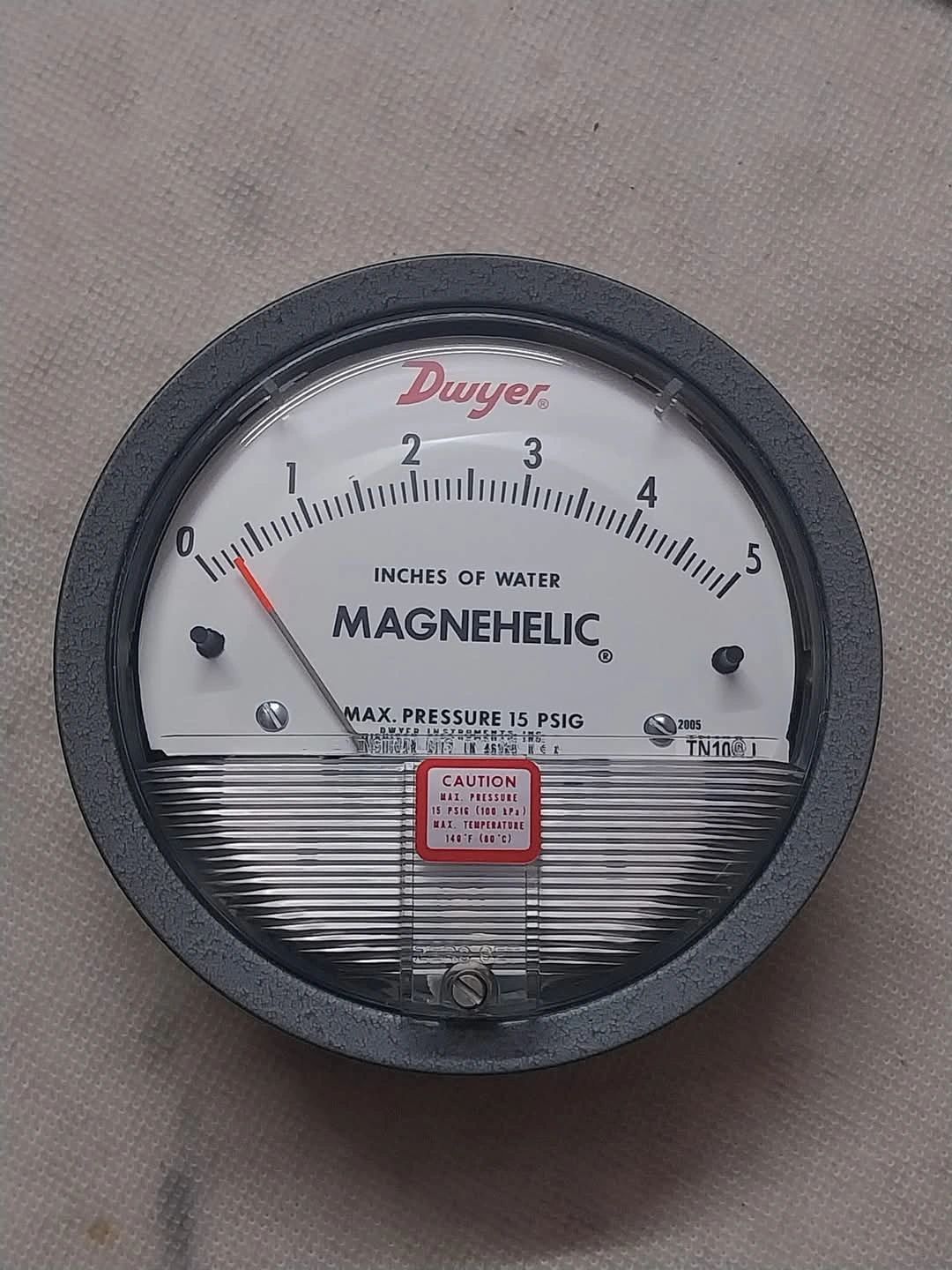

SERIES 2000 MAGNEHELIC® DIFFERENTIAL PRESSURE GAGES Indicate Positive, Negative or Differential, Accurate within 1%
- No Power Required
- Low Cost
- Used in Isolation/ Hospital Environments and Temporary Units (no power required)
Select the Series 2000 Magnehelic® Gage for a versatile low Differential Pressure Gage With a Wide Choice of 81 Models And 27 options to Choose From. Using Dwyer’s Simple,Frictionless Magnehelic® Gage movement, it quickly indicates air or noncorrosive gas pressures–either positive, negative (vacuum) or Differential.The design resists shock,Vibration, over-pressures and is weatherproof to IP67. Select the -HA High Accuracy Magnehelic® Gage option for an accuracy within 1% of full scale, located below in the Product Configurator.Also included with the–HA option at no extra cost are a mirrored scale overlay and a 6 point calibration certificate.
NIST CALIBRATION available in Product Configurator.
Note: May be used with Hydrogen. Order a Buna-N diaphragm. Pressures must be less than 35 psi.
Please see Series AT-2000 for ATEX approved.
California Residents: Click Here for Proposition 65 WARNING.
PRODUCT APPLICATIONS
- Filter Monitoring
- Air Velocity with Dwyer Pitot Tube
- Blower Vacuum Monitoring
- Fan Pressure Indication
- Duct, Room or Building Pressures
- Clean Room Positive Pressure Indication
| Model | Description |
|---|---|
| 2000-1.5KPA | MAGNEHELIC Differential Pressure Gage, Range 0-1.5 kPa, minor divisions .05. |
| 2000-10KPA | MAGNEHELIC Differential Pressure Gage, Range 0-10 kPa, minor divisions .20. |
| 2000-15KPA | MAGNEHELIC Differential Pressure Gage, Range 0-15 kPa, minor divisions .50. |
| 2000-1KPA | MAGNEHELIC Differential Pressure Gage, Range 0-1 kPa, minor divisions .02. |
| 2000-20KPA | MAGNEHELIC Differential Pressure Gage, Range 0-20 kPa, minor divisions .50. |
| 2000-25KPA | MAGNEHELIC Differential Pressure Gage, Range 0-25 kPa, minor divisions .50. |
| 2000-2KPA | MAGNEHELIC Differential Pressure Gage, Range 0-2 kPa, minor divisions .05. |
| 2000-30KPA | MAGNEHELIC Differential Pressure Gage, Range 0-30 kPa, minor divisions 1.0. |
| 2000-3KPA | MAGNEHELIC Differential Pressure Gage, Range 0-3 kPa, minor divisions .10. |
| 2000-4KPA | MAGNEHELIC Differential Pressure Gage, Range 0-4 kPa, minor divisions .10. |
| 2000-5KPA | MAGNEHELIC Differential Pressure Gage, Range 0-5 kPa, minor divisions .10. |
| 2000-8KPA | MAGNEHELIC Differential Pressure Gage, Range 0-8 kPa, minor divisions .20. |
| 2300-1KPA | MAGNEHELIC Differential Pressure Gage, Range 0.5-0-0.5 kPa, minor divisions .02. |
| 2300-3KPA | MAGNEHELIC Differential Pressure Gage, Range 1.5-0-1.5 kPa, minor divisions .10. |
