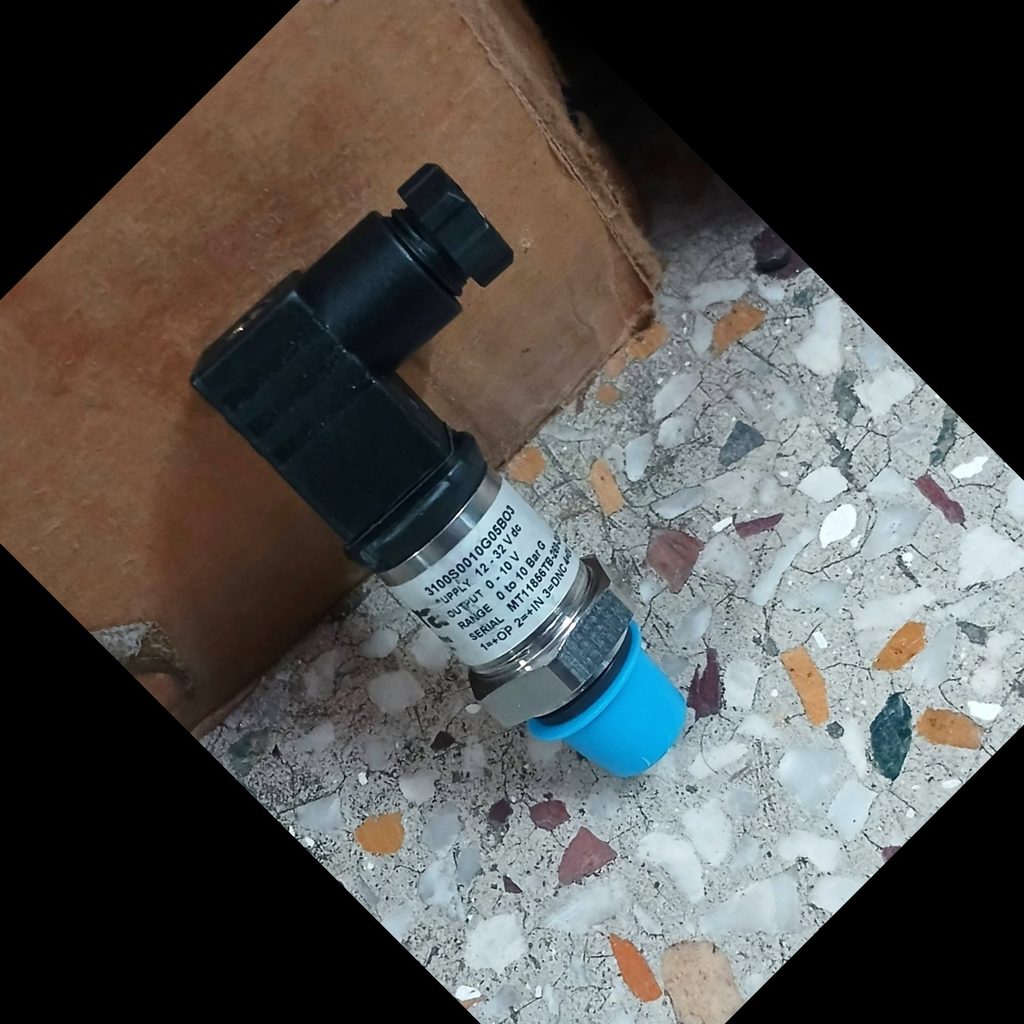

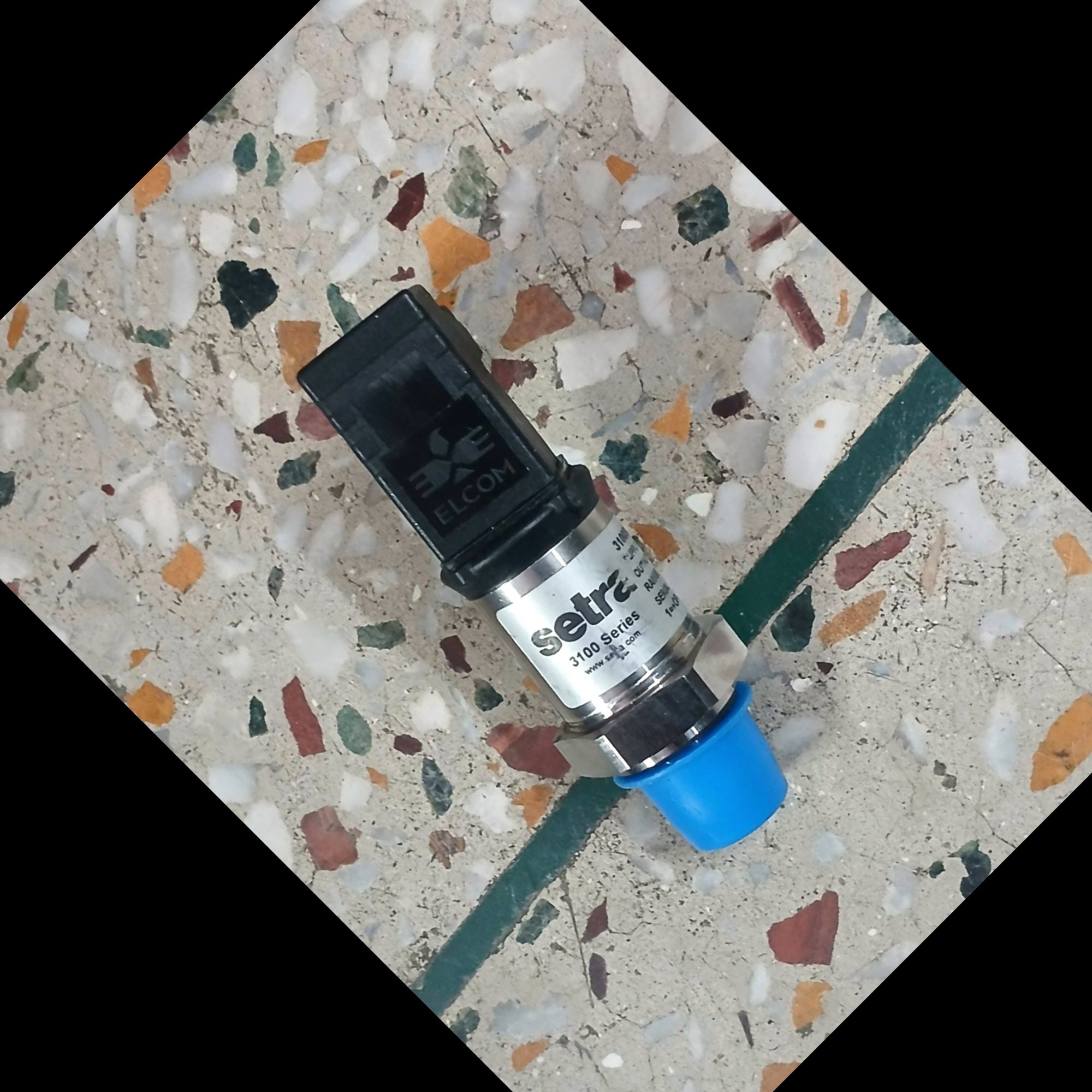

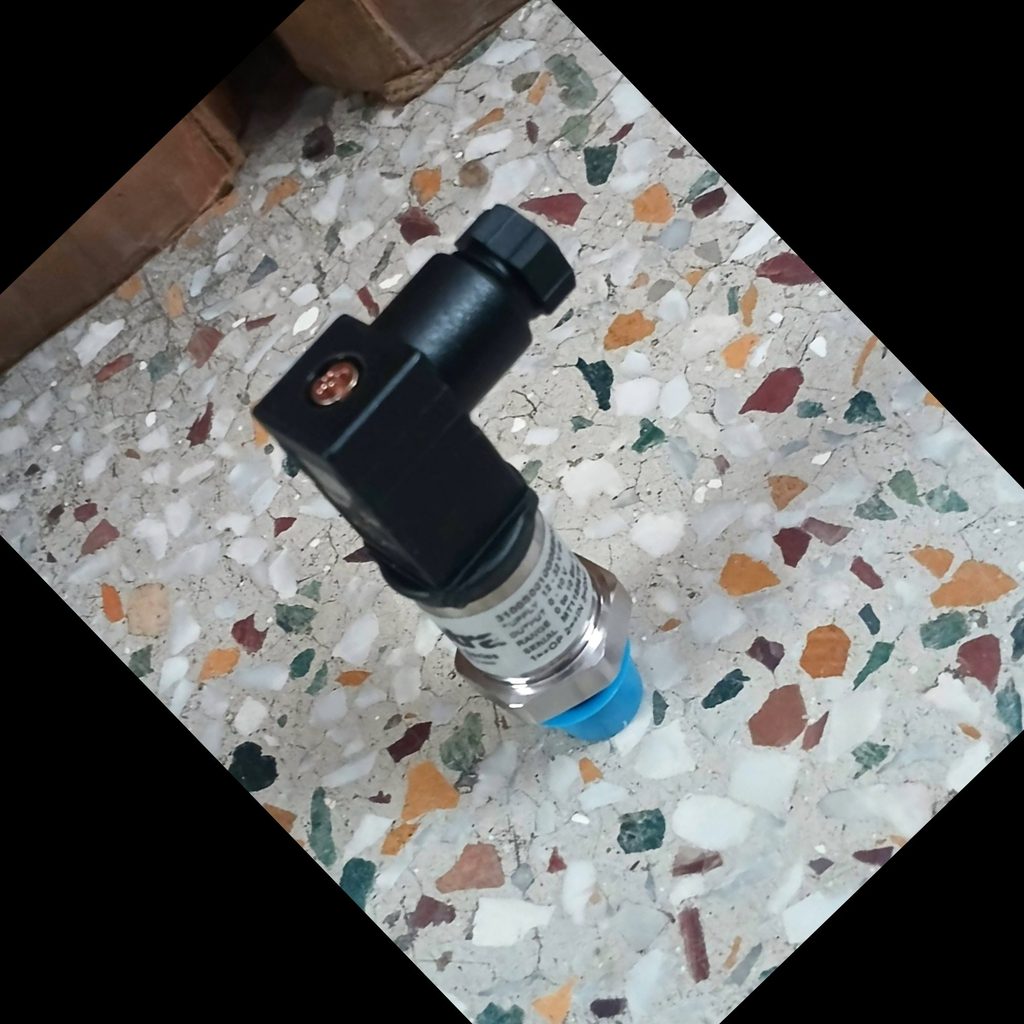

3100B0010G01B Setra Pressure Transmitter 0-10 Bar
Product Information
Setra Model 3100B0010G01B is An Industrial Pressure Transmitter For Accurate Gauge Pressure Measurement From 0–10 Bar.It is Designed For OEM,Industrial And Process Pressure Monitoring Applications
Technical Data
- Brand: Setra
- Model: 3100B0010G01B
- Series: Model 3100
- Pressure Type: Gauge
- Pressure Range: 0–10 Bar
- Output: 4–20 mA
- Supply Voltage: 8–30 VDC
- Circuit: 2-Wire
- Accuracy: ±0.25% FS
- Response Time: 1 ms
- Pressure Connection: G1/4 Male
- Electrical Connection: DIN 43650 Form C
- Operating Temperature: -40°C to +125°C
- Compensated Temperature: -40°C to +125°C
- Storage Temperature: -40°C to +125°C
- Protection: IP67
- Sensor Technology: Sputtered Thin Film
- Wetted Material: 17-4PH Stainless Steel
- Fitting Material: 304 Stainless Steel
- Long-Term Stability: ±0.2% FS
- Reverse Wiring Protection: Yes
- Shock Resistance: IEC 68-2-32
- Vibration Resistance: Up to 40G peak-to-peak
- Fatigue Life: More than 100 million cycles
- Approx. Range: 0–145 PSI
- RoHS: Compliant
Product Features
High Accuracy,Fast Response,Compact OEM Design,Rugged Stainless-Steel Construction,Excellent Stability,IP67 Protection,Vibration/Shock Resistance And Reliable 4–20 mA Industrial Output
Field Of Application
HVAC,Compressors,Pumps,Hydraulic Systems,Pneumatic Systems, Refrigeration,Water Treatment,Process Equipment,Industrial Machinery, Automation And OEM Equipment
Ambient Condition
Operating Temperature -40°C to +125°C.Suitable For Demanding Industrial Environments With Proper Installation And Protection
Material
Stainless-Steel Pressure-Wetted Construction With 17-4PH Diaphragm And 304 Stainless-Steel Fittings
Electrical Data
- Output: 4–20 mA;
- Supply: 8–30 VDC; 2-Wire Loop; DIN 43650 Form C Connector; Reverse Polarity Protection
Installation Guide
Install On a Compatible G1/4 Pressure Port.Keep The Connection Clean And Properly Sealed.Connect The 2-Wire Loop With Correct Polarity And Use An 8–30 VDC Regulated Supply.Avoid Excessive Vibration,Mechanical Stress And Overpressure.Check The Pressure Reading After Installation
Approval
IP67 Protection And RoHS Compliant.Certification Depends On The Exact Configuration.
Accessories
DIN Connector,Cable,G1/4 Sealing Washer,Pressure Fittings/Adapters,Loop Power Supply,Digital Display,PLC Interface And Isolation Accessories.
