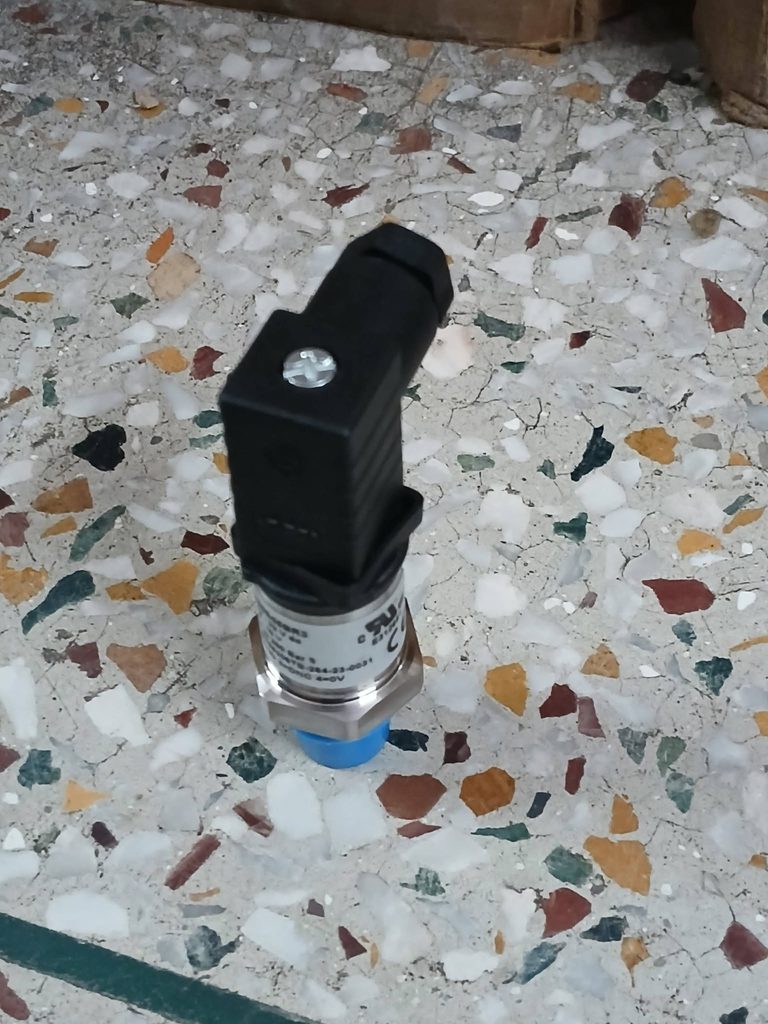

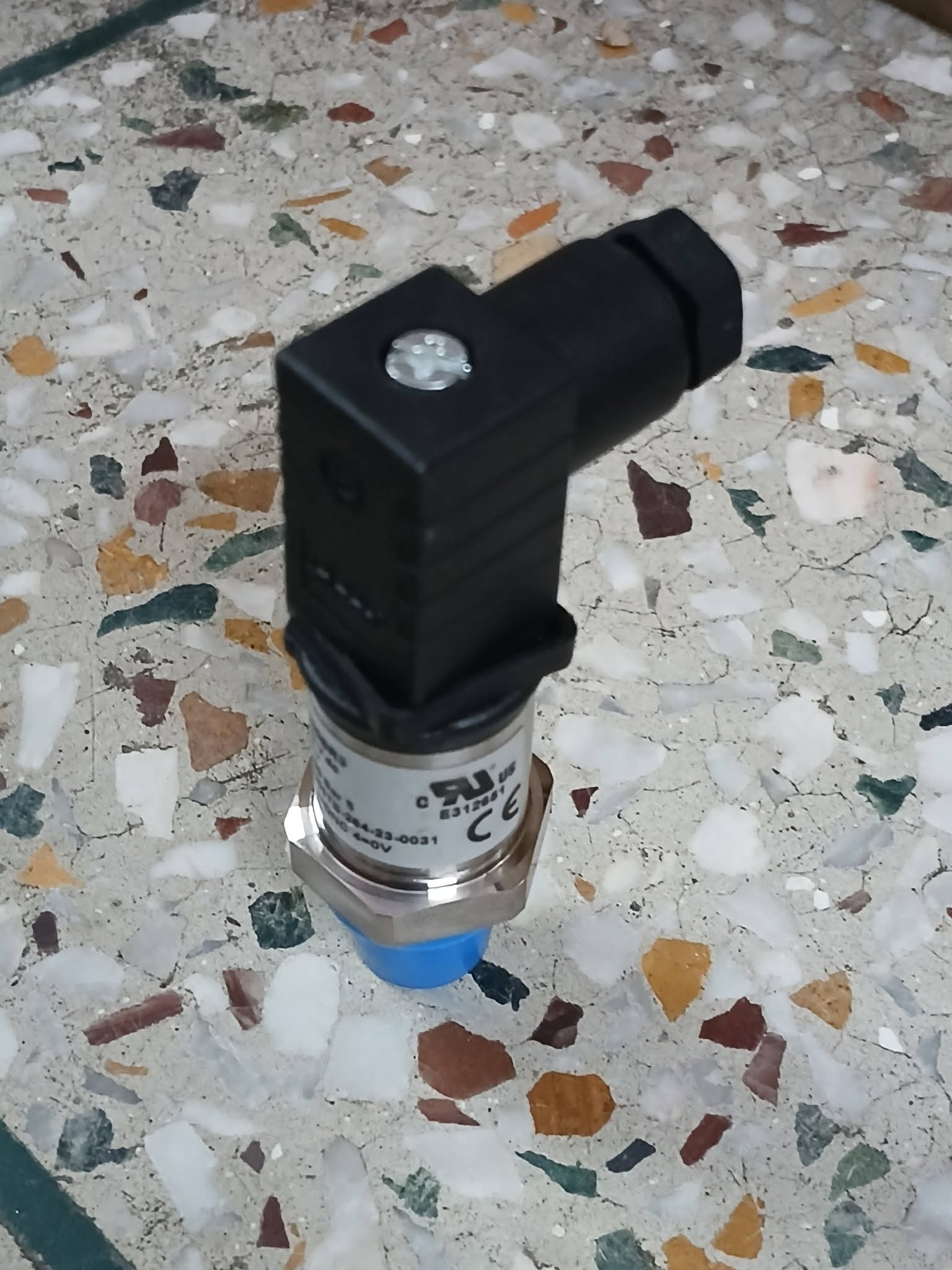

3100B0018G1GB Setra Pressure Transmitter 0-18 Bar
Product Information
SETRA Model 3100B0018G1GB is a Compact Industrial Pressure Transmitter Designed For Accurate And Reliable Measurement Of Gauge Pressure up to 0–18 Bar.The 3100 Series Uses Sputtered Thin-Film Sensing Technology And Stainless-Steel Wetted Construction For Dependable Performance in OEM And Industrial Applications.The Transmitter Provides a Standard 4–20 mA Output And Operates From An 8–30 VDC Supply.
Technical Data
- Brand: SETRA
- Model: 3100B0018G1GB
- Pressure Range: 0–18 Bar
- Pressure Type: Gauge
- Output Signal: 4–20 mA
- Supply Voltage: 8–30 VDC
- Pressure Connection: 1/4″ NPT Male
- Electrical Connection: DIN 43650 Form C
- Enclosure Rating: IP67
- Temperature Range: -40°F to 257°F
- Sensing Technology: Sputtered Thin Film
- Wetted Material: Stainless Steel
- Approval: cURus
- RoHS Compliant
Product Features
- 0–18 Bar Gauge Pressure Measurement
- Stable 4–20 mA Industrial Output
- Compact OEM Design
- Stainless-Steel Wetted Parts
- IP67 Enclosure Protection
- Wide Operating Temperature Capability
- Reliable Thin-Film Sensing Technology
- Suitable For Space-Limited Installations
- Designed for Long-Term Industrial Operation
Field Of Application
Suitable For Industrial Process Monitoring,Hydraulic Systems,Irrigation Equipment,HVAC And Compressors,Variable-Speed Pumps,Refrigeration Systems,OEM Machinery,Water Systems,Pneumatic Equipment And General Pressure Monitoring Applications.
Ambient Condition
The Transmitter is Designed For Industrial Environments With a Broad Operating Temperature Range.For Installation,Avoid Excessive Vibration, Direct Mechanical Impact,Moisture Ingress And Temperatures Outside The Specified Range.
Material
The Pressure-Sensing Wetted Components Are Stainless Steel.The Compact Construction is Designed For Industrial OEM Applications.
Electrical Data
- Supply: 8–30 VDC
- Output: 4–20 mA
- Electrical Connection: DIN 43650 Form C
- Protection: IP67
Installation Guide
Install The Transmitter Using The Specified 1/4″ NPT Pressure Connection. Apply Suitable Thread sealing where required. Ensure the pressure port is free from contamination. Connect the 8–30 VDC supply and 4–20 mA signal according to the applicable wiring configuration. Do not exceed the specified pressure or electrical limits.
Approval
cURus approval and RoHS Compliance Are Listed For This Model.
Accessories
- Compatible Pressure Fittings
- Thread Adapters
- Electrical Mating Connector
- Cable/Connection Accessories
- Pressure Isolation Accessories
- Mounting And Installation Accessories
Part No.: 3100B0018G1GB
Range: 0–18 Bar | Output: 4–20 mA | Supply: 8–30 VDC
