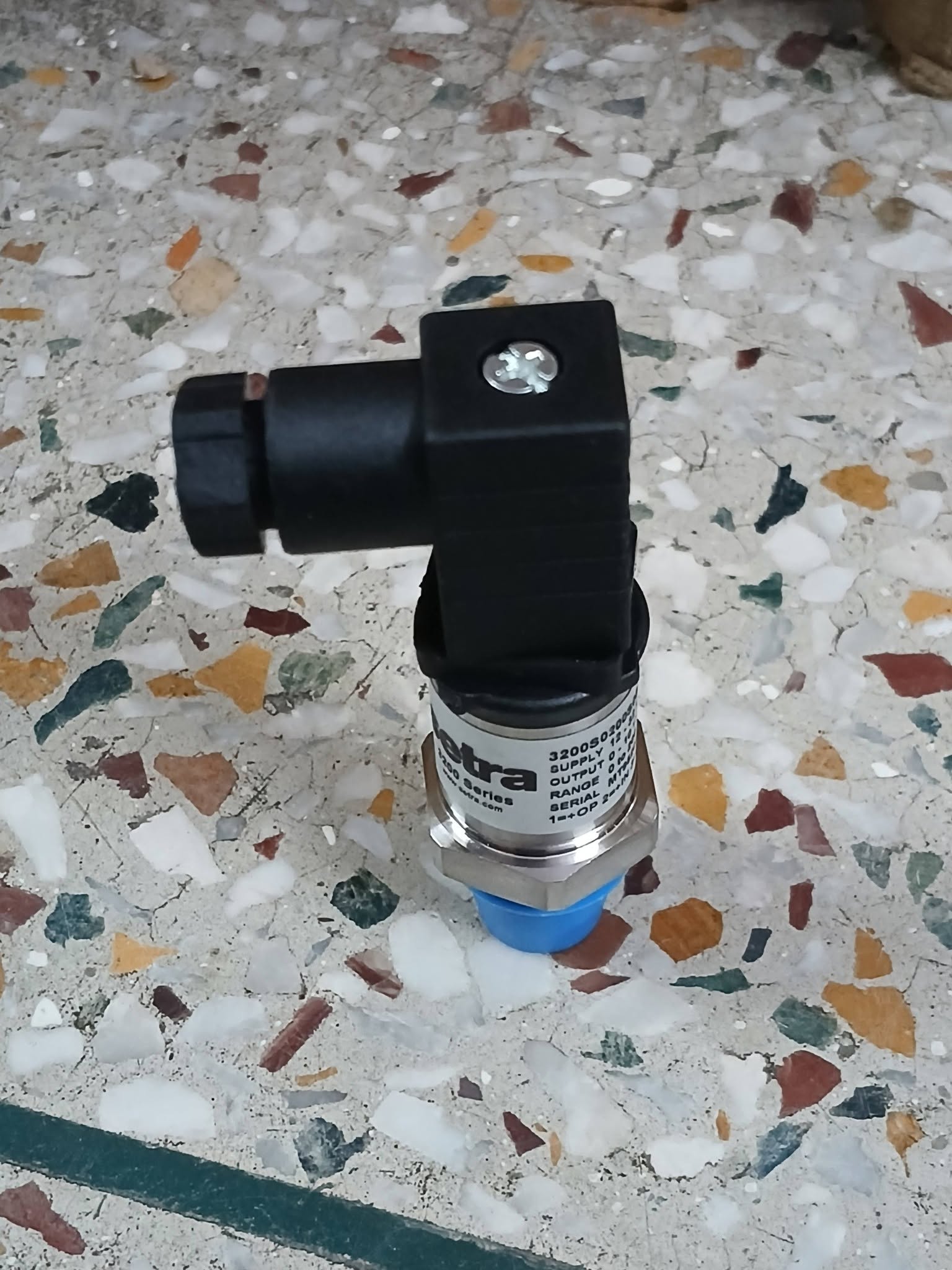

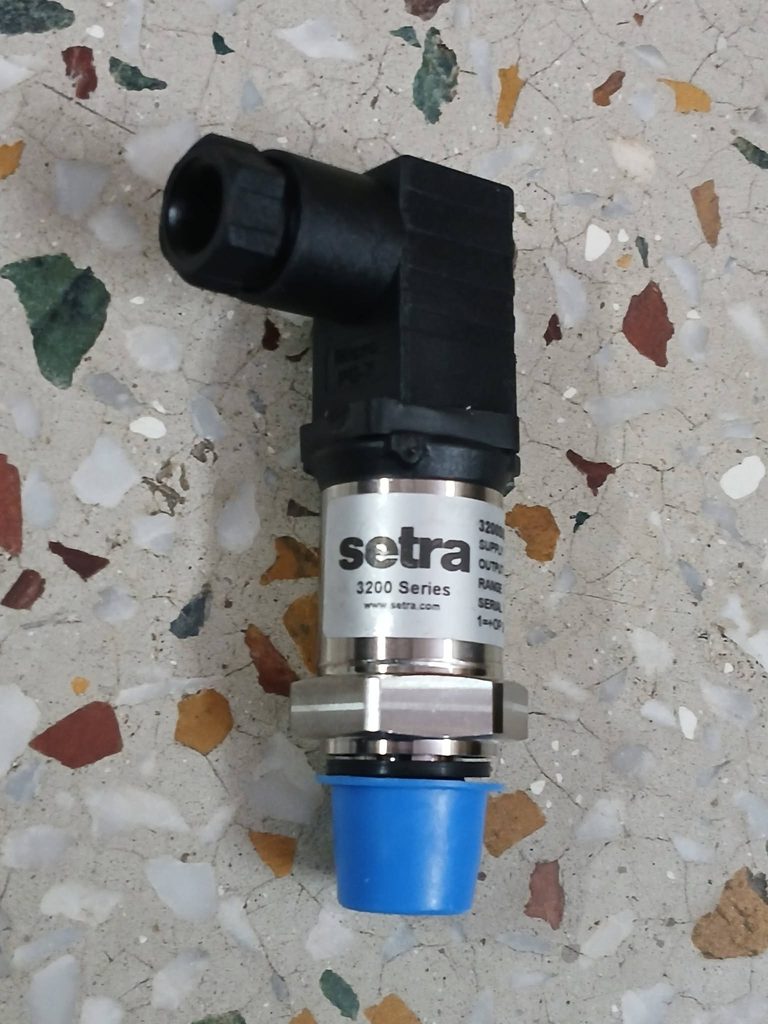

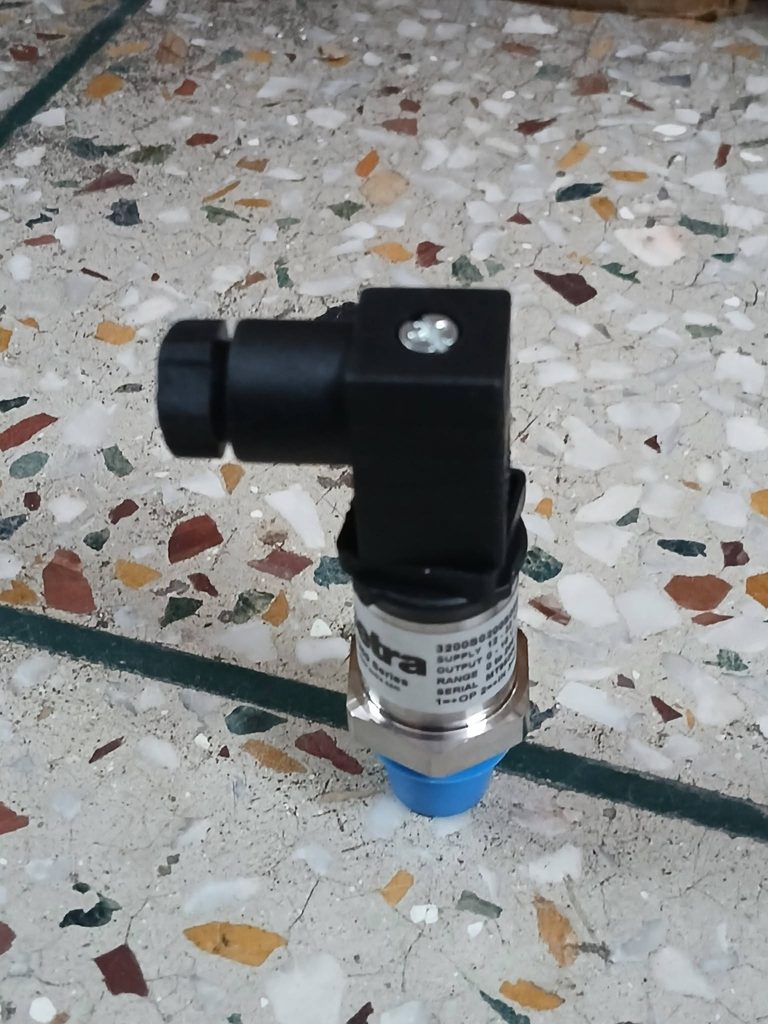

3100B0200S01B Setra Pressure Transmitter 0-200 Bar
Product Information
Setra Model 3100B0200S01B is an Industrial OEM Pressure Transmitter Designed For Accurate And Reliable Measurement Of Pressure Up To 0–200 Bar.It Uses Thin-Film Sensing Technology And is Suitable For Industrial,Hydraulic,Irrigation,Pump,Compressor And Process-Monitoring Applications.The Specified Configuration Uses 4–20 mA Output,8–30 VDC Supply And 1/4″ NPT Process Connection
Technical Data
- Brand: Setra Systems
- Series: Model 3100
- Part No.: 3100B0200S01B
- Pressure Range: 0–200 Bar
- Output: 4–20 mA
- Supply Voltage: 8–30 VDC
- Accuracy: ±0.25% FS
- Pressure Type: Gauge/Sealed Gauge configuration as ordered
- Process Connection: 1/4″ NPT Male
- Electrical Connection: Industrial DIN
- Enclosure: IP67
- Operating Temperature: -40°C to +125°C
- Compensated Temperature: -40°C to +125°C
- Response Time: Approximately 1 ms
- Wetted Parts: 17-4PH Stainless-Steel Diaphragm And 304 Stainless-Steel Fittings
- Construction: All-Welded Stainless Steel
- Weight: Approx. 35 g For Standard Model 3100 Construction
Product Features:
• High Accuracy And Fast Response
• Rugged Industrial Construction
• 4–20 mA Standard Analog Output
• Wide DC Supply Range
• IP67 Protection
• Excellent Vibration Resistance
• Compact OEM Design
• Reliable Long-Term Operation
• Suitable For High-Pressure Applications
• Easy Integration With PLC And Control Systems
Field Of Application:
Hydraulic Machinery,Hydraulic Power Packs,Pumps,Booster Systems, Compressors,Irrigation Systems,Water Treatment Plants,HVAC Equipment, Refrigeration Systems,Industrial Automation,Process Control, Manufacturing Machinery and OEM Equipment
Ambient Condition:
Designed For Industrial Environments With An Operating Temperature Range Of Approximately -40°C to +125°C.IP67 Protection Helps Protect Against Dust And Water Ingress When Correctly Installed
Material:
Stainless-Steel Construction With Stainless-Steel Wetted Components, Suitable For Demanding Industrial Pressure Applications
Electrical Data:
2-Wire 4–20 mA Current Output With 8–30 VDC Supply.Connect The Transmitter According To The Specified Wiring Diagram And Maintain Correct Polarity
Installation Guide:
Install On a Compatible 1/4″ NPT Pressure Port.Use Suitable Sealing Material Where Required.Do Not Exceed The Rated Pressure Range. Connect The 4–20 mA Loop To a Suitable DC Supply And Control System. Check For Leakage And Verify The Output Signal After Installation
Approval:
Applicable Configurations Provide IP67 Protection And Relevant EMC/RoHS Compliance.Check The Product Label And Exact Datasheet For Configuration-Specific Approvals
Accessories:
Mating Connector,Cable,Pressure Fittings,Thread Adapters,24 VDC Power Supply,PLC/Display Interface And Calibration Equipment.
Additional Information:
