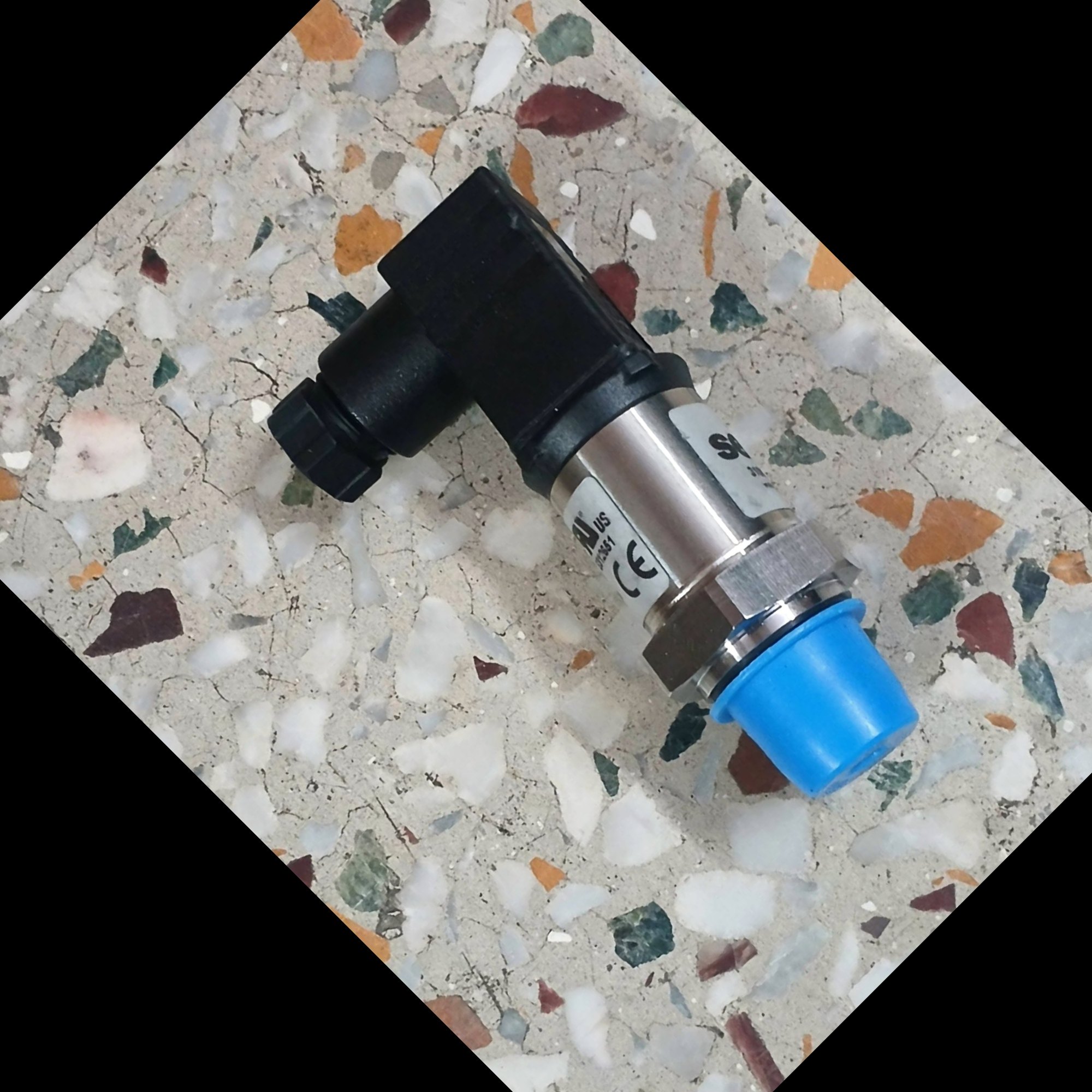

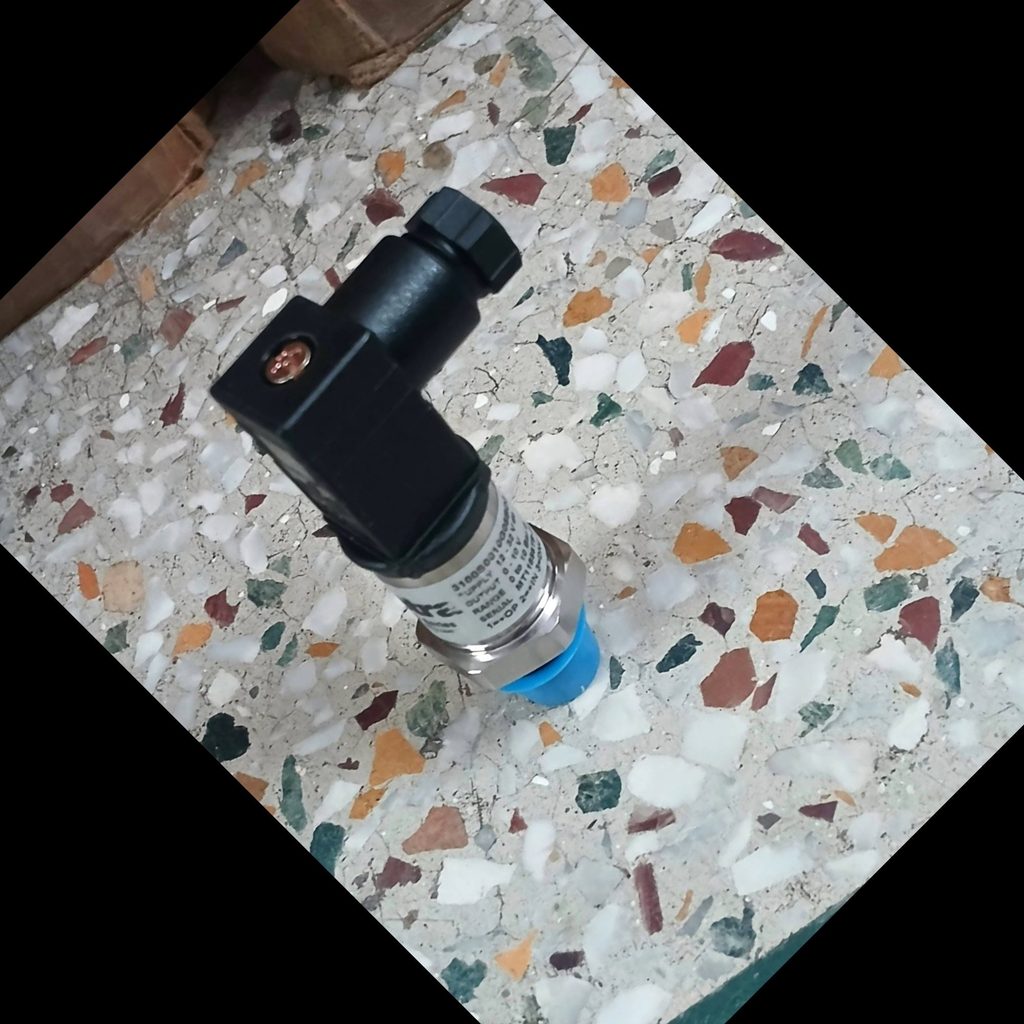

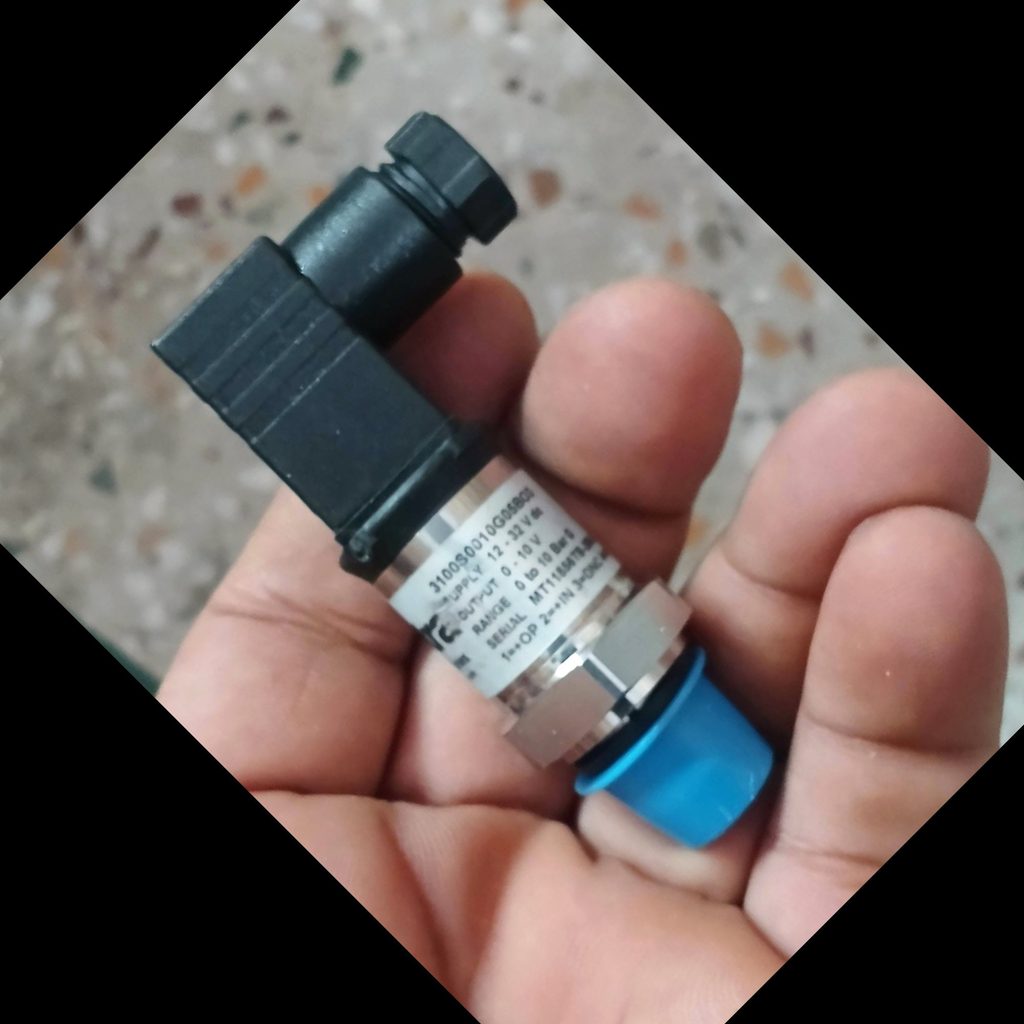

Setra 3100B0010C02B Pressure Transmitter 0-10 Bar
Setra Model 3100B0010C02B is a High-Pressure OEM Pressure Transmitter Designed For Accurate And Reliable Measurement Of Hydraulic And Industrial Pressure.It Uses Sputtered Thin-Film Sensing Technology With Rugged Stainless-Steel Construction And IP67 Environmental Protection.The 0–10 Bar Range Makes It Suitable For Demanding High-Pressure Applications
Technical Data
- Manufacturer: Setra Systems
- Product Type: Industrial Pressure Transmitter / Pressure Transducer
- Series: Model 3100
- Model Number: 3100B0010C02B
- Pressure Measurement Type: Gauge Pressure
- Pressure Range: 0 to 10 Bar
- Maximum Rated Pressure: 10 Bar
- Accuracy: ±0.25% Full Scale (FS)
- Output Signal: 4–20 mA DC
- Power Supply: 8–30 VDC
- Electrical Connection: DIN 43650 Form C
- Pressure Connection: G 1/4 inch Male
- Sensor Technology: Sputtered Thin-Film Strain Gauge
- Wetted Material: Stainless Steel
- Diaphragm Material: 17-4 PH Stainless Steel
- Fitting Material: 304 Stainless Steel
- Ingress Protection: IP67
- Operating Temperature: −40°C to +125°C
- Compensated Temperature Range: −40°C to +125°C
- Response Time: Approximately 1 millisecond
- Zero/Span Tolerance: ±0.5% of Span
- Long-Term Stability: Model-series specification applies; verify the applicable range limit before stating a specific value
- Pressure Medium: Compatible liquids and gases, subject to wetted-material compatibility
- Construction: Compact industrial OEM design
- Protection Features: Reverse-wiring protection is available according to the applicable electrical configuration
- Compliance: RoHS compliant
- Applications: Hydraulic systems, industrial process monitoring, compressors, pumps, refrigeration systems, irrigation equipment, pressure-control systems and OEM machinery
- Installation: Mount using the correct pressure port and compatible sealing method. Connect the 4–20 mA loop with the correct supply polarity and ensure the pressure remains within the rated range.
- Maintenance: Periodically inspect pressure connections, electrical wiring and sealing surfaces. Avoid pressure surges beyond the rated limits.
- Product Use: Continuous pressure measurement and feedback for industrial monitoring and control systems.
Product Features
- High-Pressure Measurement Up to 10 Bar
- ±0.25% FS Accuracy
- Sputtered Thin-Film Sensing Element
- Rugged Stainless-Steel Construction
- IP67 Protection Against Moisture And Dust
- Fast Response Time
- Wide Operating Temperature Range
- Reverse Wiring Protection
- Suitable For OEM And Industrial Equipment
- Designed For High Shock And Vibration Environments
Field Of Application
- Hydraulic Pressure Systems
- Hydraulic Machinery
- Industrial OEM Equipment
- Pumps and Variable-Speed Pumps
- Compressors
- Refrigeration Systems
- Industrial Machinery
- Irrigation Pressure Systems
- Process Control Equipment
- High-Pressure Fluid Systems
- HVAC/R Equipment
Ambient Condition
The Transmitter is Designed For Demanding Industrial Environments. Operating And Storage Temperature is Approximately -40°C to +125°C. IP67 Enclosure Protection Provides Resistance Against Dust And Temporary Water Exposure
Material
The Model 3100 Uses An All-Welded Stainless-Steel Construction.Wetted Components Include Stainless-Steel Materials Suitable For Compatible Industrial Pressure Media
Electrical Data
- Output: 4–20 mA
- Supply: 8–30 VDC
- Circuit: 2-wire
- Electrical Connection: DIN 43650 Form C
- Reverse Wiring Protection Is Provided
Installation Guide
Install The Transmitter On a Compatible Pressure Port Using The Correct Sealing Method And Suitable Tools.Ensure That The Pressure Applied Remains Within The Rated 0–10 Bar Range.Connect The Power Supply And Signal Wiring According To The Specified Electrical Configuration.For Outdoor Or Electrically Noisy Installations,Use Appropriate Shielded Wiring And Grounding Practices.Avoid Excessive Mechanical Stress On The Transmitter And Wiring
Approval
cURus Approved And RoHS Compliant.Always Verify The Exact Certification Requirements For The Intended Installation Before Commissioning
Accessories
Compatible Accessories May Include Pressure Fittings,Sealing Components, Electrical Connectors,Cables,Mounting Hardware and Signal/PLC Interface Equipment.Select Accessories According To The Actual Pressure Connection,Electrical Connection And Application Requirements
