SETRA Model 3200B0060G05BR2is a Heavy-Duty Industrial OEM Pressure Transmitter Designed For Accurate and Reliable Measurement of Pressure up to 0–60 Bar.The Model 3200 Uses Sputtered thin-film sensing technology,Rugged stainless-steel construction and compact Design for Demanding Industrial Applications.SETRA Model 3200 is Available With Different Electrical Outputs and Connection Configurations.
Technical Data
Brand: SETRA
Model: 3200
Part No.: 3200B0060G05BR2
Pressure Range: 0–60 Bar
Type: Gauge Pressure Transmitter
Supply: 8-32 VDC
OUTPUT: 4…20 mA
CONNECTION: 1/4″ NPT 304 SS.
COUNTRY OF ORIGIN: INDIA
Sensing Technology: Sputtered Thin Film
Accuracy: Configuration dependent; Model 3200 Specifications Are Available up to ±0.25% FS / ±0.5% FS Depending On Product Configuration
Response Time: Approximately 1 ms
Construction: Heavy-Duty Industrial
Protection: IP67 depending on configuration
Product Features
Heavy-duty industrial Design
Rugged all-welded Stainless-Steel Construction
Excellent long-term stability
Compact size for OEM installation
Fast response
High resistance to vibration and harsh industrial environments
Reverse wiring protection
Multiple electrical output and pressure connection options
Field Of Application
Suitable for Hydraulic Systems,Industrial Machinery,Compressors,Pumps, Process Equipment,Power-Generation Equipment,Irrigation Systems,OEM Machinery,Pressure Monitoring And Industrial Automation Applications.
Ambient Condition
Operating and Compensated Temperature range can extend approximately from -40°C to +125°C, depending on configuration.The Transmitter should be protected from pressure,Temperature And Environmental Conditions Outside its Specified Limits.
Material
Sensing Diaphragm: 17-4 PH Stainless Steel
Fittings/wetted components: 304 stainless steel,Depending on Configuration
Housing: Rugged stainless-steel construction
Electrical Data
Model 3200 Configurations Are Available With 4–20 mA, 0–10 VDC, 0–5 VDC, 1–5 VDC, 1–6 VDC and ratiometric outputs.Supply Voltage and Electrical Connector Depend on the exact part-number Configuration.
Installation Guide
Install The Transmitter on the correct pressure port using suitable fittings and sealing. Keep the pressure connection Clean and avoid excessive vibration or mechanical stress. Connect electrical wiring according to the Applicable SETRA wiring Diagram.Do not exceed the rated pressure, temperature or electrical limits. Verify the complete configuration before commissioning.
Approval
Model 3200 is Designed For Industrial Applications and is Available with RoHS compliance and CE-related EMC Requirements,Depending on configuration. Exact approvals should be Verified for the Ordered Part Number.
Accessories
Suitable Accessories May Include Pressure Fittings,Adapters,Electrical Connectors,Cables,Mounting Accessories and Pressure Restrictors.Select Accessories According to the Exact Transmitter Configuration.
SETRA Model 3100S0010G05BO3 is a compact industrial OEM Pressure Transmitter for reliable 0–10 Bar gauge pressure measurement.It uses sputtered thin-film sensing technology and rugged welded stainless-steel construction for demanding applications
Technical Data
Brand: SETRA
Part No:3100S0010G05BO3
Pressure Range:0 TO 10 Bar
OUTPUT:0…10 V
Supply:12-32 VDC
CONNECTION:1/4″ NPT 304 SS
Pressure Type: Gauge
Accuracy:±0.25% FS
Diaphragm:17-4 PH Stainless Steel
Fittings:304 Stainless Steel
Operating/Storage Temperature: -40°C to +125°C
Response Time: Approx. 1 ms
Long-Term Stability: ±0.2% FS for ranges below 60 Bar
Product Features
High accuracy and repeatability
Rugged stainless-steel construction
Excellent long-term stability
No oil-filled sensor design
Reverse wiring protection
High vibration resistance
IP67 environmental protection
Compact OEM design
Suitable for space-limited installations
Field Of Application
Hydraulic & Pneumatic Systems
HVAC & Refrigeration
Compressors & Pumps
Industrial Machinery
Process Equipment
Booster Pump Systems
Irrigation Systems
Power Generation
OEM Machinery
Pressure Monitoring & Control
Ambient Condition
Operating and storage temperature is -40°C to +125°C. The transmitter is designed for industrial environments involving vibration and moisture exposure.Application pressure must remain within the rated range.
Material
Sensor Diaphragm:17-4 PH Stainless Steel
Fittings:304 Stainless Steel
Construction:Welded Stainless Steel
Enclosure:IP67-rated design
Electrical Data
The SETRA 3100 family is available with different electrical configurations, including voltage Current and ratiometric outputs.Supply voltage,Output signal and connector configuration depend on the specific ordering code. Verify the exact electrical configuration of Part No 3100S0010G05BO3 with the applicable manufacturer documentation before installation.
Installation Guide
Confirm the pressure range is suitable
Install using the correct pressure connection
Tighten fittings without excessive force
Connect wiring according to the applicable diagram
Protect electrical connections from moisture
Apply power after completing pressure and electrical connections.
Check for leakage and verify the output signal
Approval
Model 3100 documentation indicates RoHS compliance and IP67 protection Applicable approvals may vary by configuration verify the exact approval for Part No 3100S0010G05BO3 before purchase or installation
Accessories
Mating Electrical Connector
Sealing Washer
Pressure Fittings
Mounting Hardware
Pressure Tubing/Fittings
Shielded Electrical Cable
Signal/Power Wiring Accessories
Summary
SETRA 3100S0010G05BO3 0 TO 10 Bar Pressure Transmitter is suitable for industrial OEM pressure measurement,Hydraulic,Pneumatic,HVAC, compressor,Pump and process-control applications

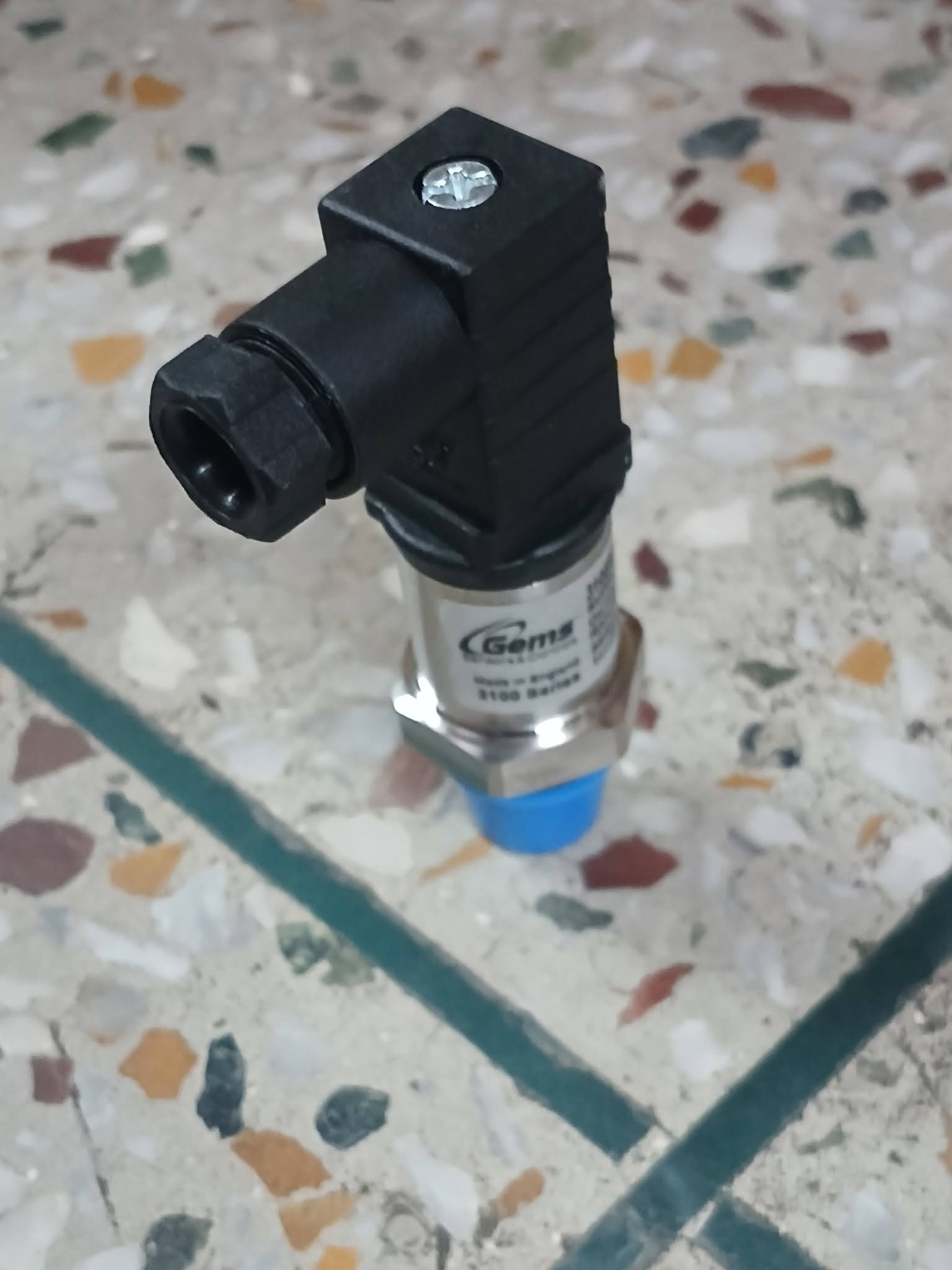

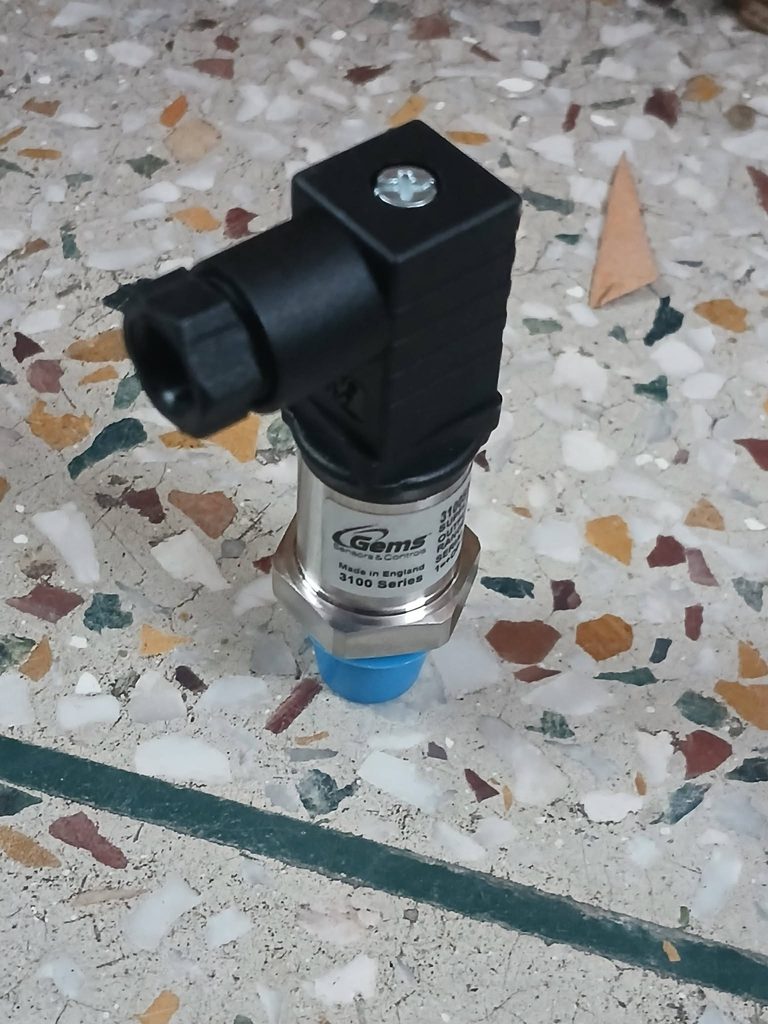

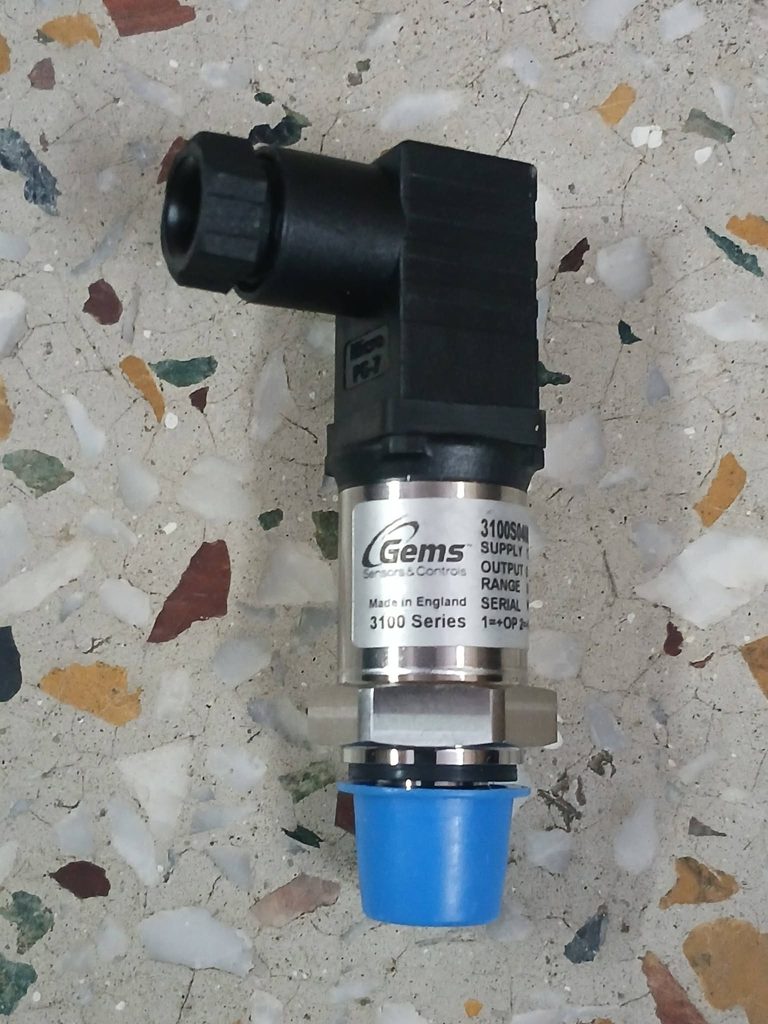

GEMS 3100 Series Pressure Transmitter is a compact and reliable pressure measurement device designed for industrial pressure monitoring and control applications.It uses sputtered thin-film sensing technology and stainless-steel wetted construction for stable performance in demanding environments.The Pressure Range is 0 to 400 Bar
Technical Data
Product Series:GEMS 3100 Series
Part No:3100S0400S05B000
Pressure Range:0 to 400 Bar
Supply:12-32 VDC
OUTPUT:0…10 V
CONNECTION:1/4″ NPT 304 SS
Pressure Type:Gauge / Sealed Gauge,Depending on Configuration
Accuracy:Typically 0.25% Full Scale
Operating Temperature:
Approximately-40°C to +125°C Configuration Dependent
High Proof And Burst Pressure Capability
Stainless-Steel Wetted Parts
Protection: Up to IP67,Configuration Dependent
Product Features
0–400 Bar high-pressure measurement
Excellent long-term stability
Sputtered thin-film sensing technology
Stainless-steel construction
Compact size for space-limited installations
Reliable performance under demanding industrial conditions
Multiple electrical and pressure connection options available within the 3100 Series
Field Of Application
Hydraulic Systems,Pneumatic Systems,Industrial Machinery,Compressors, Pumps,Process Equipment,Hydraulic Power Units,Water Systems,Oil & Gas Equipment,Chemical Processing,Industrial Automation,Refrigeration Systems and General Pressure Monitoring
Ambient Condition
Operating Temperature is Typically-40°C to +125°C,Depending on the Selected configuration.Proper installation should protect the transmitter from excessive vibration,Mechanical shock and temperatures outside the specified range
Material
Wetted Parts:Stainless Steel
Housing:Stainless Steel,Configuration Dependent
Industrial compact construction
Sealing and Connection materials depend on the selected configuration.
Electrical Data
The GEMS 3100 Series is Available with Different Electrical Outputs and connections.Common configurations include 4–20 mA,0–10 V and ratiometric outputs,With supply voltage depending on the selected model The exact electrical specification should be confirmed against the complete part-number configuration before installation
Installation Guide
Install the Transmitter on a Compatible pressure port using the correct thread and sealing method.Ensure the pressure line is clean and free from contamination.Connect the electrical supply and output according to the applicable wiring diagram.Do not exceed the specified pressure,Temperature or electrical limits.After installation, check for leakage and verify the output signal before putting the system into service
Approval
RoHS compliant.Additional approvals/certifications may depend on the Selected 3100 Series Configuration
Accessories
Mating Electrical Connector,Pressure Fittings,adapters,Mounting accessories,Seals and Compatible cables may be Available Depending on the selected Configuration
Note: Specifications such as output,Pressure Connection,Supply Voltage, IP rating and certification can vary by exact GEMS 3100 Configuration. Always Verify the Original Manufacturer Datasheet Before Final Installation Or Ordering
SETRA Model 3200 is a Heavy-Duty Industrial Pressure Transmitter Designed For Reliable Pressure Measurement in Demanding Industrial and OEM Applications. Part No. 3200B0250S05BR is Specified With a Pressure Range of 0 TO 250 Bar. Technical Data
Brand: SETRA / GEMS
MANUFACTURER: SETRA
MADE IN: USA
OUTPUT: 4…20 MA
Supply: 8-30 VDC
CONNECTION: 1/4″ NPT 304 SS.
Series: Model 3200
Part No.: 3200B0250S05BR
Range: 0 TO 250 Bar
Sensor: Sputtered Thin-Film
Accuracy: Up to ±0.5% FS, configuration dependent
Operating Temperature: Approximately -40°C to +125°C
Construction: Stainless Steel
Protection: Up to IP67, configuration dependent
Response: Fast response suitable for industrial pressure monitoring
Product Features
Heavy-Duty Industrial Construction
Excellent Long-Term Stability
Sputtered Thin-Film Sensing Technology
Compact and rugged design
Fast Response
High Resistance to Vibration
Stainless-Steel Construction
Suitable for demanding industrial environments
Multiple electrical output and pressure connection options
Field Of Application
Suitable for Hydraulic Systems, industrial machinery, compressors, pumps, power generation equipment, process machinery, oil & gas equipment, irrigation systems, OEM equipment and industrial pressure monitoring and control applications. Ambient Condition
Designed for demanding industrial environments. The Model 3200 Series supports an operating temperature range of approximately -40°C to +125°C, depending on configuration. Protect the transmitter from conditions exceeding the specified temperature, pressure and electrical limits. Material
The Transmitter Uses Rugged Stainless-Steel Construction. Applicable Configurations use 17-4 PH Stainless Steel For The Sensing Diaphragm and 304 Stainless Steel Fittings. Electrical Data
Model 3200 Configurations are Available With Different Electrical Outputs, including 4–20 mA and various voltage outputs. The exact supply voltage, output signal, connector and wiring depend on the complete part-number configuration. Installation Guide
Install The Transmitter on the correct pressure connection and ensure the pressure line is clean and free from excessive vibration. Connect the electrical wiring according to the applicable wiring diagram. Do not exceed the rated pressure, temperature or electrical limits. Check the exact configuration before installation and commissioning. Approval
The Model 3200 Series is available with RoHS compliance and industrial environmental protection. Exact approvals and certifications depend on the ordered configuration. Accessories
Available options may include pressure fittings, adapters, electrical connectors, cables, mounting accessories and pressure restrictors. Select accessories according to the exact transmitter configuration.
SETRA Pressure Transmitter 3200B0250S05BR, Range 0 TO 250 Bar, is Designed For Dependable High-Pressure Measurement in Industrial and OEM applications.
Temperature: Approximately -40°C to +125°C, configuration dependent
Compliance: RoHS
Product Features
0–250 Bar Pressure Range
0–10 VDC Analogue Output
12–30 VDC supply
Robust industrial construction
Stainless-steel wetted construction
Reliable thin-film sensing technology
Designed for demanding high-pressure applications
Compact and durable design
Suitable for continuous pressure monitoring
Field Of Application
Suitable for Hydraulic Systems, Pumps, Compressors, Industrial Machinery, Process Equipment, Water Treatment, Oil & Gas Equipment, Chemical Plants, Boiler Systems, Air & Gas Systems, HVAC, Industrial Automation and OEM Machinery. Ambient Condition
Install within the specified pressure and temperature limits. Protect the transmitter from excessive vibration, mechanical shock, moisture and freezing. Ensure that the pressure medium is compatible with the wetted materials. Do not exceed the rated pressure or temperature limits. Material
The 3200 Series Uses Robust Stainless-Steel Construction suitable for industrial pressure measurement. Exact wetted material and pressure-port specification should be verified from the complete part-number configuration. Electrical Data
Output: 0–10 VDC
Supply Voltage: 12–30 VDC
Signal: Analogue Voltage
Use a suitable regulated DC power supply.
Connect wiring according to the applicable connector pinout.
Installation Guide
Verify part number and pressure range before installation.
Confirm system pressure is within the transmitter’s rated range.
Check pressure-medium compatibility.
Install the correct pressure connection and seal.
Connect electrical wiring according to the supplied pinout.
Apply pressure gradually and check for leakage.
Never exceed the specified maximum pressure.
Approval
Available with applicable RoHS/CE compliance, depending on product configuration. Verify certification for the exact supplied model. Accessories
The SETRA Model 3200 is a heavy-duty industrial OEM pressure Transducer using a sputtered thin-film sensing element. The Model 3200 is designed for demanding industrial applications and is available with Different Pressure Ranges, outputs, pressure ports and electrical connections.
Product Information
Brand: SETRA
Model: 3200
Part No.: 3200B0100S05BO2
Type: Pressure Transmitter / Pressure Transducer
Pressure Range: 0 to 100 Bar
Pressure Type: Gauge
Technology: Sputtered Thin-Film
Construction: All-welded stainless steel
Protection: IP67
Accuracy: Model 3200 specifications vary by configuration; the current SETRA product page lists up to ±0.25% FS, while the referenced 3200 datasheet lists ±0.5% FS. Verify the exact part-number configuration before publishing a guaranteed accuracy.
Technical Data
Parameter
Specification
Model
SETRA 3200
Part Number
3200B0100S05BO2
Range
0–100 Bar
Sensing Technology
Sputtered Thin Film
Accuracy
Configuration dependent
Pressure Type
Gauge
Wetted Material
17-4 PH Stainless Steel diaphragm; 304 SS fittings
Enclosure
IP67
Response Time
Approx. 1 ms
Operating Temperature
-40°C to +125°C
Storage Temperature
-40°C to +125°C
Construction
All-welded stainless steel
Overpressure
Up to 3 × FS depending on pressure range/configuration
Long-Term Stability
±0.2% FS for ranges below 60 Bar in referenced datasheet
The 0–100 Bar range is within the Model 3200’s published range options.
Product Features
Heavy-duty industrial design
Sputtered thin-film pressure sensing
Compact construction
All-welded stainless-steel body
IP67 environmental protection
Excellent long-term stability
High resistance to vibration
Reverse-wiring protection
Multiple electrical output options
No oil-filled sensing system
Designed for OEM and industrial applications
RoHS compliant
CE/UL approvals available depending on configuration
Field of Application
Suitable applications include:
Industrial machinery
Hydraulic systems
Pneumatic systems
Compressors
Pumps
Process equipment
Chemical processing
Oil & gas equipment
Water-treatment equipment
HVAC and building equipment
OEM machinery
Factory automation
Heavy industrial equipment
Pressure monitoring and control systems
SETRA states that its pressure transmitters are designed for applications involving both liquids and gases, subject to material compatibility.
Ambient Condition
Operating temperature: approximately -40°C to +125°C
Storage temperature: approximately -40°C to +125°C
Protection: IP67
Suitable for demanding industrial environments
High vibration resistance
Media must be compatible with the wetted materials.
Material
Wetted Parts:
17-4 PH Stainless Steel diaphragm
304 Stainless Steel fittings
Body/Construction:
Stainless-steel construction
All-welded design
The exact pressure-port material/configuration should be confirmed against the individual part-number ordering code.
Electrical Data
The Model 3200 platform supports different electrical configurations, depending on the ordered part number:
Current Output
Output: 4–20 mA
Circuit: 2-wire
Excitation: 8–30 VDC
Voltage Outputs
0–10 VDC
0–5 VDC
1–5 VDC
1–6 VDC
0.5–4.5 VDC
Ratiometric
0.5–4.5 VDC
5 VDC nominal excitation
The exact output for 3200B0100S05BO2 should be confirmed from the manufacturer’s ordering configuration before specifying it on a product listing.
Installation Guide
Confirm that the pressure range and pressure medium are suitable.
Install the transmitter using the correct pressure connection.
Do not exceed the rated pressure range during normal operation.
Connect the electrical supply according to the applicable wiring diagram.
Use appropriate shielded cable where required by the installation environment.
Ensure proper grounding for metal housings/enclosures.
Avoid excessive mechanical stress on the pressure port and electrical connector.
Check for leakage after installation.
Apply pressure gradually during commissioning.
SETRA’s installation instructions specify that the Model 3100/3200 is designed for gases or liquids compatible with 17-4 PH stainless steel and provide separate wiring arrangements for voltage and current outputs.
Approval & Compliance
Depending on configuration, the Model 3200 platform is specified with:
CE
UL
RoHS
IP67 protection
Approval availability can depend on the exact electrical and mechanical configuration.
Part No.: 3100B0016C1GB Pressure Range: -1 to -16 Bar Output: 4–20 mA
Note: Setra’s Model 3100 documentation confirms the 4–20 mA version, stainless-steel construction, ±0.25% FS accuracy, IP67 protection and wide temperature capability. The exact part-number configuration should be matched with the original factory ordering code before publishing an exact pressure range/specification.
Product Information
The SETRA Model 3100 Pressure Transmitter is an industrial OEM pressure transducer designed for reliable pressure measurement in demanding applications. It uses a sputtered thin-film sensing element and provides a proportional electrical output signal. The transmitter is compact, rugged and suitable for industrial pressure monitoring and control systems.
These specifications are based on Setra’s Model 3100 documentation.
Product Features
High accuracy: ±0.25% FS
4–20 mA industrial output
Compact OEM design
Sputtered thin-film sensing technology
All-welded stainless-steel construction
IP67 protection
Reverse-wiring protection
Excellent vibration resistance
Fast response
No oil-filled sensing system
Long-term stability
CE and RoHS compliant
Field of Application
Hydraulic systems
Industrial machinery
Hydraulic power units
Booster pump systems
Water and wastewater equipment
Irrigation systems
Industrial automation
Process control
OEM equipment
Compressor and pressure-control systems
Power-generation equipment
Ambient Condition
The Model 3100 is designed for demanding industrial environments. The documented operating and compensated temperature range is -40°C to +125°C. The transmitter has IP67 environmental protection in the standard configuration.
Material
Diaphragm: 17-4 PH Stainless Steel
Fittings: 304 Stainless Steel
Housing/Construction: Welded stainless-steel construction
Protection: IP67 enclosure
Electrical Data
For the 4–20 mA configuration:
Output: 4–20 mA
Circuit: 2-wire
Excitation: 8–30 VDC
Maximum loop resistance:(Supply Voltage − 8) × 50 Ω
Reverse wiring protection is provided.
Installation Guide
Confirm that the pressure range and process connection are suitable for the application.
Install the transmitter using the correct pressure fitting.
Do not exceed the specified pressure rating.
Connect the 2-wire 4–20 mA circuit according to the wiring configuration.
Use a suitable DC power supply within the specified range.
Ensure proper electrical shielding/grounding where required.
Check for leakage after mechanical installation.
Start the system and verify that the 4–20 mA signal changes proportionally with pressure.
Setra states that Model 3100 units are tested and calibrated before shipment.
Approval & Compliance
CE compliant
RoHS compliant
IP67 protection
Designed to meet applicable industrial EMC requirements.
Pressure Range:-1 to 35 Bar(compound/gauge range as specified)
Output:4–20 mA
Pressure Connection:1/4″ SAE flare — the available part listing describes this variant as 35BARC, 4–20 mA, 1/4 AEF, MDIN.
Product Information
TheSETRA Model 3100is an industrial OEM pressure Transmitter designed for high Performance, Reliability and long-term stability. It uses asputtered thin-film sensing elementand an all-welded stainless-Steel construction. The transmitter is available with different pressure ranges, outputs, pressure connections and electrical connections.
Technical Data
Parameter
Specification
Brand
SETRA
Model
3100
Part No.
3100B0035C1GB
Pressure Range
0–35 Bar
Pressure Type
Gauge*
Output
4–20 mA
Circuit
2-Wire
Accuracy
±0.25% FS
Sensing Element
Sputtered Thin-Film
Construction
All-welded stainless steel
Enclosure Protection
IP67
Compensated Temperature
-40°C to +125°C
Operating/Storage Temperature
-40°C to +125°C
Response Time
1 ms
Long-Term Stability
±0.2% FS for ranges below 60 Bar
Wetted Parts
17-4 PH stainless-steel diaphragm, 304 SS fittings
Weight
Approx. 35 g
The general Model 3100 datasheet confirms the ±0.25% FS accuracy, IP67 protection, stainless-steel wetted construction, temperature range and 4–20 mA electrical configuration.
Product Features
±0.25% FS accuracy
4–20 mA current output
2-wire electrical circuit
Sputtered thin-film sensing technology
All-welded stainless-steel construction
IP67 environmental protection
Reverse-wiring protection
Excellent vibration resistance
High EMC protection
No oil-filled sensing element
Compact design
Thermally compensated sensor
Long-term stability
RoHS compliant
CE and UL approved for the Model 3100 series
Field of Application
The SETRA Model 3100 Can Be Used In:
Industrial OEM machinery
Hydraulic systems
Pneumatic systems
Compressor systems
Booster pump systems
Irrigation systems
HVAC/R equipment
Industrial automation
Industrial engines
Off-highway vehicles
Process pressure monitoring
Pump and pressure-control applications
Setra specifically identifies industrial OEMs, hydraulic machinery, HVAC/building automation and other industrial applications for its pressure transmitters.
Ambient Conditions
Operating/Storage Temperature: -40°C to +125°C Compensated Temperature Range: -40°C to +125°C Protection: IP67 Vibration: Designed to withstand high levels of industrial vibration.
The stainless-steel construction provides durability for demanding industrial OEM applications.
Electrical Data
Output: 4–20 mA Circuit: 2-wire Supply: 8–30 VDC Maximum loop resistance:(Supply Voltage − 8) × 50 Ω Protection: Reverse wiring protected.
Typical 2-Wire Connection
Power Supply (+) → Transmitter (+) Transmitter (−) → PLC/Controller/Readout (+) Readout (−) → Power Supply (−)
Always verify the pinout against the electrical connector supplied with the exact transmitter before wiring.
Installation Guide
onfirm that the transmitter’s pressure range is suitable for the application.
Verify the pressure-port/thread configuration before installation.
Install the transmitter without excessive mechanical force.
Use the correct sealing method for the pressure connection.
Connect the 4–20 mA loop according to the applicable wiring diagram.
Use a suitable DC power supply within the specified voltage range.
Keep the electrical connector protected from water and contamination.
Avoid pressure spikes above the transmitter’s permissible pressure limit.
After installation, check the pressure connection for leakage.
Verify the 4–20 mA signal before putting the system into service.
Approval / Compliance
The Model 3100 series is specified as:
CE Approved
UL Approved
RoHS Compliant
IP67 Rated
Exact certification can depend on the selected configuration.
Accessories
Suitable accessories can include:
Mating electrical connector
Pressure adapters
Mounting accessories
Sealing components
Cable/connector assemblies
Pressure-port adapters
The exact accessory must match the pressure connection and electrical termination selected for Part No. 3100B0035C1GB. The Model 3100 is offered with multiple pressure-port and electrical-connection options.
