GEMTECH INDUSTRIAL DIFFERENTIAL PRESSURE GAUGE

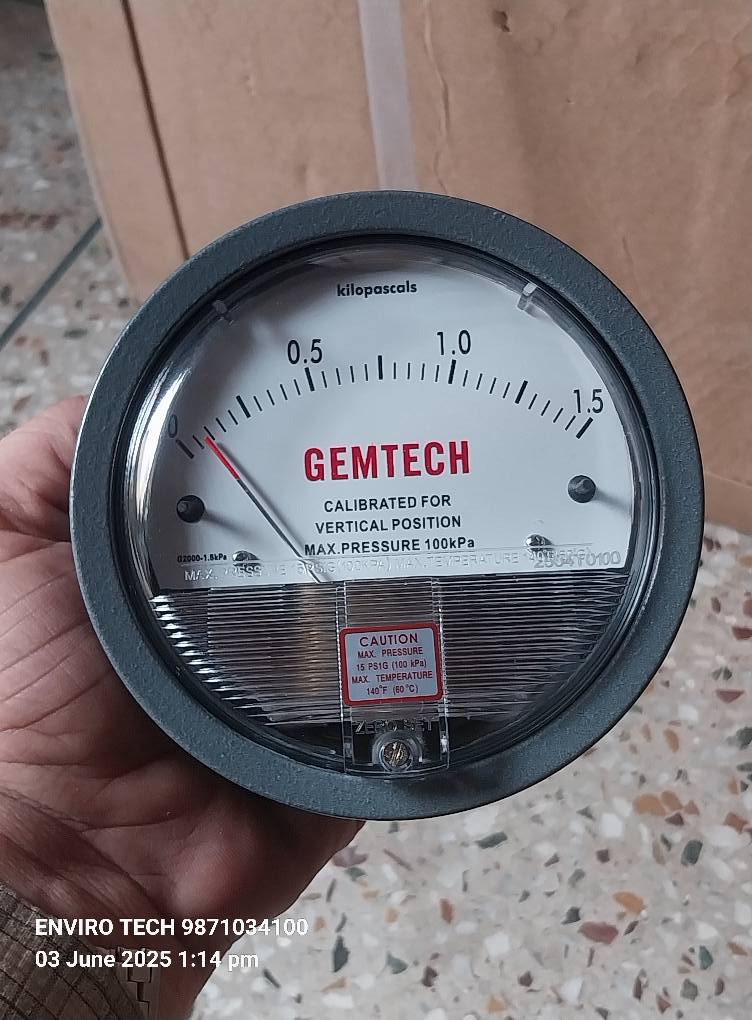

GEMTECH DIFFERENTIAL PRESSURE GAUGE – SILVER AND BLACK

GEMTECH DIFFERENTIAL PRESSURE GAUGE – SILVER AND BLACK

GEMTECH DIFFERENTIAL PRESSURE GAUGE IS A RELIABLE AND ACCURATE INSTRUMENT DESIGNED FOR MEASURING POSITIVE, NEGATIVE AND DIFFERENTIAL PRESSURE OF AIR AND NON-CORROSIVE GASES. AVAILABLE IN SILVER AND BLACK COLOR OPTIONS, IT IS SUITABLE FOR HVAC, AHU, CLEAN ROOM AND INDUSTRIAL PRESSURE MONITORING APPLICATIONS.

APPLICATIONS:

• AHU FILTER MONITORING.
• HEPA FILTER DIFFERENTIAL PRESSURE MONITORING.
• HVAC SYSTEM PRESSURE MEASUREMENT
• CLEAN ROOM PRESSURE MONITORING
• DUCT STATIC PRESSURE MEASUREMENT
• FAN PRESSURE MONITORING
• BLOWER PRESSURE & VACUUM MONITORING
• AIR HANDLING UNIT MONITORING
• PHARMACEUTICAL HVAC SYSTEMS
• LABORATORY VENTILATION SYSTEMS
• BUILDING & ROOM PRESSURE MONITORING
• AIR VELOCITY MEASUREMENT WITH PITOT TUBE

GEMTECH DIFFERENTIAL PRESSURE GAUGE IS AVAILABLE IN MULTIPLE PRESSURE RANGES INCLUDING PASCAL, MMWC, KPA, INCH, CM , MBAR AND OTHER CUSTOMIZED RANGES, MAKING IT SUITABLE FOR A WIDE RANGE OF INDUSTRIAL AND HVAC APPLICATIONS.

SPECIFICATION

Ambient Temperature – -21 ~140 -6 ~60
Rated Pressure -20 inHg~30 inHg (-68~103KPa)
Overpressure – Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa)
Process Connections – 1/8″ female NPT duplicate high and low pressure taps – one pair side and one pair back
Housing – Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 Hour Salt Spray Corrosion Test
Accuracy – ±2% of full span at 70 (21 (±3% on -0, and ±4% on -00)
Range -20 inHg~38 inHg (-68KPa~130KPa)(Special Specification also can be ordered.)

GEMTECH By Model Number Popularity

FILTER BY
Range – MM Of Water

Model	Description
G2000-100MM	GEMTECH DIFFERENTIAL PRESSURE GAUGE,Range 0-100 MM W.C., Minor Divisions 2.0.
G2000-10MM	GEMTECH DIFFERENTIAL PRESSURE GAUGE,Range 0-10 MM W.C.,Minor Divisions .20,Calibrated For Vertical Scale Position.
G2000-150MM	GEMTECH DIFFERENTIAL PRESSURE GAUGE,Range 0-150 MM W.C.
G2000-15MM	GEMTECH DIFFERENTIAL PRESSURE GAUGE,Range 0-15 MM W.C.
G2000-200MM	GEMTECH DIFFERENTIAL PRESSURE GAUGE,Range 0-200 MM W.C.
G2000-250MM	GEMTECH DIFFERENTIAL PRESSURE GAUGE,Range 0-250 MM W.C.
G2000-25MM	GEMTECH DIFFERENTIAL PRESSURE GAUGE,Range 0-25 MM W.C. Minor Divisions .50.
G2000-300MM	GEMTECH DIFFERENTIAL PRESSURE GAUGE,Range 0-300 MM W.C.
G2000-50MM	GEMTECH DIFFERENTIAL PRESSURE GAUGE,Range 0-50 MM W.C., Minor Divisions 1.0.
G2000-6MM	GEMTECH DIFFERENTIAL PRESSURE GAUGE,Range 0-6 MM W.C., Minor Divisions .20, Calibrated For Vertical Scale Position.
G2000-80MM	GEMTECH DIFFERENTIAL PRESSURE GAUGE,Range 0-80 MM W.C., Minor Divisions 2.0.

Additional Information:

Item Code: GEMTECH DIFFERENTIAL PRESSURE GAUGE – SILVER AND BLACK
WhatsApp No.9871034100,9868958924,9650264867,9716640145,8368866030,8368801023
www.envirotechindia.co.in
www.envirotechdelhi.in
www.envirotechdelhi.net
www.envirotechindia.info
www.envirotechdelhi.info
www.envirotechindia.net
www.envirotechdelhi.co.in

GEMTECH DIFFERENTIAL PRESSURE GAUGE SPOTTED ON A COFFEE ROASTER

GEMTECH DIFFERENTIAL PRESSURE GAUGE SPOTTED ON A COFFEE ROASTER

A GEMTECH DIFFERENTIAL PRESSURE GAUGE on a Coffee Roaster is Used to Measure and Monitor The Static Pressure and Airflow Inside The Roasting Drum. It Helps Maintain Roasting Consistency, Prevent Drum Blockages, And Ensure Safe Venting.

Here is What That Gauge is Specifically Doing On The Roaster:

1. Measuring Airflow and Vacuum (Draft)Most Drum Roasters Use An Exhaust Fan to Draw Hot Air And Chaff Away From The Beans, Creating a Negative Pressure (Vacuum) Inside The Drum. The GEMTECH DIFFERENTIAL PRESSURE GAUGE Connects Via Silicone Tubing To a Port in The Neck of The Roaster to Read This Negative Pressure in Unit like MM H₂O or Pascals (Pa).

2. Preventing Clogging and Drift As You Roast, Chaff, Oils, And Particulate Matter Build up in The Exhaust Piping And Cyclone. This Buildup Creates Airflow Resistance.

The Problem: If Airflow Resistance Increases, Less Heat is Transferred To The Coffee Beans And The Roast Profile Is Compromised.
The Gauge: By Tracking The Pressure Differential, You Know Exactly When Your Airflow is Dropping So You Can Clean The Exhaust.

3. Profile Reproduction Consistent Air Flow Equals Consistent Roasting. Instead of Blindly Quessing The Exhaust Fan’s Setting, The Pressure Gauge Provides Hard, Quantifiable Data. If a Past Roast Was Exceptional, You Can Adjust The Fan Damper Until The Pressure Gauge Reads The Exact Target Differential For That Specific Recipe.

Typical SpecificationsIf The Roaster is Utilizing a GEMTECH DIFFERENTIAL PRESSURE GAUGE (Likely From The Series G2000), it Operates Via a Magnetic Helix Mechanism That Functions Without Wheel Gears, Making It Highly Resistant To Vibration.

Common Range: Typically 0 to 25 MM H₂O or 0 to 50 MM H₂O For Standard Commercial And Craft Roasters.
Display: Usually a Large 4-Inch Analog Dial Featuring a Movable Limit Pointer Used as a Visual Bookmark.

APPLICATIONS:

FILTER MONITORING
AHU FILTER MONITORING
HEPA FILTER MONITORING
CLEAN ROOM PRESSURE
DUCT STATIC PRESSURE
FAN PRESSURE, BLOWER PRESSURE
AIR VELOCITY WITH PITOT TUBE
HVAC SYSTEMS
PHARMACEUTICAL INDUSTRIES
HOSPITALS
POWER PLANTS
CEMENT PLANTS
STEEL PLANTS
FERTILIZER PLANTS AND TEXTILE INDUSTRIES.

KEY FEATURES:

• NO LIQUID FILLING REQUIRED
• MEASURES POSITIVE, NEGATIVE AND DIFFERENTIAL PRESSURE
• EASY INSTALLATION
• STABLE AND ACCURATE PRESSURE INDICATION
• ROBUST INDUSTRIAL CONSTRUCTION
• MULTIPLE PRESSURE RANGES AVAILABLE
• SUITABLE FOR FILTER AND HVAC PRESSURE MONITORING
