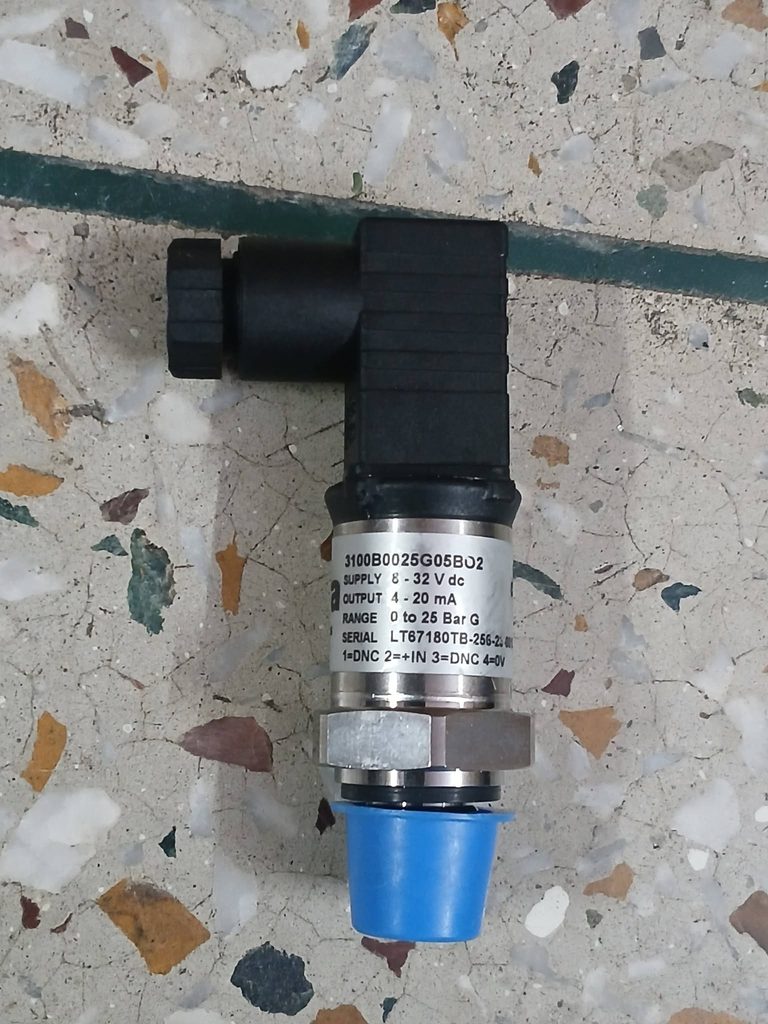

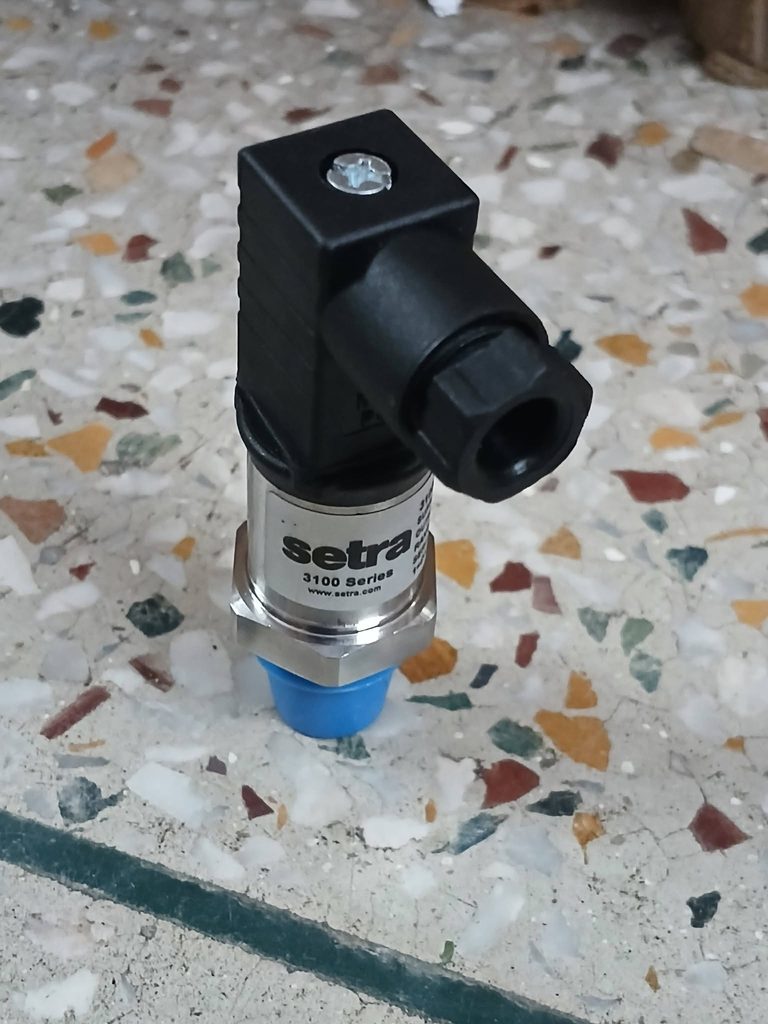

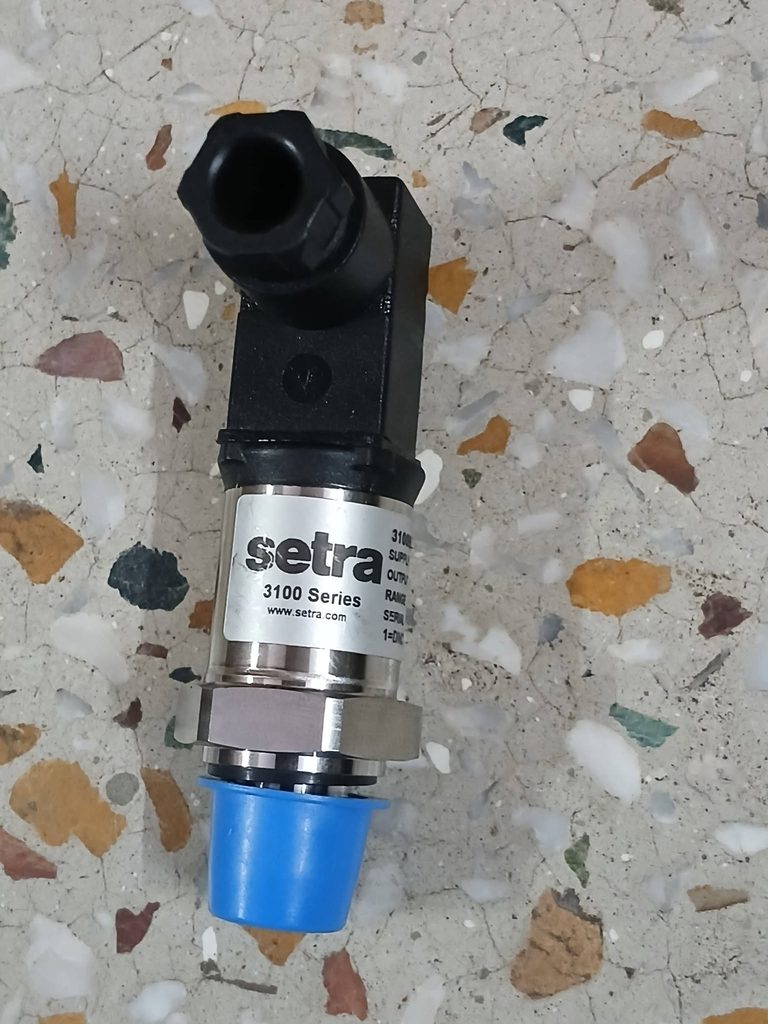

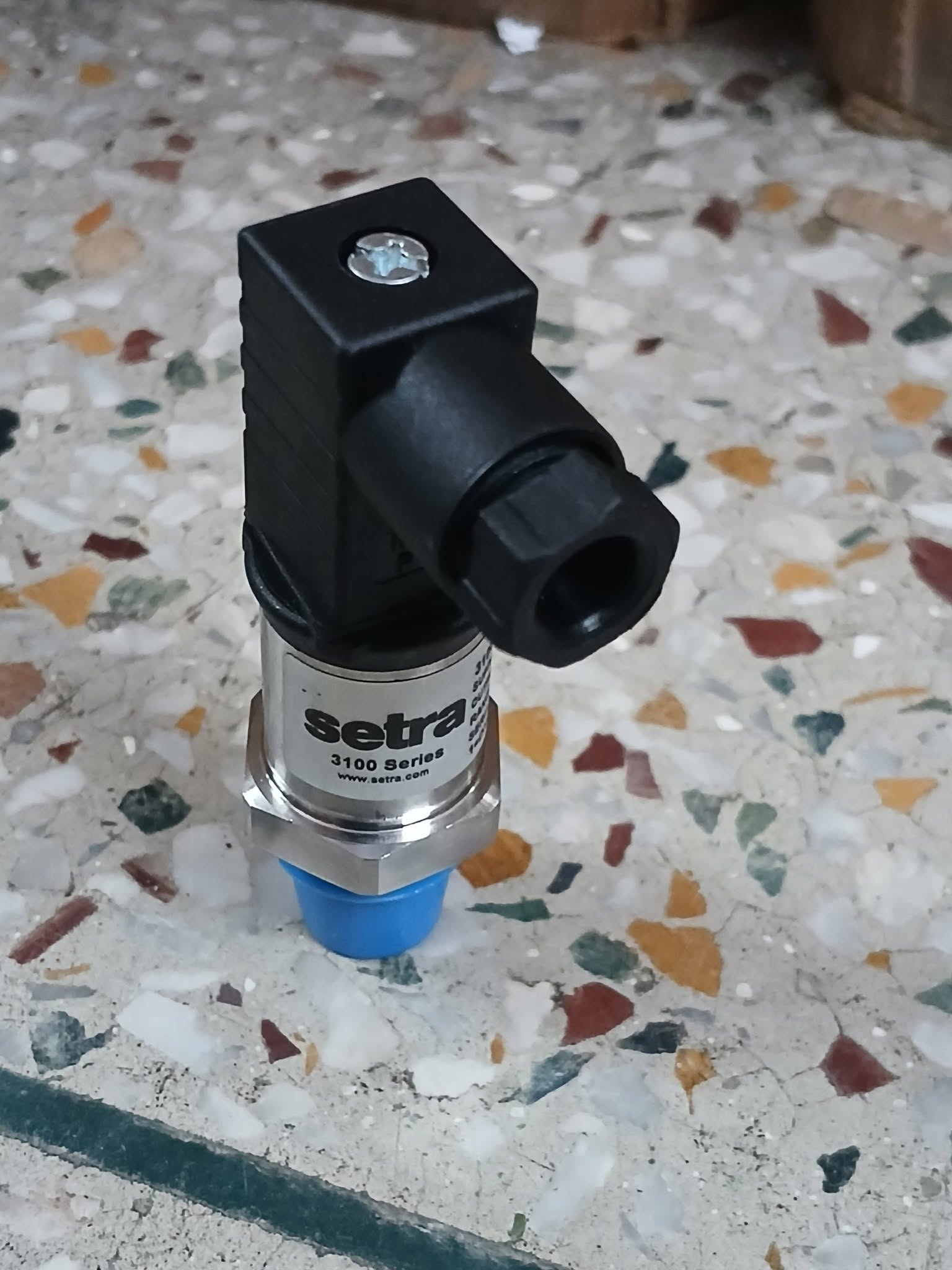

The SETRA 3100 Series Pressure Transmitter is Designed For Industrial Pressure Measurement And Monitoring Applications.It Is Suitable For Use In Industrial Automation,Hydraulic Systems,Pneumatic Equipment And Process Control Systems.Its Compact Design Allows Easy Installation In a Wide Range Of Industrial Environments Technical Data
Brand: SETRA
MANUFACTURER: SETRA
Series: 3100
Part Number: 3100B0025G05BO2
Pressure Range: 0 to 25 Bar
Pressure Type: Gauge Pressure
Measurement: Pressure
Supply: 8-32 VDC
Output Signal: 4…20 MA
Accuracy: 0.25%
Pressure Connection: 1/4″ NPT 304 SS.
Response Time: Model Dependent
MADE IN : USA
Product Features
Compact And Robust Industrial Design
Reliable Pressure Measurement
Suitable For Continuous Pressure Monitoring
Designed For Industrial Applications
Easy Integration With Compatible Control Systems
Suitable For Automation And Process Monitoring
Designed For Long-Term Industrial Operation
Field of Application
Industrial Automation Systems
Hydraulic Pressure Monitoring
Pneumatic Equipment
Air Compressors
Pumping Systems
HVAC Systems
Industrial Machinery
Process Control Systems
Manufacturing Plants
Pressure Monitoring Equipment
Ambient Condition
Operating Temperature: −40°C to +125°C (Configuration Dependent)

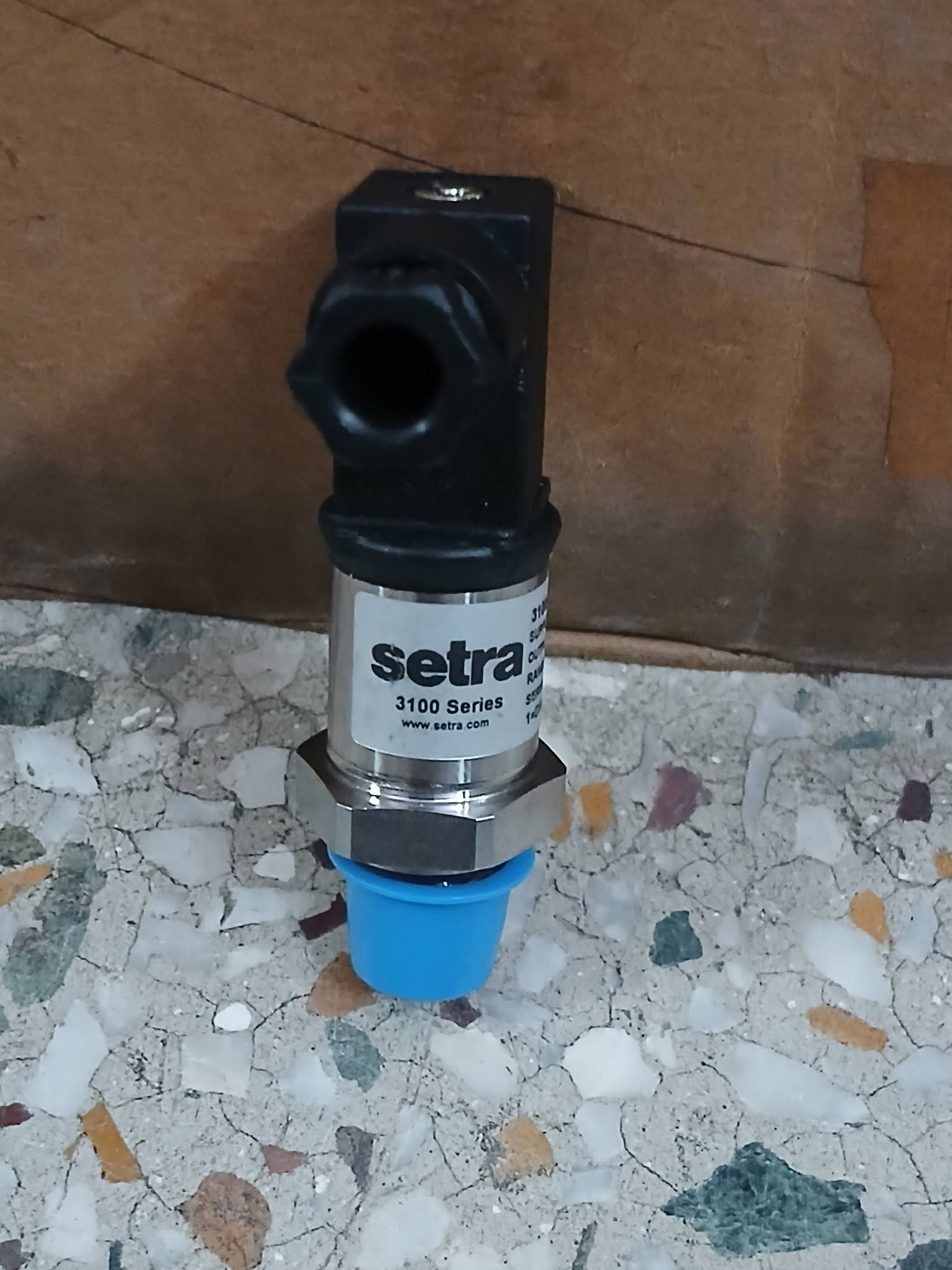

SETRA Model 3100 Is a Compact OEM Industrial Pressure Transmitter Designed For Accurate And Reliable Measurement of Gauge Pressure.Part No.3100B0007G05BO2 is Specified For a 0 to 7 Bar Pressure Range.The Model 3100 Uses Sputtered Thin-Film Sensing Technology And Rugged Welded Stainless-Steel Construction For Demanding Industrial Applications.
Technical Data
Model:SETRA 3100
Part No:3100B0007G05BO2
Pressure Range:0 to 7 Bar
Supply:8-32 VDC
OUTPUT:4…20 MA
CONNECTION:1/4″ NPT 304 SS
Pressure Type:Gauge
Accuracy:±0.25% FS
Response Time:1 ms
Enclosure Protection:IP67
Wetted Parts:17-4PH SS Diaphragm,304 SS Fittings
Operating/Storage Temperature:-40°C to +125°C
Compensated Temperature Range:-40°C to +125°C
Long-Term Stability:±0.2% FS For Ranges Below 60 Bar
Construction:All-Welded SS
Weight:Approximately 35 g
Product Features
High Accuracy And Repeatability
Sputtered Thin-Film Sensing Technology
Compact Design,Less Than 1 Inch Diameter
Rugged SS Construction
IP67 Environmental Protection
Excellent Vibration And Shock Resistance
Reverse Wiring Protection
Fast 1 ms Response Time
Suitable for OEM And Industrial Equipment
Field of Application
Hydraulic Systems
Industrial Machinery
Booster Pump Systems
Water And Irrigation Systems
Process Equipment
Compressors
HVAC And Industrial Automation
Power Generation Equipment
Mobile And Off-Highway Machinery
Pressure Monitoring And Control Systems
Ambient Condition
The Transmitter is Designed For Operation And Storage From-40°C to +125°C.Its IP67 Enclosure Provides Protection Against Dust And Temporary Water Exposure When Correctly Installed Material
The Pressure Sensing Diaphragm is 17-4PH SS,With 304 SS Fittings.The All-Welded SS Construction Provides Durability For Industrial Environments Electrical Data
The Model 3100 Family is Available With Multiple Electrical Output Configurations,Including 4–20 mA,1–6 VDC,1–5 VDC,0.5–4.5 VDC,0–5 VDC and 0–10 VDC,Depending On The Configured Part Number.The Exact Electrical Output And Connection Should Be Verified Against The Complete Ordering Code Before Installation.For 0–7 Bar versions,Setra Specifies That 0–10 V Output is Not Available Below 7 Bar Installation Guide
Verify The Pressure Range,Output And Pressure Connection Before Installation
Install The Transmitter Using The Correct Compatible Pressure Fitting
Do Not Exceed The Rated Pressure Range
Connect The Electrical Wiring According To The Applicable Setra Wiring Diagram
Protect The Cable/Connector From Excessive Moisture,Mechanical Damage And Contamination
Check For Leakage And Verify The Output Signal After Installation
Approval
Model 3100 is CE And UL Approved and RoHS Compliant,With IP67 protection Accessories
SETRA 3100B0006C05BO2 is a Pressure Transmitter Designed For Accurate And Reliable Pressure Measurement In Industrial Applications.It Is Suitable For Monitoring Pressure In Process Equipment,Machinery,HVAC Systems And Other Industrial Installations Where Dependable Pressure Measurement Is Required. Technical Data
Brand: SETRA
Model / Part No.: 3100B0006C05BO2
Pressure Range: -1 to 6 Bar
Pressure Type: Gauge / Vacuum to Positive Pressure
Output: 4…20 MA
Electrical Supply: 8-32 VDC
Pressure Connection: 1/4″ NPT 304 SS.
Application: Industrial Pressure Measurement
Product Features
Accurate Pressure Measurement
Reliable Industrial Construction
Suitable For Continuous Pressure Monitoring
Compact Transmitter Design
Easy Installation And Maintenance
Suitable For OEM And Industrial Applications
Wide Range Of Pressure Monitoring Applications
Field of Application
HVAC and Air Conditioning Systems
AHU and Ventilation Systems
Industrial Machinery
Process Equipment
Pumps and Compressors
Pneumatic Systems
Manufacturing Plants
Filtration and Air Handling Systems
Industrial Automation
Pressure Monitoring Systems
Ambient Condition
The Transmitter Should Be Installed And Operated Within The Temperature And Environmental Limits Specified For The Exact SETRA Configuration. Avoid Installation In Locations Exposed To Excessive Vibration,Corrosive Chemicals,Moisture Or Temperatures Outside The Manufacturer’s Specified Limits. Material
Construction And Wetted Materials Are According To The Original SETRA 3100 Series Configuration Selected For The Part Number. Electrical Data
Electrical Supply And Output Signal Are Configuration Dependent.Verify The Transmitter Nameplate/Datasheet Before Electrical Connection. Use a Suitable Regulated Power Supply And Correct Wiring Polarity. Installation Guide
Confirm The Pressure Range And Process Connection.
Install The Transmitter Securely On The Pressure Port.
Use Suitable Sealing Material Where Required.
Connect The Electrical Wiring According To The Transmitter Wiring Configuration.
Ensure The Applied Pressure Remains Within The Specified Range.
Check For Leakage And Verify The Output Signal After Installation.
Approval
Approvals And Certifications Are Configuration Dependent. Please Verify The Original SETRA Documentation/Nameplate For The Exact 3100B0006C05BO2 Model. Accessories
Compatible Pressure Fittings
Connection Adapters
Sealing Accessories
Electrical Connectors
Pressure Tubing And Installation Accessories
For Industrial Pressure Measurement – SETRA 3100B0006C05BO2, Range -1 to 6 Bar.
Setra Model 3100B1800S2TB is a High-Pressure OEM Industrial Pressure Transmitter Designed For Accurate And Reliable Pressure Measurement In Hydraulic,Industrial And Process Applications.It Uses Sputtered Thin-Film Sensing Technology With Rugged Stainless-Steel Construction.The Specified Model Provides a 0–1800 Bar Pressure Range With 4–20 mA Analogue Output
Technical Data
Model: 3100B1800S2TB
Pressure Range: 0–1800 Bar
Accuracy: ±0.25% Full Scale
Output: 4–20 mA
Supply Voltage: 8–30 VDC
Pressure Connection: G 1/4-18 NPT Male
Electrical Connection: DIN 43650 Form C
Enclosure: IP67
Response Time: Approximately 1 ms
Operating/Compensated Temperature: -40°C to +125°C
Product Features
High-Pressure Measurement Up To 1800 Bar
±0.25% FS Accuracy
Sputtered Thin-Film Sensing Element
4–20 mA Industrial Output
2-Wire Configuration
All-Welded Stainless-Steel Construction
IP67 Environmental Protection
Reverse-Wiring Protection
High Vibration Resistance
Compact OEM Design
RoHS Compliant
Field Of Application
Hydraulic Systems,Hydraulic Power Units,High-Pressure Pumps, Compressors,Industrial Machinery,Pressure Testing Equipment,Process Monitoring,Power Generation Equipment,Irrigation Systems,OEM Machinery,Industrial Automation And High-Pressure Process Applications.
Ambient Condition
Operating And Storage Temperature: Approximately -40°C to +125°C.The IP67 Enclosure Provides Protection Against Dust And Water Ingress When Properly Installed.
Material
Wetted Components Include 17-4PH Stainless-Steel Diaphragm And 304 Stainless-Steel Fittings.The Transmitter Features Rugged All-Welded Stainless-Steel Construction.
Electrical Data
Output: 4–20 mA;
Supply: 8–30 VDC;
Circuit: 2-Wire. Maximum Loop Resistance Is Dependent On Supply Voltage. Reverse-Wiring Protection Is Provided.
Installation Guide
Verify The Pressure Range, Pressure Port And Electrical Configuration Before Installation.Mount The Transmitter Securely And Avoid Excessive Mechanical Force.Connect The 4–20 mA Loop Using a Suitable 8–30 VDC Supply.Check All Connections For Leakage And Verify The Output Signal Before Commissioning. Follow The Applicable Setra Installation Instructions.
Approval
The Model 3100 Series is Available With CE/UL Approvals And RoHS Compliance Depending On The Exact Configuration. Confirm The Approval Marking For The Supplied Part Number Before Installation.
Accessories
Suitable Accessories May Include Mating Electrical Connectors,Pressure Adapters,Seals,Cables,Mounting Hardware And Process-Connection Accessories.Accessories Should Be Selected According To The Exact Transmitter Configuration.
Setra Model 3100B0700S01B is a High-Pressure OEM Pressure Transmitter Designed For Accurate And Reliable Measurement Of Hydraulic And Industrial Pressure.It Uses Sputtered Thin-Film Sensing Technology With Rugged Stainless-Steel Construction And IP67 Environmental Protection.The 0–700 Bar Range Makes It Suitable For Demanding High-Pressure Applications. Technical Data
Model: 3100B0700S01B
Pressure Range: 0–700 Bar
Output: 4–20 mA
Supply Voltage: 8–30 VDC
Accuracy: ±0.25% Full Scale
Pressure Connection: G 1/4-18 NPT Male
Electrical Connection: DIN 43650 Form C
Enclosure Rating: IP67
Operating/Storage Temperature: -40°C to +125°C
Response Time: Approx. 1 ms
Wetted Parts: Stainless Steel
Construction: All-welded stainless steel
Approval: cURus
RoHS Compliant
Product Features
High-Pressure Measurement Up to 700 Bar
±0.25% FS Accuracy
Sputtered Thin-Film Sensing Element
Rugged Stainless-Steel Construction
IP67 Protection Against Moisture And Dust
Fast Response Time
Wide Operating Temperature Range
Reverse Wiring Protection
Suitable For OEM And Industrial Equipment
Designed For High Shock And Vibration Environments
Field Of Application
Hydraulic Pressure Systems
Hydraulic Machinery
Industrial OEM Equipment
Pumps and Variable-Speed Pumps
Compressors
Refrigeration Systems
Industrial Machinery
Irrigation Pressure Systems
Process Control Equipment
High-Pressure Fluid Systems
HVAC/R Equipment
Ambient Condition
The Transmitter is Designed For Demanding Industrial Environments. Operating And Storage Temperature is Approximately -40°C to +125°C. IP67 Enclosure Protection Provides Resistance Against Dust And Temporary Water Exposure Material
The Model 3100 Uses An All-Welded Stainless-Steel Construction.Wetted Components Include Stainless-Steel Materials Suitable For Compatible Industrial Pressure Media Electrical Data
Output: 4–20 mA
Supply: 8–30 VDC
Circuit: 2-wire
Electrical Connection: DIN 43650 Form C
Reverse Wiring Protection Is Provided
Installation Guide
Install The Transmitter On a Compatible Pressure Port Using The Correct Sealing Method And Suitable Tools.Ensure That The Pressure Applied Remains Within The Rated 0–700 Bar Range.Connect The Power Supply And Signal Wiring According To The Specified Electrical Configuration.For Outdoor Or Electrically Noisy Installations,Use Appropriate Shielded Wiring And Grounding Practices.Avoid Excessive Mechanical Stress On The Transmitter And Wiring Approval
cURus Approved And RoHS Compliant.Always Verify The Exact Certification Requirements For The Intended Installation Before Commissioning Accessories
Compatible Accessories May Include Pressure Fittings,Sealing Components, Electrical Connectors,Cables,Mounting Hardware and Signal/PLC Interface Equipment.Select Accessories According To The Actual Pressure Connection,Electrical Connection And Application Requirements
Setra 3100B0600S01B is a High-Pressure Industrial Pressure Transmitter Designed For accurate pressure measurement up to 0–600 Bar. It is suitable for industrial, OEM and high-pressure applications where reliable pressure monitoring is required. Technical Data
Brand: Setra
Model: 3100B0600S01B
Pressure Range: 0–600 Bar
Accuracy: ±0.25% FS
Output: 4–20 mA
Supply Voltage: 8–30 VDC
Pressure Connection: 1/4″ NPT
Protection: IP67
Sensor Technology: Sputtered Thin Film
Construction: Stainless Steel
Temperature Range: -40°C to +125°C
Product Features
0–600 Bar High-Pressure Measurement
High Accuracy And Stability
Rugged Industrial Construction
Stainless-Steel Wetted Parts
Fast Response
IP67 Protection
Suitable For OEM Equipment
Reliable Operation in Demanding Environments
Compact And Durable Design
Field Of Application
Used in Hydraulic Systems,High-Pressure Pumps,Compressors,Industrial Machinery,Process Control,Pressure Testing Equipment,Automation Systems,OEM Machines,Energy Equipment And Other High-Pressure Industrial Applications. Ambient Condition
Designed For Demanding Industrial Environments.Operating Temperature is Approximately -40°C to +125°C. IP67 Protection Helps Protect The Transmitter Against Dust And Water Exposure. Material
Stainless-Steel Construction With Corrosion-Resistant Wetted Components. The Robust Construction Provides Durability For Industrial Pressure Measurement Applications. Electrical Data
Output Signal: 4–20 mA
Supply: 8–30 VDC
2-Wire Electrical Configuration
Reverse Polarity Protection
Fast Response
Installation Guide
Install The Transmitter on a Compatible Pressure Port Using The Correct Sealing Method.Check That The Process Pressure Does Not Exceed The Specified Range.Connect the 4–20 mA Loop According To The Wiring Configuration And Verify The Supply Voltage Before Operation. Avoid Excessive Vibration, Shock And Pressure Spikes. Approval
Suitable For Industrial And OEM Applications.Certification And Approval Depend On The Exact Transmitter Configuration. Verify The Supplied Unit’s Certification Before Installation. Accessories
Pressure Fittings,Adapters,Electrical Connectors,Cables,Mounting Accessories And Calibration/Test Equipment Can Be Used According To Application And Installation Requirements.
SETRA Model 3100R0060G08B is a Compact Industrial Pressure Transmitter Designed For Accurate and Reliable Measurement Of Pressure up to 0–60 Bar.It uses sputtered thin-film sensing technology with stainless-steel wetted construction and is suitable for OEM,Industrial process Monitoring,Hydraulic,Refrigeration and Compressor Applications. The Transmitter Provides a 0–5 VDC Output and Operates from an 8–30 VDC supply.Available Specifications list IP67 Enclosure Protection and DIN 43650 Form C Electrical Connection
Technical Data
Brand :SETRA
Model :3100R0060G08B
Pressure Range :0–60 Bar
Accuracy :0.25% Full Scale
Output Signal :0–5 VDC
Supply Voltage :8–30 VDC
Electrical Connection :DIN 43650 Form C
Pressure Connection :1/4-18 NPT Male
Enclosure Rating :IP67
Wetted Parts :Stainless Steel
Operating Temperature :-40 to +125°C
Approval :cURus
Product Features
0–60 Bar Pressure Measurement
High Accuracy And Stable Performance
0–5 VDC Analog Output
Wide 8–30 VDC Power Supply
Compact Construction For OEM Applications
Stainless-Steel Wetted Parts
IP67 Protection
DIN Electrical Connector
Suitable For Continuous Industrial Pressure Monitoring
RoHS-Compliant 3100 Series Platform
Field Of Application
Industrial Process Monitoring
Hydraulic Pressure Measurement
HVAC and Refrigeration Systems
Compressors
Variable Speed Pumps
Irrigation Systems
OEM Equipment
Industrial Machinery
Pressure Control Systems
General Gas and Liquid Pressure Measurement
Ambient Condition
The transmitter is Designed For Demanding Industrial Environments.The Listed Operating Temperature Range is Approximately -40°C to +125°C. IP67 Enclosure Protection Helps Protect The Transmitter Against Dust And Water Ingress When Correctly Installed
Material
Stainless-Steel Wetted Construction is Used For Durability And Compatibility With Suitable Industrial Pressure Media.Compact Industrial Housing Provides a Practical Solution For OEM And Process Applications
Electrical Data
Supply:8–30 VDC Output:0–5 VDC Electrical Connection:DIN 43650 Form C Enclosure Protection:IP67
Installation Guide
Install the transmitter on a compatible pressure port using the specified process connection. Ensure the pressure range and media compatibility are suitable for the application.Connect the DC supply and 0–5 VDC output according to the applicable wiring configuration. Avoid over-tightening the pressure connection and protect the electrical connector from incorrect wiring or mechanical damage
Approval
cURus approval is listed for this model.Verify the latest manufacturer documentation and certification requirements for the specific installation before commissioning.
Accessories
DIN Electrical Connector
Compatible Mounting/Sealing Components
Process Connection Accessories
Electrical Cable/Connector Accessories
Suitable For:Industrial Pressure Measurement,OEM Equipment,Hydraulic Systems,HVAC/R,Compressors,Pumps,Irrigation and Process Monitoring
SETRA Model 3100B0018G1GB is a Compact Industrial Pressure Transmitter Designed For Accurate And Reliable Measurement Of Gauge Pressure up to 0–18 Bar.The 3100 Series Uses Sputtered Thin-Film Sensing Technology And Stainless-Steel Wetted Construction For Dependable Performance in OEM And Industrial Applications.The Transmitter Provides a Standard 4–20 mA Output And Operates From An 8–30 VDC Supply.
Technical Data
Brand: SETRA
Model: 3100B0018G1GB
Pressure Range: 0–18 Bar
Pressure Type: Gauge
Output Signal: 4–20 mA
Supply Voltage: 8–30 VDC
Pressure Connection: 1/4″ NPT Male
Electrical Connection: DIN 43650 Form C
Enclosure Rating: IP67
Temperature Range: -40°F to 257°F
Sensing Technology: Sputtered Thin Film
Wetted Material: Stainless Steel
Approval: cURus
RoHS Compliant
Product Features
0–18 Bar Gauge Pressure Measurement
Stable 4–20 mA Industrial Output
Compact OEM Design
Stainless-Steel Wetted Parts
IP67 Enclosure Protection
Wide Operating Temperature Capability
Reliable Thin-Film Sensing Technology
Suitable For Space-Limited Installations
Designed for Long-Term Industrial Operation
Field Of Application
Suitable For Industrial Process Monitoring,Hydraulic Systems,Irrigation Equipment,HVAC And Compressors,Variable-Speed Pumps,Refrigeration Systems,OEM Machinery,Water Systems,Pneumatic Equipment And General Pressure Monitoring Applications.
Ambient Condition
The Transmitter is Designed For Industrial Environments With a Broad Operating Temperature Range.For Installation,Avoid Excessive Vibration, Direct Mechanical Impact,Moisture Ingress And Temperatures Outside The Specified Range.
Material
The Pressure-Sensing Wetted Components Are Stainless Steel.The Compact Construction is Designed For Industrial OEM Applications.
Electrical Data
Supply: 8–30 VDC
Output: 4–20 mA
Electrical Connection: DIN 43650 Form C
Protection: IP67
Installation Guide
Install The Transmitter Using The Specified 1/4″ NPT Pressure Connection. Apply Suitable Thread sealing where required. Ensure the pressure port is free from contamination. Connect the 8–30 VDC supply and 4–20 mA signal according to the applicable wiring configuration. Do not exceed the specified pressure or electrical limits.
Approval
cURus approval and RoHS Compliance Are Listed For This Model.
Accessories
Compatible Pressure Fittings
Thread Adapters
Electrical Mating Connector
Cable/Connection Accessories
Pressure Isolation Accessories
Mounting And Installation Accessories
Part No.: 3100B0018G1GB Range: 0–18 Bar | Output: 4–20 mA | Supply: 8–30 VDC
SETRA Model 3100T500PG1G9 is an Industrial OEM Pressure Transmitter Designed for reliable and Accurate Gauge Pressure Measurement up to 0–500 PSI.It uses Sputtered Thin-Film Sensing Technology With Rugged stainless-steel construction for demanding industrial applications.
Technical Data
Brand: SETRA
Series: Model 3100
Part No.: 3100T500PG1G9
Pressure Range: 0–500 PSI
Pressure Type: Gauge
Accuracy: ±0.25% FS
Supply Voltage: 8–30 VDC
Output: 0.5–4.5 VDC
Pressure Type: Gauge
Process Connection: 1/4 SAE Female
Sensor Technology: Sputtered Thin Film
Construction: Stainless Steel
Protection: IP67
Response Time: 1 ms
Operating Temperature: -40°C to +125°C
Compensated Temperature: -40°C to +125°C
Product Features
High Accuracy And Repeatability
Compact OEM Design
Sputtered Thin-film Sensing Element
All-Welded Stainless-Steel Construction
IP67 Protection
Fast Response Time
Excellent Vibration Resistance
Long-Term Stability
Suitable For Continuous Industrial Operation
Field of Application
SETRA 3100 Pressure Transmitters are Suitable For Industrial OEM Machinery,HVAC Systems,Refrigeration Equipment,Hydraulic Systems, Compressors,Pumps,Pneumatic Systems,Process Equipment,Industrial Automation,Semiconductor Equipment And General Pressure Monitoring Applications.
Ambient Condition
Designed for Demanding Industrial Environments with an operating temperature range of -40°C to +125°C. IP67 protection provides resistance against dust and water ingress when properly installed.
Material
Wetted Diaphragm: 17-4 PH Stainless Steel
Fitting: 304 Stainless Steel
Construction: All-welded Stainless Steel
Electrical Data
Model 3100 is Available with Different Electrical output Configurations depending on the exact ordering code, including voltage and current outputs. Electrical supply and output wiring must be matched to the Exact SETRA Configuration.
Installation Guide
Install the transmitter on a suitable pressure connection and ensure the system is depressurized before installation.Use correct sealing and fitting practices. Connect electrical wiring according to the SETRA wiring diagram for the exact configuration. Apply the specified supply voltage and verify the output signal before commissioning.
Approval
SETRA Model 3100 is Designed for industrial Applications and is available with applicable compliance approvals depending on configuration, including RoHS and CE EMC compliance.
Accessories
Compatible electrical connectors, mating cables, process fittings, adapters, sealing components, pressure tubing, power supplies, signal cables, PLC interfaces and pressure indicators can be used according to the application.
SETRA Model 3100 Is a Compact,Heavy-Duty OEM Pressure Transmitter Designed For Accurate And Reliable Pressure Measurement in Demanding Industrial Applications.It Uses Sputtered Thin-Film Sensing Technology And Rugged All-Welded Stainless-Steel Construction.The Specified 3100B0035C1GB Configuration is Suitable For Compound/Negative-Pressure Measurement With a 4–20 mA Output. Technical Data
Suitable For Hydraulic Systems,Compressors,Pumps,Industrial Machinery, HVAC/R Equipment,Process-Control Systems,Automation,OEM Machinery, Vacuum/Compound Pressure Monitoring And Industrial Instrumentation. Ambient Condition
Operating And Storage Temperature: Approximately -40°C to +125°C. IP67 Protection Helps Protect The Transmitter Against Moisture And Humidity. Material
Diaphragm: 17-4PH Stainless Steel
Fittings: 304 Stainless Steel
Construction: All-Welded Stainless Steel
Electrical Data
Output: 4–20 mA
Circuit: 2-Wire
Supply: 8–30 VDC
Maximum Loop Resistance: (Supply Voltage − 8) × 50 Ω
Reverse-Wiring Protected
Installation Guide
Confirm The Pressure Range And Pressure-Port Configuration Before Installation.Mount The Transmitter Securely Without Excessive Mechanical Force.Connect The 4–20 mA Loop According To The Applicable Wiring Diagram And Use An Appropriate 8–30 VDC Supply.Check All Connections For Leakage And Verify The Output Signal Before Commissioning. Approval
The Model 3100 Series is CE and UL Approved,RoHS Compliant And IP67 Rated,Subject To The Exact Configuration. Accessories
Compatible Accessories May Include Mating Electrical Connectors,Pressure Adapters,Seals,Cables,Mounting Hardware And Process-Connection Accessories.The Exact Accessory Should Match The Transmitter Configuration.
